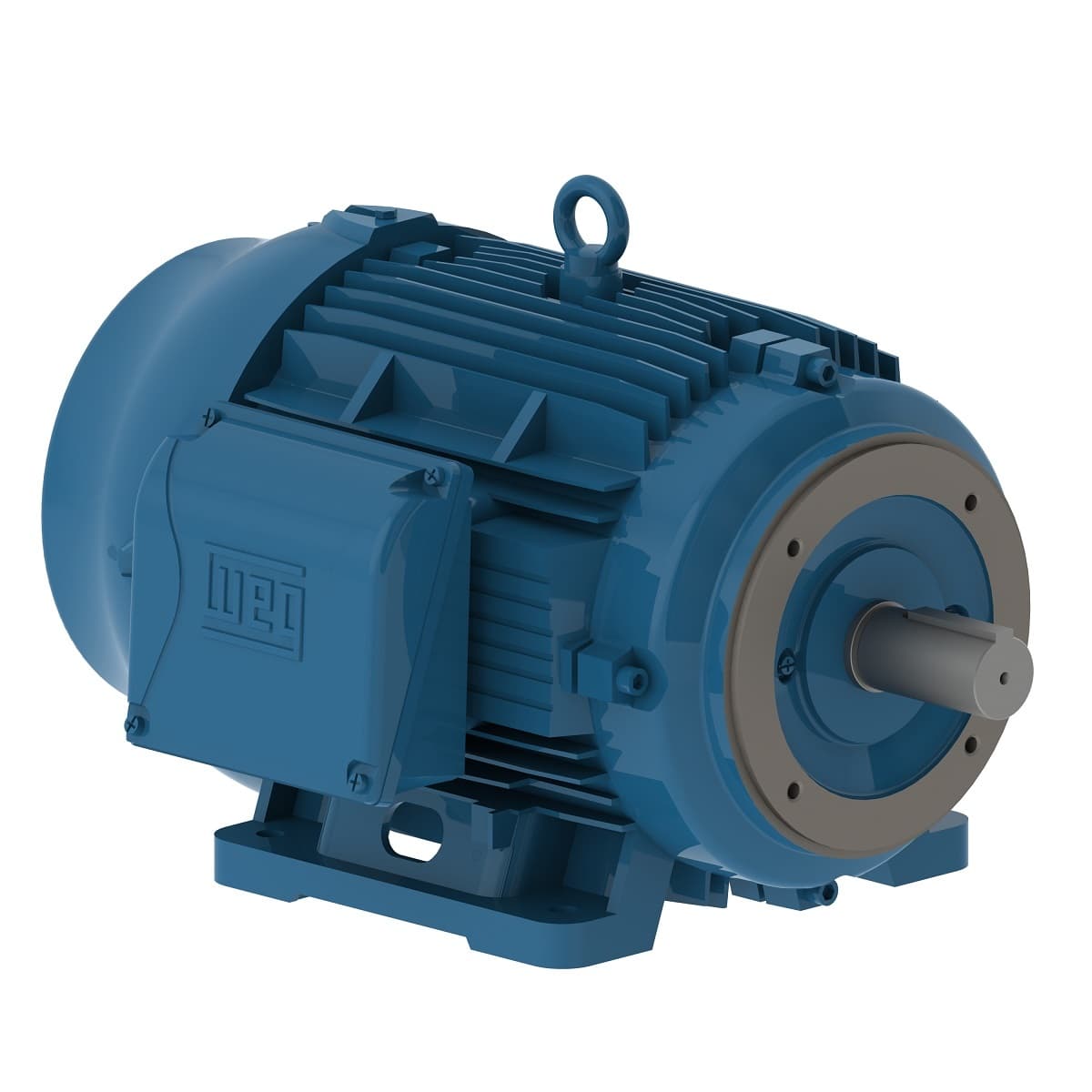

02536ET3E284TSC-W22 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 230/460 V
- Output Rating 25 HP
- Rated Speed 3545 rpm
- Flange Type C
- Flange C
- Terminal box¹ Left position
- Number of poles 2
- Synchronous speed 3600 rpm
- Standard NEMA MG-1
- Voltage 230/460//380 V
- Output rating 25 HP
- Approx. weight³ 383 lb
- Rotation¹ Both (CW and CCW)
- Noise level² 72.0 dB(A)
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Enclosure IC411 - TEFC
- Degree of Protection IP55
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Design B
- Moment of inertia (J) 2.69 sq.ft.lb
- Duty Cycle Cont.(S1)
- Locked rotor torque 200 %
- Service factor 1.25
- Insulation Class F
- Breakdown torque 250 %
- Rated torque 37.0 ft.lb
- Locked rotor time 30s (cold) 17s (hot)
- No load current 16.3/8.15 A
- Rated speed 3545 rpm
- LRC 6.3x(Code G)
- Rated voltage 230/460 V
- Frequency 60 Hz
- Frame 284/6TSC
- Rated current 57.5/28.8 A
- Slip 1.53 %
- Output 25 HP (18.5 kW)
- Number of Poles 2
- L. R. Amperes 363/181 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
