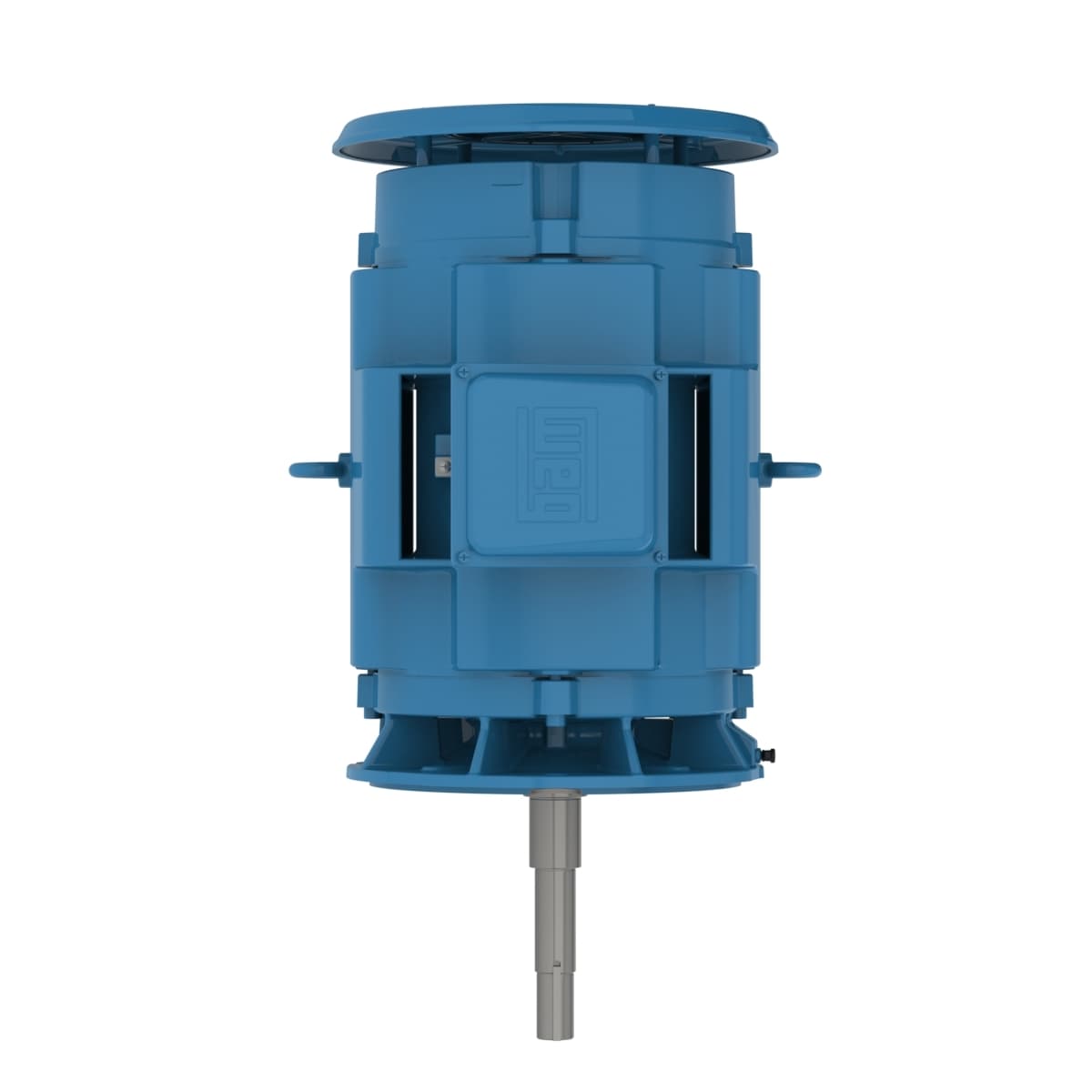

02536OT3V256JPV WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 200/400 V
- Output Rating 25 HP
- Rated Speed 3530 rpm
- Flange Type C
- Terminal box¹ Left position
- Standard NEMA MG-1
- Synchronous speed 3600 rpm
- Approx. weight³ 243 lb
- Output rating 25 HP
- Voltage 200/400 V
- Flange C
- Number of poles 2
- Noise level² 67.0 dB(A)
- Rotation¹ Both (CW and CCW)
- Duty Cycle Cont.(S1)
- Degree of Protection IP23
- Starting Method Direct On Line
- Mounting W-6
- Temperature rise 80 K
- Altitude 1000 m.a.s.l.
- Service factor 1.15
- Ambient temperature -20°C to +40°C
- Moment of inertia (J) 1.08 sq.ft.lb
- Design B
- Insulation Class F
- Enclosure IC01 - ODP
- Breakdown torque 260 %
- Locked rotor time 16s (cold) 9s (hot)
- Locked rotor torque 200 %
- Rated torque 37.2 ft.lb
- LRC 6.5x(Code G)
- No load current 25.3/12.7 A
- Rated voltage 200/400 V
- Frequency 60 Hz
- Frame 256JP
- Slip 1.94 %
- Rated speed 3530 rpm
- Rated current 68.5/34.3 A
- L. R. Amperes 446/223 A
- Number of Poles 2
- Output 25 HP (18.5 kW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
