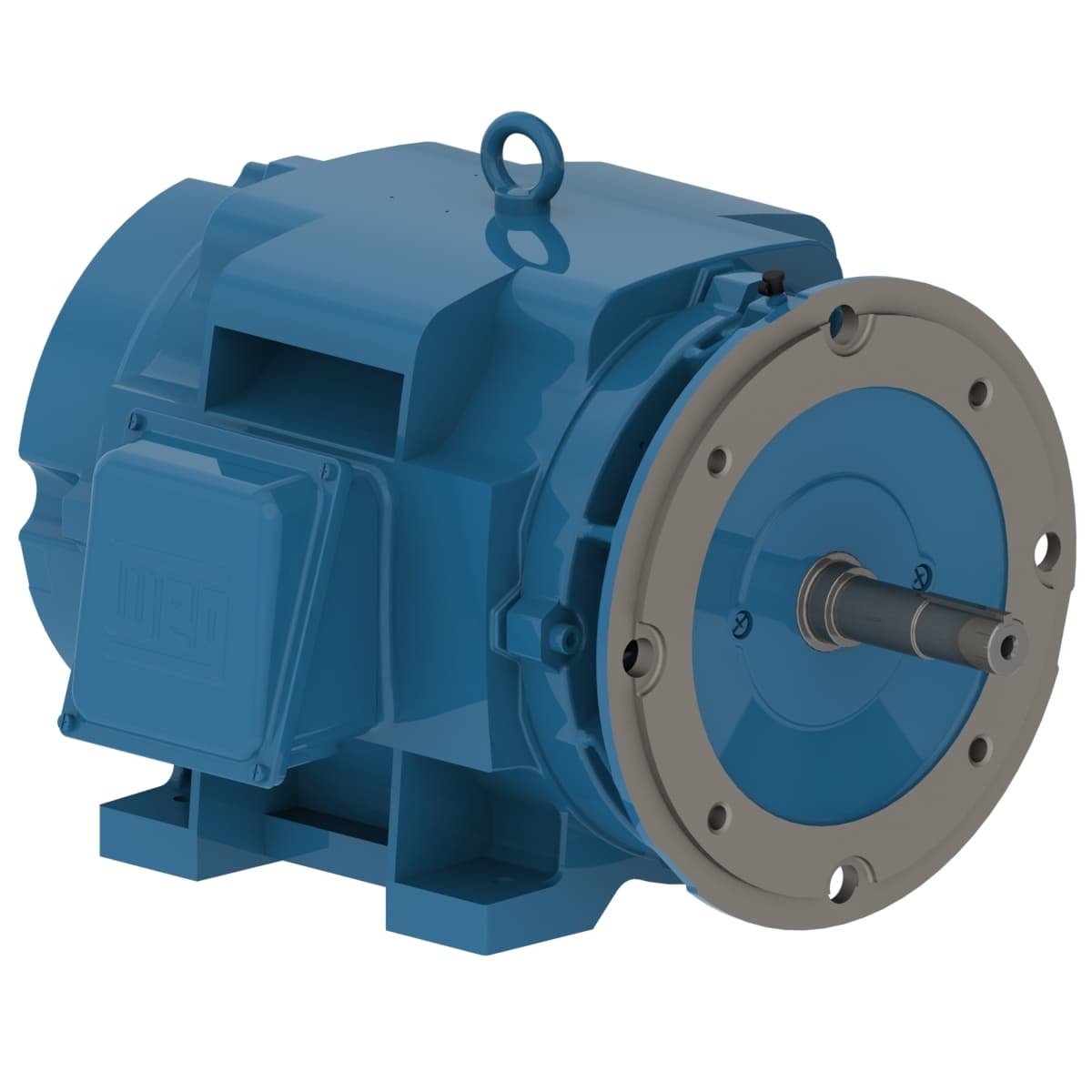

03036OT3V284JM WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 200/400 V
- Output Rating 30 HP
- Rated Speed 3550 rpm
- Flange Type C
- Terminal box¹ Left position
- Flange C
- Number of poles 2
- Output rating 30 HP
- Synchronous speed 3600 rpm
- Voltage 200/400 V
- Standard NEMA MG-1
- Approx. weight³ 347 lb
- Noise level² 72.0 dB(A)
- Mounting F-1
- Rotation¹ Both (CW and CCW)
- Altitude 1000 m.a.s.l.
- Ambient temperature -20°C to +40°C
- Enclosure IC01 - ODP
- Starting Method Direct On Line
- Temperature rise 80 K
- Degree of Protection IP23
- Duty Cycle Cont.(S1)
- Locked rotor time 18s (cold) 10s (hot)
- Moment of inertia (J) 1.89 sq.ft.lb
- Service factor 1.15
- Design B
- Breakdown torque 260 %
- Insulation Class F
- Locked rotor torque 180 %
- Rated torque 44.4 ft.lb
- No load current 29.7/14.8 A
- LRC 6.3x(Code G)
- Frequency 60 Hz
- Slip 1.39 %
- Rated speed 3550 rpm
- Number of Poles 2
- Rated current 80.5/40.2 A
- L. R. Amperes 507/254 A
- Rated voltage 200/400 V
- Output 30 HP (22 kW)
- Frame 284JM
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
