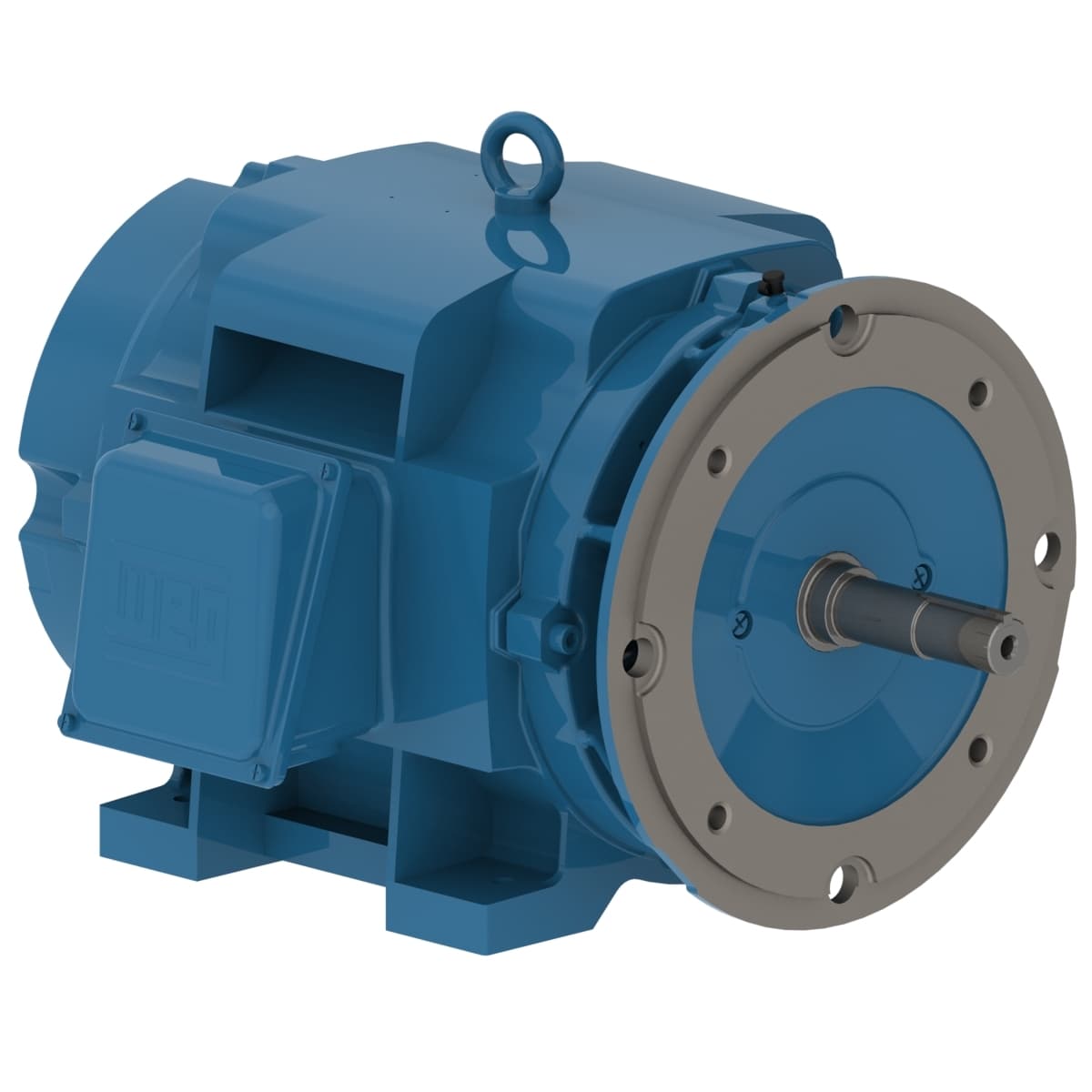

04018OT3H324JM WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 575 V
- Output Rating 40 HP
- Rated Speed 1775 rpm
- Flange Type C
- Terminal box¹ Left position
- Flange C
- Output rating 40 HP
- Synchronous speed 1800 rpm
- Voltage 575 V
- Number of poles 4
- Noise level² 64.0 dB(A)
- Approx. weight³ 484 lb
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
- Temperature rise 80 K
- Mounting F-1
- Enclosure IC01 - ODP
- Altitude 1000 m.a.s.l.
- Insulation Class F
- Degree of Protection IP23
- Duty Cycle Cont.(S1)
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Service factor 1.15
- LRC 6.2x(Code G)
- Locked rotor time 50s (cold) 28s (hot)
- Moment of inertia (J) 6.05 sq.ft.lb
- Rated torque 118 ft.lb
- Locked rotor torque 220 %
- Breakdown torque 229 %
- No load current 14.8 A
- Design B
- Slip 1.39 %
- Number of Poles 4
- Frequency 60 Hz
- Rated speed 1775 rpm
- L. R. Amperes 239 A
- Output 40 HP (30 kW)
- Rated voltage 575 V
- Rated current 38.6 A
- Frame 324JM
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
