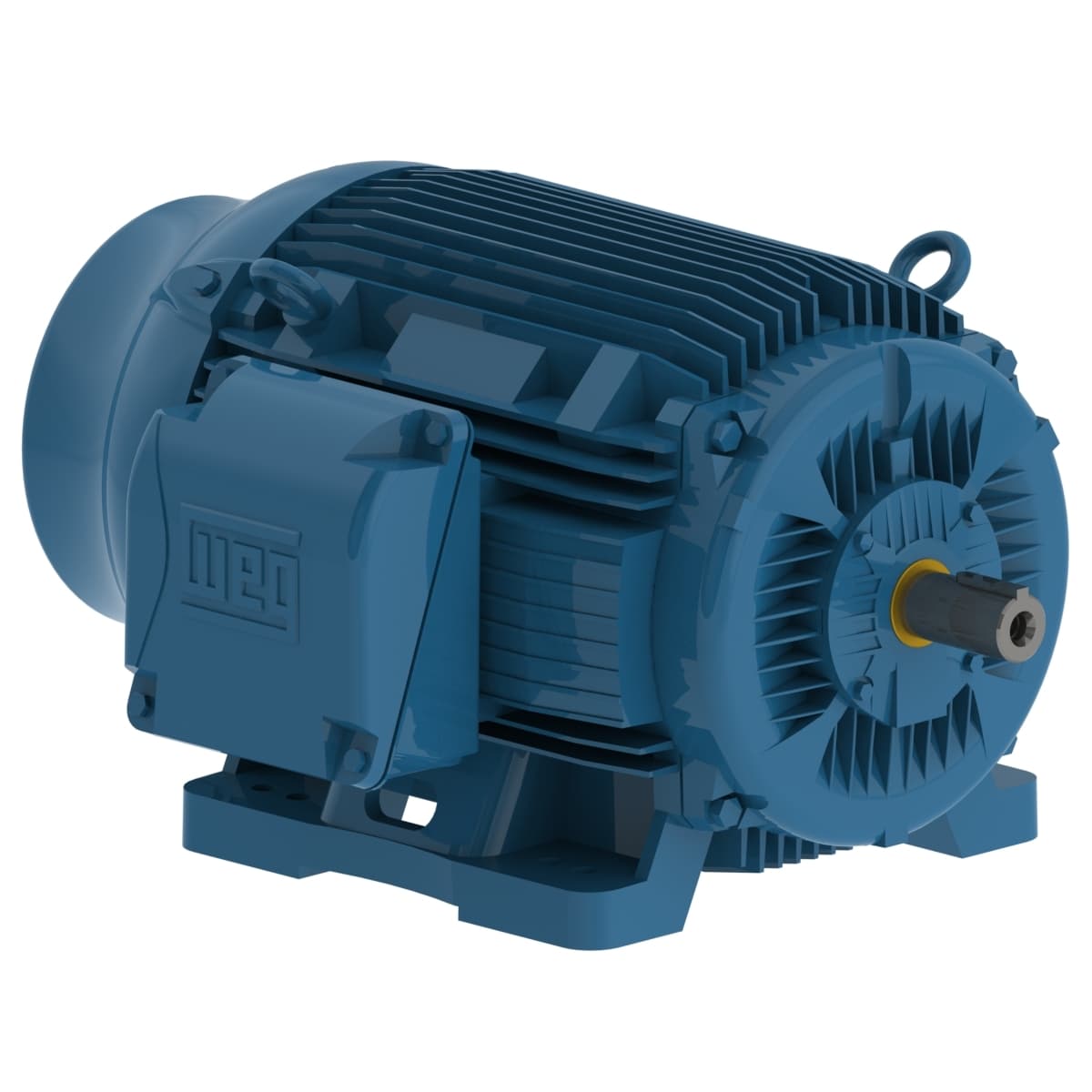

10009ST3HIE445T-W22 WEG AC Motors
Product Details
- Number of Poles 8 Pole
- Voltage 575 V
- Output Rating 100 HP
- Rated Speed 890 rpm
- Flange Type Without
- Rated current 102 A
- Rated torque 590 ft.lb
- Slip 1.11 %
- Insulation Class F
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Number of Poles 8
- Design B
- Degree of Protection IP56
- Number of poles 8
- Rated speed 890 rpm
- Locked rotor time 27s (cold) 15s (hot)
- Service factor 1.25
- Voltage 575 V
- Flange Without
- LRC 6.0x(Code G)
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated voltage 575 V
- No load current 44.8 A
- Starting Method Direct On Line
- Synchronous speed 900 rpm
- Frame 444/5T
- Breakdown torque 220 %
- Altitude 1000 m.a.s.l.
- Rotation¹ Both (CW and CCW)
- Output 100 HP (75 kW)
- Locked rotor torque 190 %
- Temperature rise 80 K
- Mounting F-1
- Frequency 60 Hz
- Moment of inertia (J) 87.3 sq.ft.lb
- Noise level² 63.0 dB(A)
- Output rating 100 HP
- L. R. Amperes 610 A
- Ambient temperature -20°C to +40°C
- Approx. weight³ 1762 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
