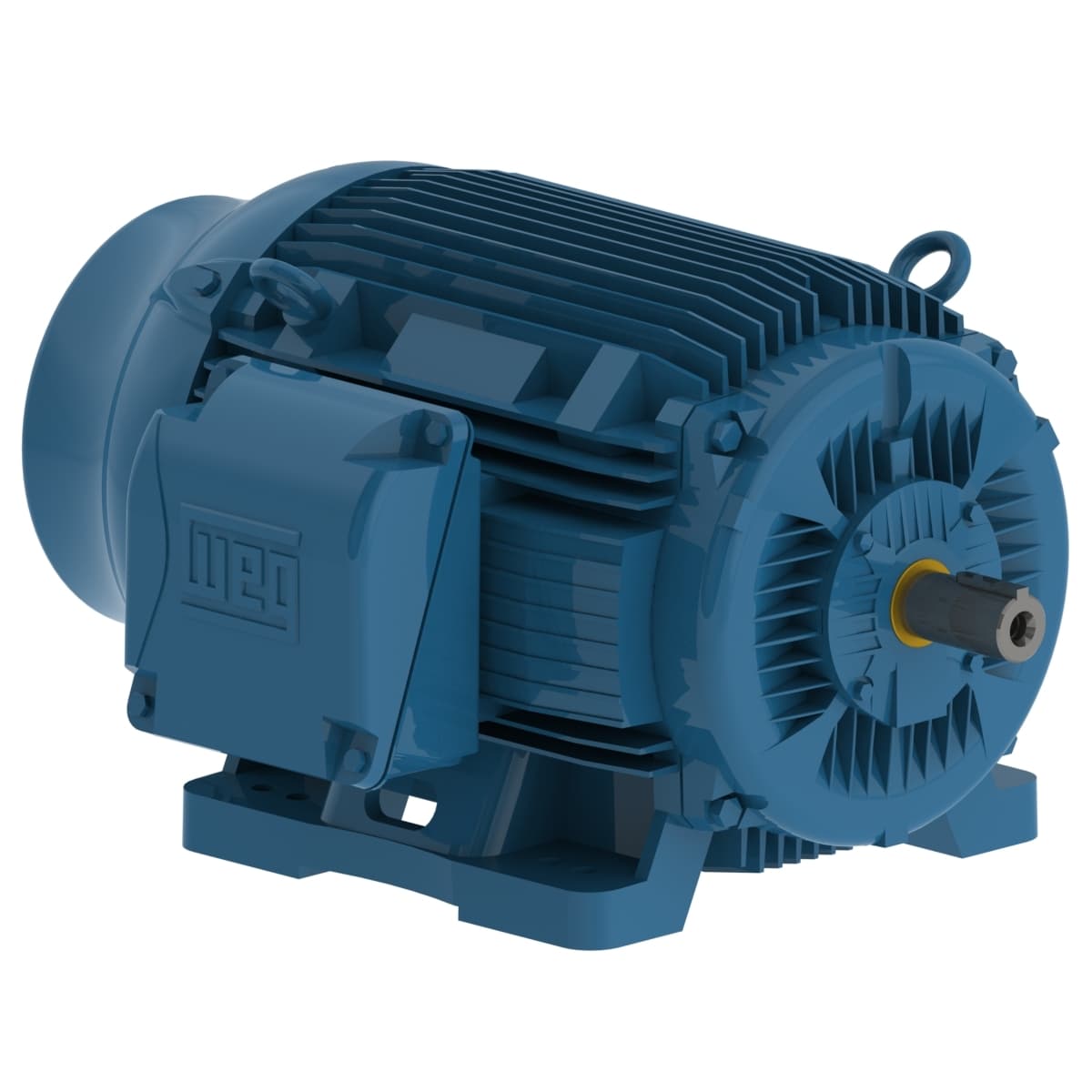

10009ST3QIE445T-W22 WEG AC Motors
Product Details
- Number of Poles 8 Pole
- Voltage 460 V
- Output Rating 100 HP
- Rated Speed 890 rpm
- Flange Type Without
- Frame 444/5T
- Slip 1.11 %
- LRC 6.0x(Code G)
- Locked rotor torque 190 %
- Duty Cycle Cont.(S1)
- Temperature rise 80 K
- Altitude 1000 m.a.s.l.
- Enclosure IC411 - TEFC
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Flange Without
- Ambient temperature -20°C to +40°C
- Number of poles 8
- Frequency 60 Hz
- Moment of inertia (J) 87.3 sq.ft.lb
- Noise level² 63.0 dB(A)
- Standard NEMA MG-1
- Rated speed 890 rpm
- Locked rotor time 27s (cold) 15s (hot)
- Degree of Protection IP56
- Output rating 100 HP
- Rated voltage 460 V
- No load current 56.0 A
- Mounting F-1
- Approx. weight³ 1760 lb
- Number of Poles 8
- Rated torque 590 ft.lb
- Breakdown torque 220 %
- Service factor 1.25
- Starting Method Direct On Line
- Voltage 460 V
- Synchronous speed 900 rpm
- Rated current 127 A
- L. R. Amperes 762 A
- Output 100 HP (75 kW)
- Design B
- Insulation Class F
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
