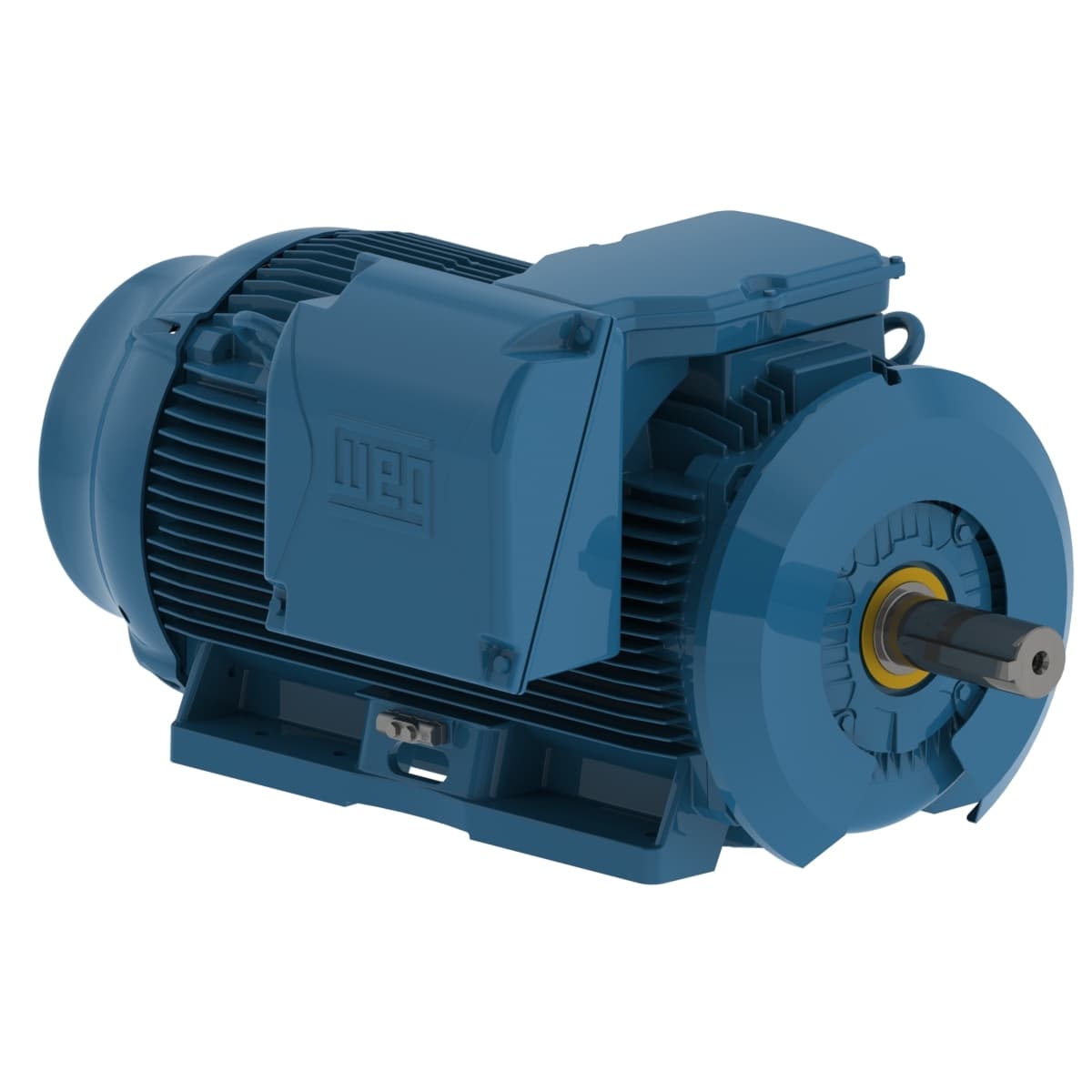

35018ST3QIE449T-W22 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 460 V
- Output Rating 350 HP
- Rated Speed 1787 rpm
- Flange Type Without
- Output rating 350 HP
- Terminal box¹ Left position
- Flange Without
- Synchronous speed 1800 rpm
- Approx. weight³ 3198 lb
- Number of poles 4
- Standard NEMA MG-1
- Voltage 460 V
- Noise level² 77.0 dB(A)
- Rotation¹ Both (CW and CCW)
- Enclosure IC411 - TEFC
- Mounting F-1
- Degree of Protection IP56
- Altitude 1000 m.a.s.l.
- Duty Cycle Cont.(S1)
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Insulation Class F
- Service factor 1.15
- Design B
- Locked rotor torque 260 %
- Moment of inertia (J) 131 sq.ft.lb
- Locked rotor time 81s (cold) 45s (hot)
- Breakdown torque 229 %
- Rated torque 1030 ft.lb
- Rated current 394 A
- No load current 115 A
- LRC 6.9x(Code G)
- Rated voltage 460 V
- L. R. Amperes 2719 A
- Frequency 60 Hz
- Number of Poles 4
- Slip 0.72 %
- Output 350 HP (260 kW)
- Rated speed 1787 rpm
- Frame L447/9T
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
