EDP11S142GN3R11000 WEG Variable Frequency Drives (VFD)
Part#:EDP11S142GN3R11000
Alt. Part#:7909492464785
Manufacturer:WEG
Category:Variable Frequency Drives (VFD)
Product Lifecycle:Active
Product description

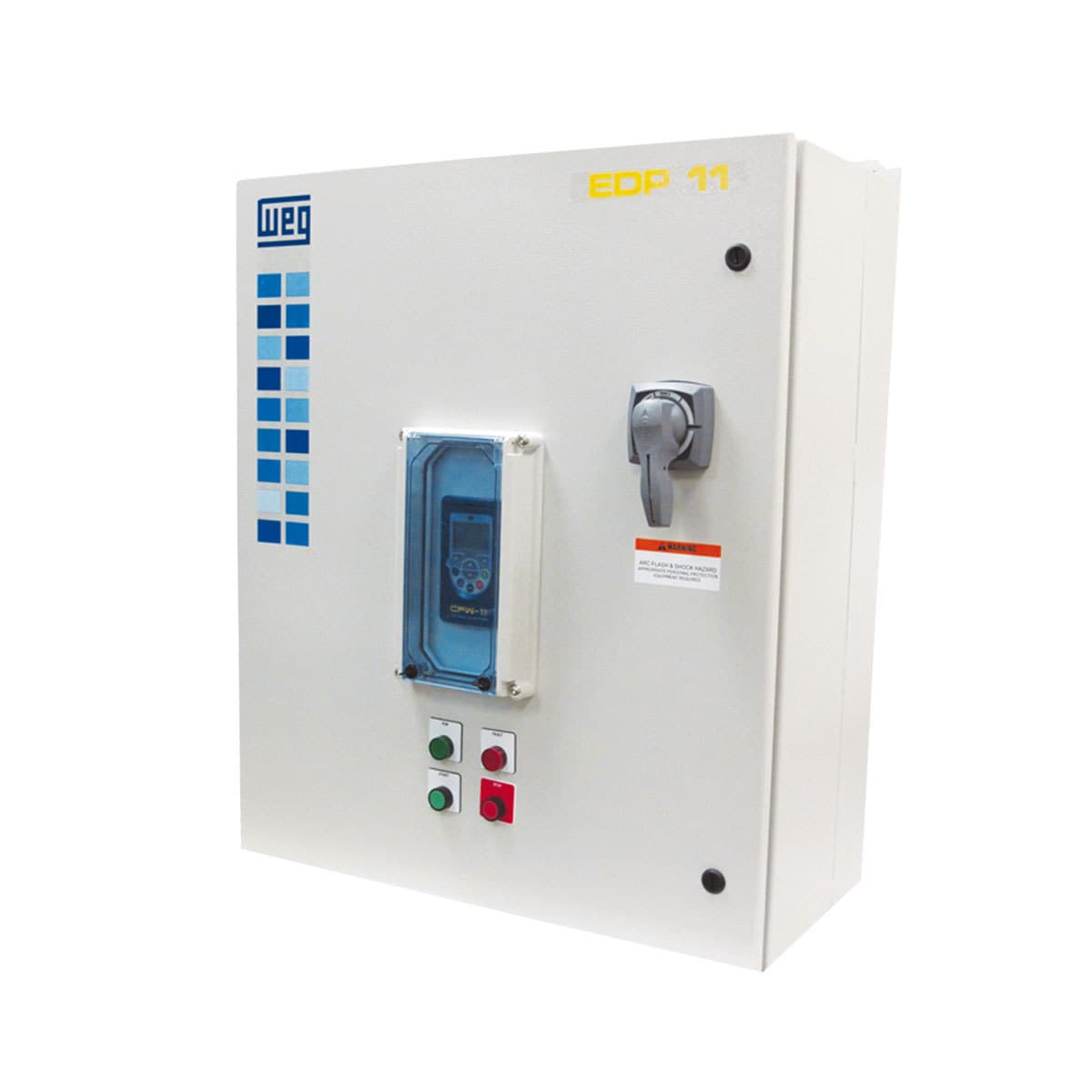

STANDARD PANEL EDP11S142GN3R11000
Product Details
- Nominal depth 406.4 mm / 16.0 in
- Certification UL/cUL
- Nominal width 914.4 mm / 36.0 in
- Communication None
- Enclosure rating Type 3R
- Disconnect switch type Circuit Breaker rotary handle disconnect
- Nominal height 1524.0 mm / 60.0 in
- SCCR rating 5 kAIC
- Control options Start Pushbutton, Stop Pushbutton, Speed Potentiometer, Hand/OFF/Auto Selector Switch, E-STOP Pushbutton, Run Light, Fault Light and Keypad
- Reactor/Filter None
- Control power transformer 100 VA - Open
- Bypass type AC3
- Control Voltage 120 V
- Enclosure type Free Standing
- Frequency 60 Hz
- Panel type VFD
- General enclosure options Lightning Arrestor
- Series EDP11
- Main voltage 460 V
- Thermal Managment Enclosure heater
- Horsepower (HP) 125 HP
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
