3493C SL001 Alpha Wire Electronic Components

Name: 3493C SL001
Brand: Alpha Wire

3493C SL001 on Advantage Electric Supply

Part#:3493C SL001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

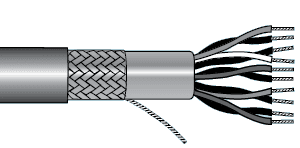

Alpha Essentials Multi-Pair Cable - Foil Braid Shield - 28 AWG 3 Pair - Gray - 300V - 1000ft - Alpha 3493C SL001

Product Details

NUMBER OF CONDUCTORS
3 pair
VOLTAGE
300V
NOMINAL OD (IN)
0.241
CONDUCTOR MATERIAL
Tinned copper
JACKET MATERIAL
PVC
MANUFACTURER PART NUMBER
3493C SL001
SHIELDING
Foil Braid
TEMPERATURE
-4°F to +167deg;F-20°C to +75°C
CONDUCTOR STRANDING
Stranded
SERIES
Alpha Essentials Multi-Pair
JACKET COLOR
Gray
STANDARDS/APPROVALS
UL Approved CSA Approved CE Approved
AWG/GAUGE
28

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3493C SL001 Related Documents

Datasheet.pdf

Manufacturer warranty

3493C SL001 Alpha Wire
