78378 SL005 Alpha Wire Electronic Components

Name: 78378 SL005
Brand: Alpha Wire

78378 SL005 on Advantage Electric Supply

Part#:78378 SL005

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

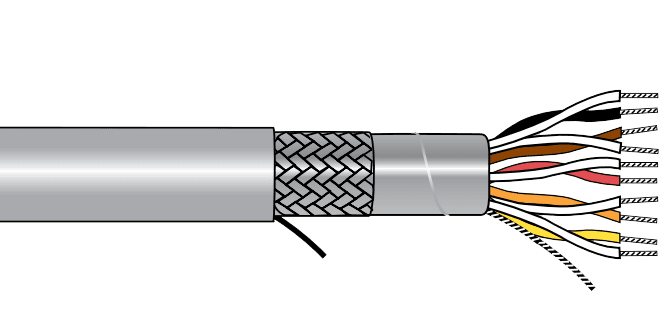

Alpha EcoCable® Mini Foil Braid Shield Multipair Cable - 24 AWG 8 Pair - Slate - 300V - 100 ft

Product Details

JACKET MATERIAL
mPPE
STANDARDS/APPROVALS
CE Approved VW-1 UL AWM 21460
NUMBER OF CONDUCTORS
8 pair
TEMPERATURE
-40°C to +80°C
SHIELDING
Foil Braid
VOLTAGE
300V
CONDUCTOR STRANDING
Stranded
AWG/GAUGE
24
SERIES
EcoCable Mini
JACKET COLOR
Gray
NOMINAL OD (MM)
7.0612
CONDUCTOR MATERIAL
Tinned copper
NOMINAL OD (IN)
0.278
MANUFACTURER PART NUMBER
78378 SL005

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

78378 SL005 Related Documents

Datasheet.pdf

Manufacturer warranty
