I7R202 ifm Electronic Electronic Components
Part#:I7R202
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

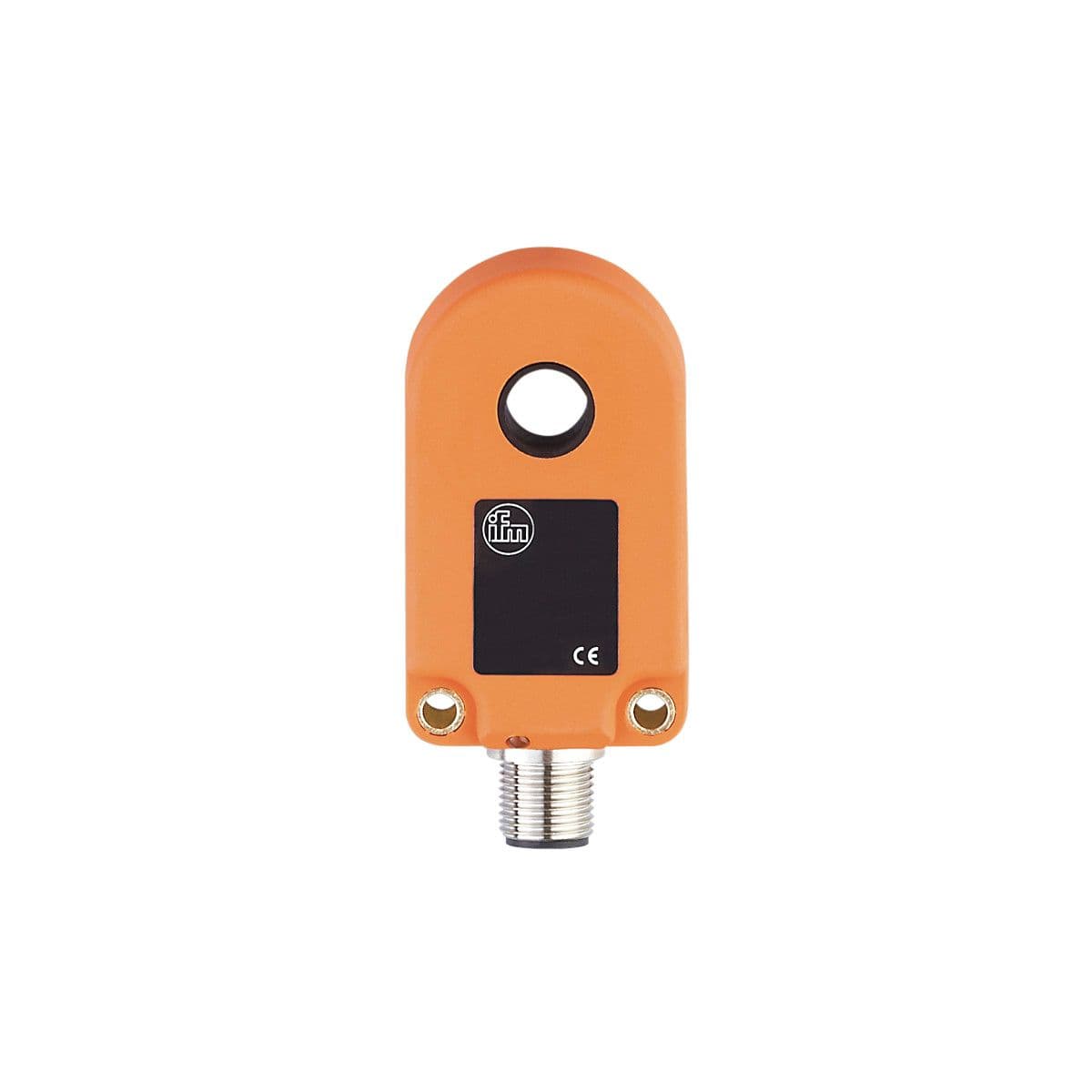

Inductive ring sensor, Electrical design: NPN, Output function: normally open / closed; (selectable), Housing: circular, Dimensions [mm]: 60 x 35 x 20, Principle of operation: static
Product Details
- Protection class III
- Dimensions [mm] 60 x 35 x 20
- Permanent current rating of switching output DC [mA] 200
- Reverse polarity protection yes
- Short-circuit protection yes
- Housing circular
- Max. voltage drop switching output DC [V] 2
- Operating voltage [V] 10...35 DC
- Output function normally open / closed; (selectable)
- Overload protection yes
- Principle of operation static
- Electrical design NPN
- Current consumption [mA] < 11
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
