IE5203 ifm Electronic Electronic Components
Part#:IE5203
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

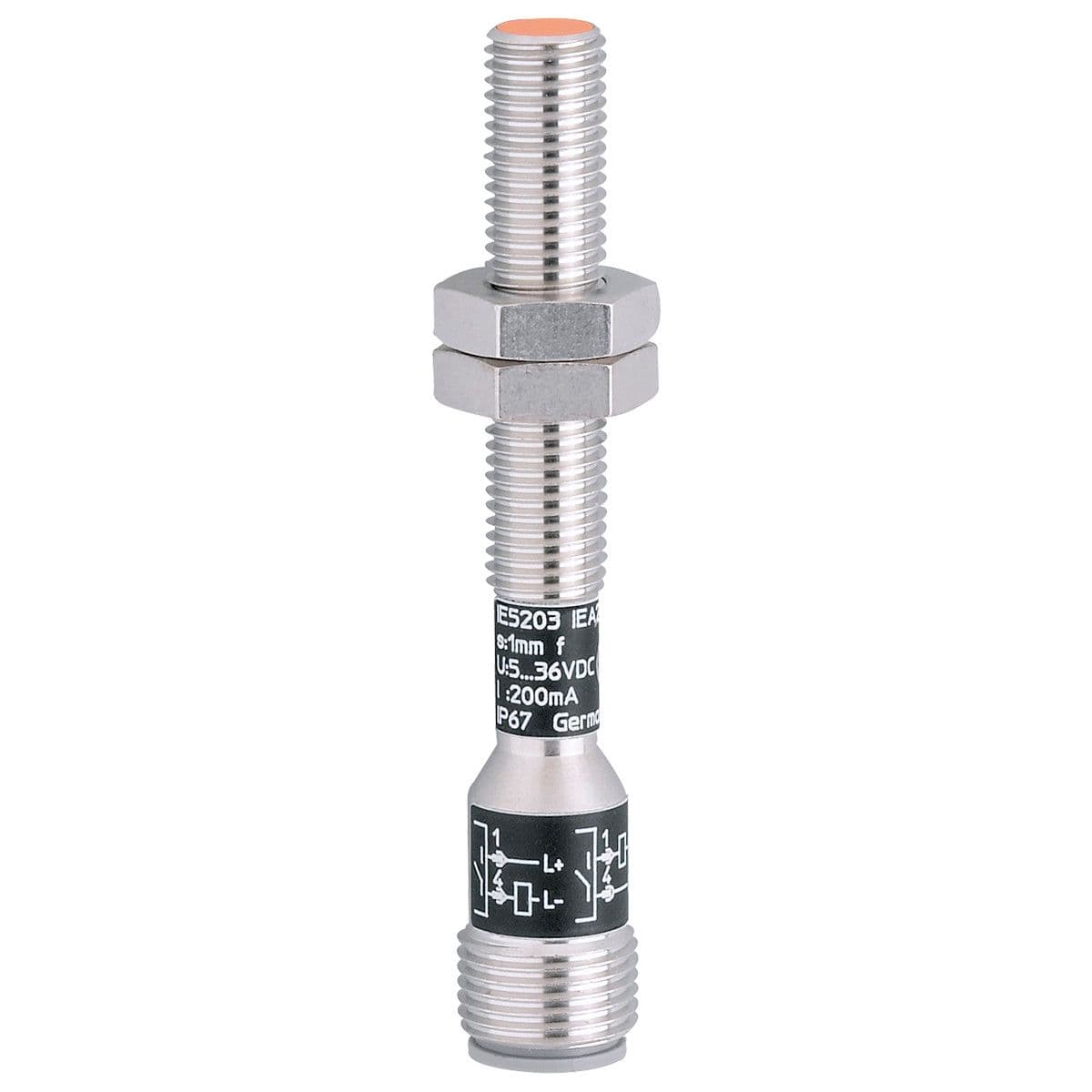

Inductive sensor, For use where space is restricted, Electrical design: PNP/NPN, Output function: normally open / closed; (selectable), Sensing range [mm]: 1, Housing: Threaded type, Dimensions [mm]: M8 x 1 / L = 69
Product Details
- Dimensions [mm] M8 x 1 / L = 69
- Overload protection yes
- Sensing range [mm] 1
- Max. voltage drop switching output DC [V] 4.6
- Protection class III
- Short-circuit protection yes
- Housing Threaded type
- Minimum load current [mA] 4
- Electrical design PNP/NPN
- Switching frequency DC [Hz] 2000
- Operating voltage [V] 5...36 DC
- Max. leakage current [mA] 0.8
- Permanent current rating of switching output DC [mA] 200
- Output function normally open / closed; (selectable)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
