IE5295 ifm Electronic Electronic Components
Part#:IE5295
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

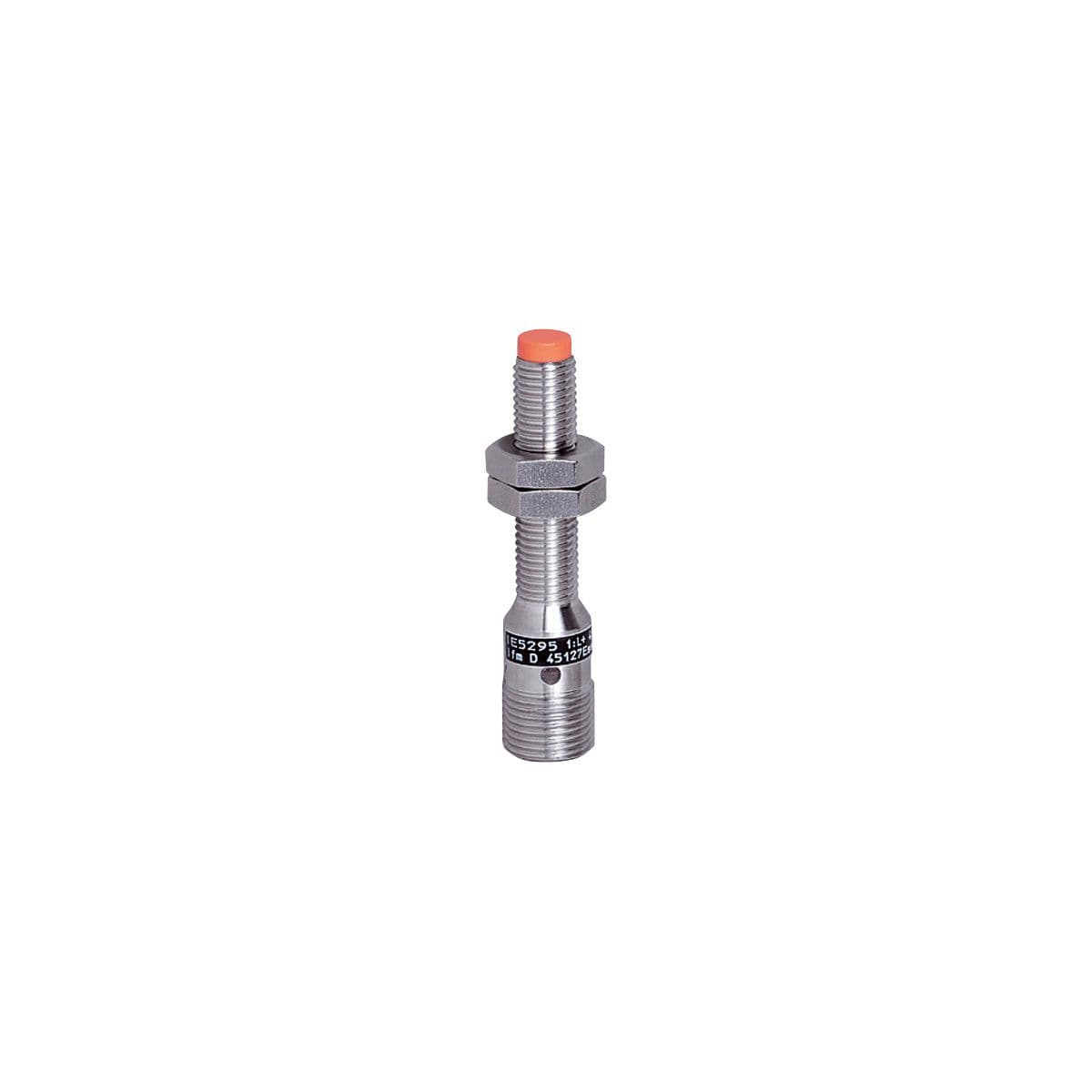

Inductive sensor, Robust stainless steel housing for use in the food and beverage industry, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2, Housing: Threaded type, Dimensions [mm]: M8 x 1 / L = 55, System: gold-plated contac
Product Details
- Operating voltage [V] 10...36 DC
- Overload protection yes
- Electrical design PNP
- Protection class III
- Max. voltage drop switching output DC [V] 2.5
- Reverse polarity protection yes
- Short-circuit protection yes
- Housing Threaded type
- Switching frequency DC [Hz] 2000
- Dimensions [mm] M8 x 1 / L = 55
- Permanent current rating of switching output DC [mA] 200
- System gold-plated contacts
- Output function normally open
- Current consumption [mA] 15; (24 V)
- Type of short-circuit protection yes (non-latching)
- Sensing range [mm] 2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IE5295 ifm Electronic
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare IE5295 with other Electronic Components products
Operating voltage [V]
Overload protection
Electrical design
Protection class
Max. voltage drop switchi...
Reverse polarity protecti...
Short-circuit protection
Housing
Switching frequency DC [H...
Dimensions [mm]
Selected product
IE5295
ifm Electronic
Inductive sensor, Robust stainless steel housing for use in the food and beverage industry, Electric...
Operating voltage [V]10...36 DC
Overload protectionyes
Electrical designPNP
Protection classIII
Max. voltage drop switching output DC [V]2.5
Reverse polarity protectionyes
Short-circuit protectionyes
HousingThreaded type
Switching frequency DC [Hz]2000
Dimensions [mm]M8 x 1 / L = 55
Operating voltage [V]-
Overload protection-
Electrical design-
Protection class-
Max. voltage drop switching output DC [V]-
Reverse polarity protection-
Short-circuit protection-
Housing-
Switching frequency DC [Hz]-
Dimensions [mm]-
RH2B-ULAC24V
Idec
Relay; 24 VAC; Midget; 153 Ohms; 0.819 in. L x 1.07 in. W x 1.39 in. H; DPDT
Operating voltage [V]-
Overload protection-
Electrical design-
Protection class-
Max. voltage drop switching output DC [V]-
Reverse polarity protection-
Short-circuit protection-
Housing-
Switching frequency DC [Hz]-
Dimensions [mm]-
About the manufacturer
Advantage Electric Supply is an authorized ifm Electronic distributor, bringing you innovative industrial automation solutions from a trusted manufacturer. ifm Electronic specializes in developing cutting-edge sensors and control systems that are vital for optimizing industrial processes across a wide spectrum of industries, including automotive, food and beverage, chemical, and more. Their compre...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.
Inductive sensor, Robust stainless steel housing for use in the food and beverage industry, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2, Housing: Threaded type, Dimensions [mm]: M8 x 1 / L = 55, System: gold-plated contac
