IF0301 ifm Electronic Electronic Components
Part#:IF0301
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

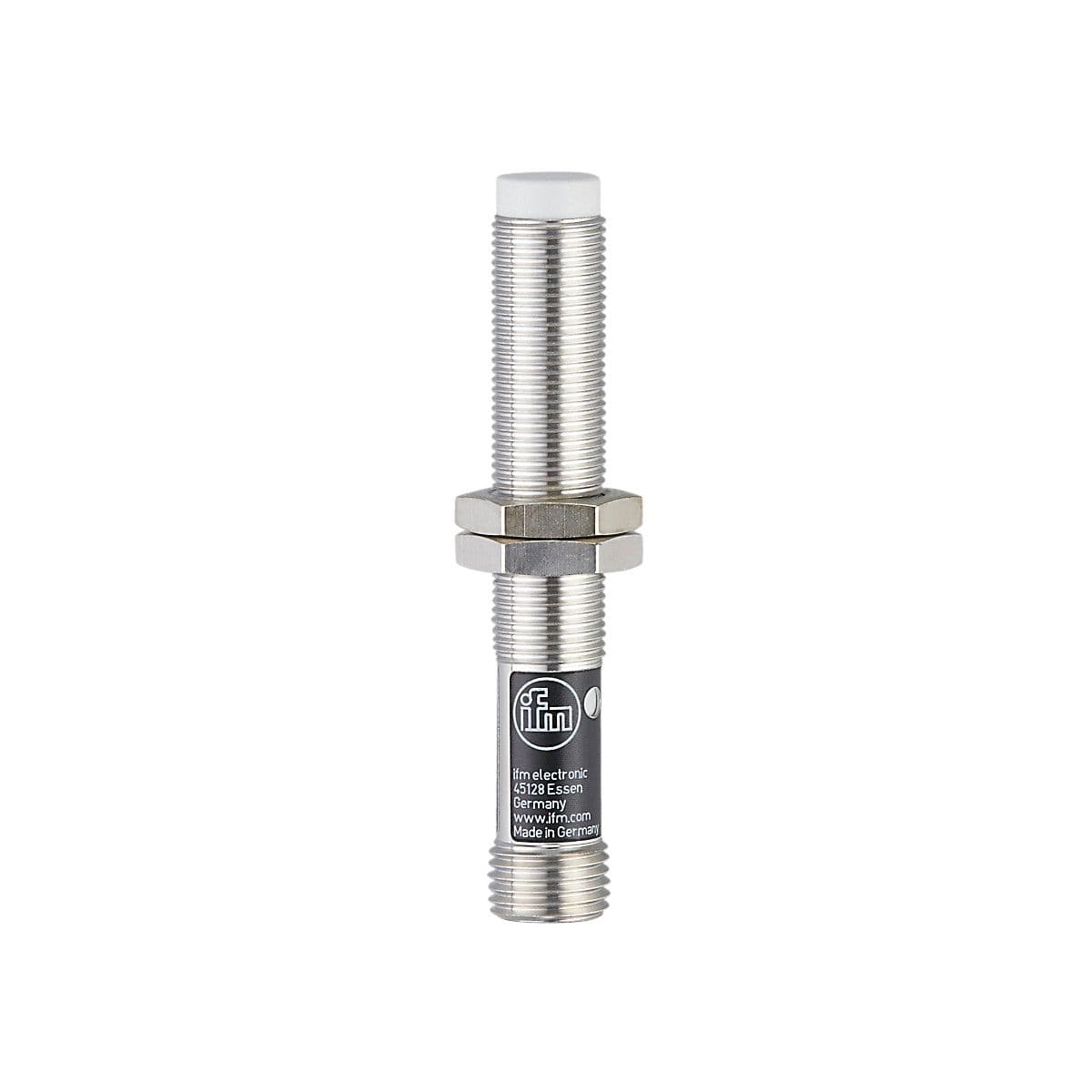

Inductive sensor, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 77
Product Details
- Sensing range [mm] 4
- Max. leakage current [mA] 2
- Output function normally open
- Minimum load current [mA] 8
- Dimensions [mm] M12 x 1 / L = 77
- Max. voltage drop switching output AC [V] 8.5
- Housing Threaded type
- Switching frequency AC [Hz] 25
- Protection class I
- Overload protection no
- Short-time current rating of switching output [mA] 900; (20 ms / 0,5 Hz)
- Frequency AC [Hz] 45...65
- Reverse polarity protection no
- Short-circuit proof no
- Operating voltage [V] 20...250 AC
- Permanent current rating of switching output AC [mA] 200; (250 (...50 °C))
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
