IF0311 ifm Electronic Electronic Components
Part#:IF0311
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

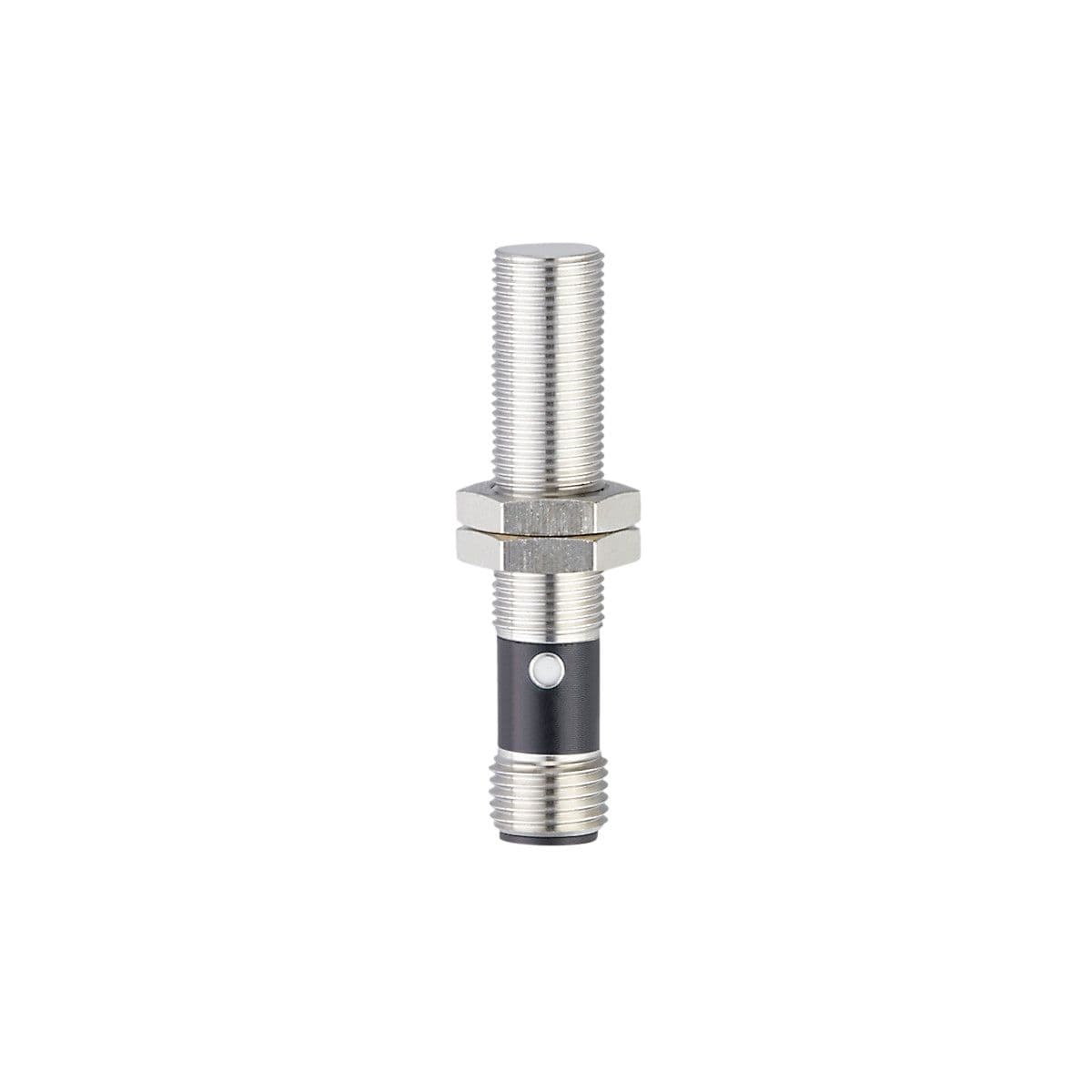

Inductive sensor, With combined AC/DC output stage, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1, System: Increased sensing range
Product Details
- Sensing range [mm] 4
- Permanent current rating of switching output DC [mA] 200
- Housing Threaded type
- Switching frequency DC [Hz] 200
- Reverse polarity protection no
- Minimum load current [mA] 5
- System Increased sensing range
- Max. voltage drop switching output DC [V] 5
- Short-circuit proof no
- Switching frequency AC [Hz] 25
- Operating voltage [V] 20...140 AC / 10...140 DC
- Output function normally open
- Short-time current rating of switching output [mA] 900; (20 ms / 0,5 Hz)
- Frequency AC [Hz] 47...63
- Permanent current rating of switching output AC [mA] 200
- Dimensions [mm] M12 x 1
- Max. voltage drop switching output AC [V] 5
- Overload protection no
- Protection class I
- Max. leakage current [mA] 0.8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
