IF0312 ifm Electronic Electronic Components

Name: IF0312
Brand: ifm Electronic

Part#:IF0312

Category:Electronic Components

Product Lifecycle:Active

Product description

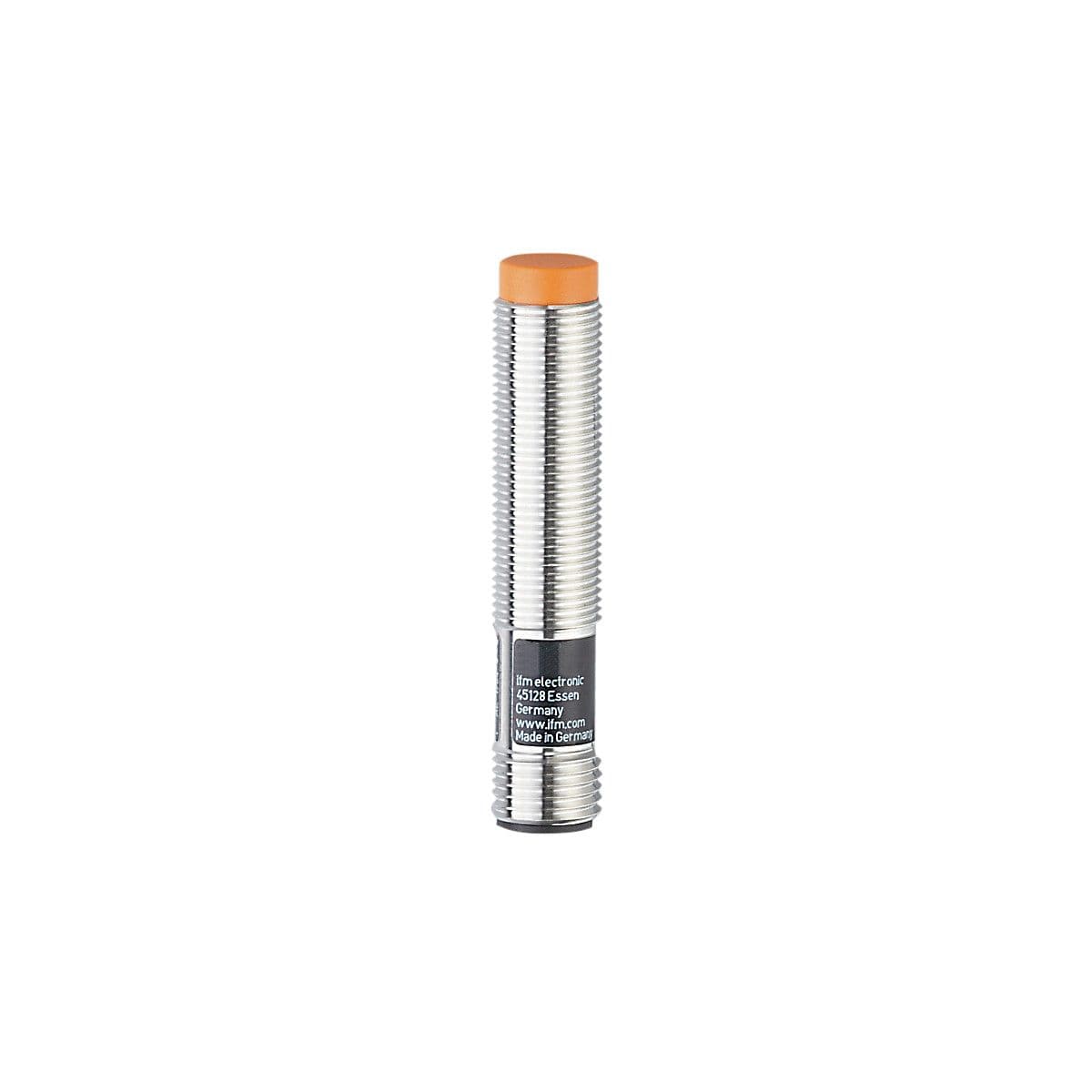

Inductive sensor, With combined AC/DC output stage, Output function: normally open, Sensing range [mm]: 7, Housing: Threaded type, Dimensions [mm]: M12 x 1, System: Increased sensing range

Product Details

Protection class
I
Max. voltage drop switching output DC [V]
5
Overload protection
no
Reverse polarity protection
no
Permanent current rating of switching output AC [mA]
200
Operating voltage [V]
20...140 AC / 10...140 DC
Max. voltage drop switching output AC [V]
5
Output function
normally open
Max. leakage current [mA]
0.8
System
Increased sensing range
Sensing range [mm]
7
Minimum load current [mA]
5
Permanent current rating of switching output DC [mA]
200
Short-circuit proof
no
Frequency AC [Hz]
47...63
Short-time current rating of switching output [mA]
900; (20 ms / 0,5 Hz)
Dimensions [mm]
M12 x 1
Switching frequency DC [Hz]
90
Switching frequency AC [Hz]
25
Housing
Threaded type

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IF0312 Related Documents

CAD_STP_MZ_IFKANLS.ZIP-1631071251275.zip CAD_DWG_MZ_IFKANLS.ZIP-1631071251261.zip CAD_SAT_MZ_IFKANLS.ZIP-1631071251272.zip CAD_DXF_MZ_IFKANLS.ZIP-1631071251258.zip PDF data sheet-1631071251244.pdf

Manufacturer warranty
