IFM203 ifm Electronic Electronic Components
Part#:IFM203
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

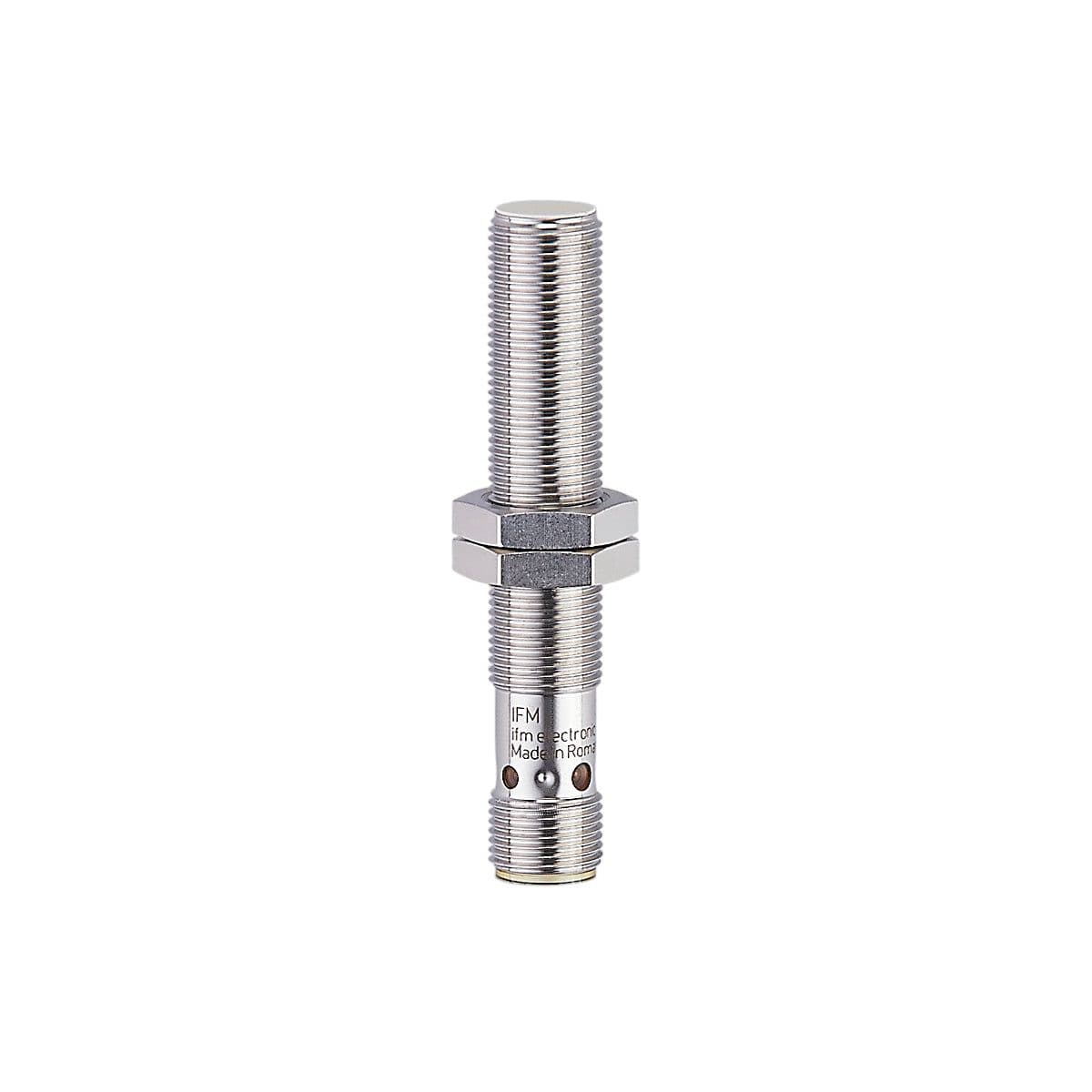

Inductive sensor, High shock and vibration resistance for use in mobile machines, Electrical design: PNP/NPN, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 70, System: gold-plated contacts; I
Product Details
- Operating voltage [V] 10...36 DC
- Type of short-circuit protection yes (non-latching)
- Max. voltage drop switching output DC [V] 2.5
- Output function normally open
- Overload protection yes
- Dimensions [mm] M12 x 1 / L = 70
- Permanent current rating of switching output DC [mA] 100
- Reverse polarity protection yes
- Housing Threaded type
- Protection class II
- System gold-plated contacts; Increased sensing range
- Minimum load current [mA] 2; (only in 2-wire operation)
- Application Use in mobile and harsh applications
- Max. leakage current [mA] 0.5; (only in 2-wire operation)
- Current consumption [mA] < 10; (only in 3-wire operation)
- Sensing range [mm] 4
- Short-circuit protection yes
- Electrical design PNP/NPN
- Switching frequency DC [Hz] 400
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
