IFM209 ifm Electronic Electronic Components
Part#:IFM209
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

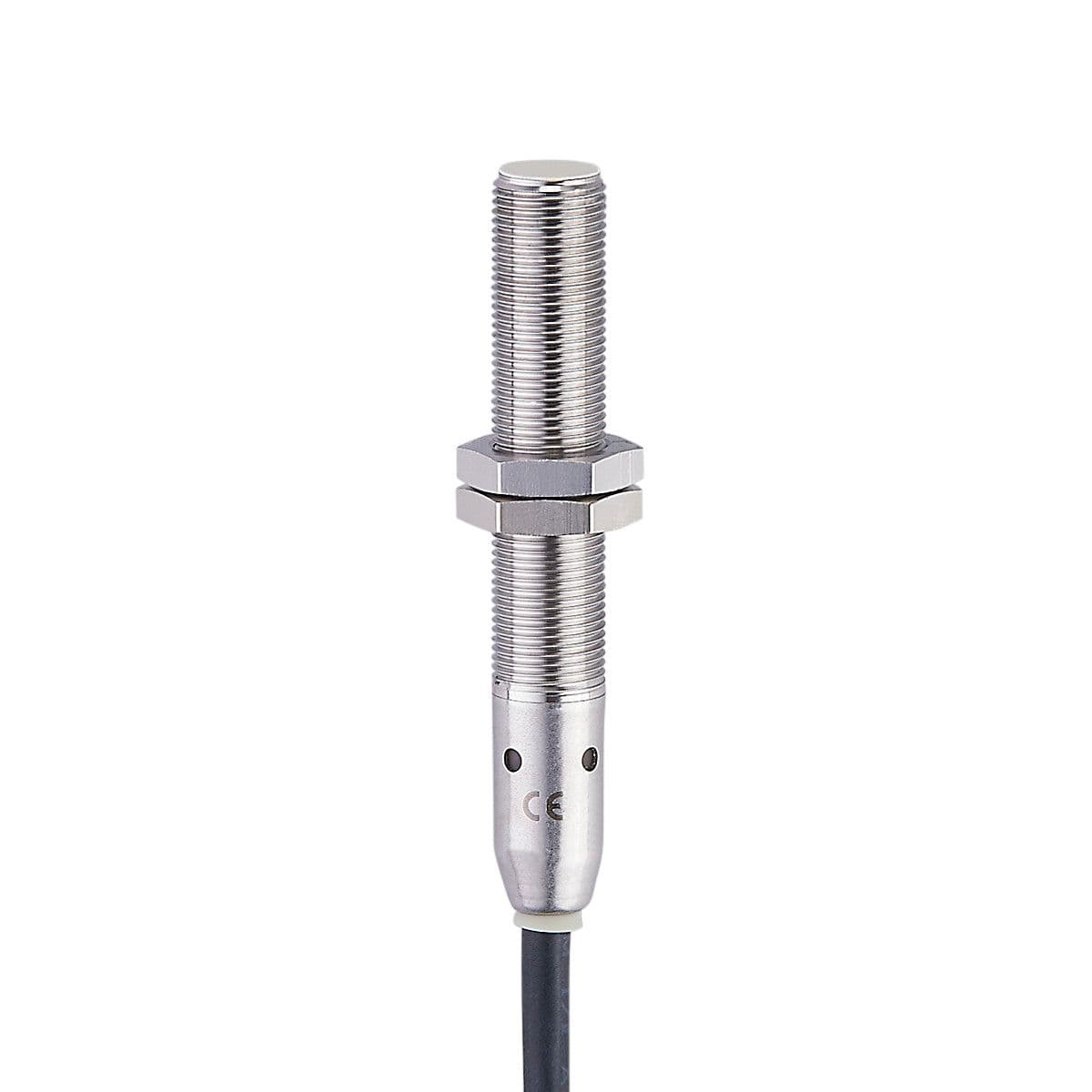

Inductive sensor, High shock and vibration resistance for use in mobile machines, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 79, System: Increased sensing range, Ap
Product Details
- Permanent current rating of switching output DC [mA] 200
- System Increased sensing range
- Sensing range [mm] 4
- Reverse polarity protection yes
- Overload protection yes
- Max. voltage drop switching output DC [V] 2.5
- Operating voltage [V] 10...60 DC
- Application Use in mobile and harsh applications
- Type of short-circuit protection yes (non-latching)
- Output function normally open
- Switching frequency DC [Hz] 400
- Housing Threaded type
- Short-circuit protection yes
- Protection class II
- Electrical design PNP
- Current consumption [mA] < 10
- Dimensions [mm] M12 x 1 / L = 79
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
