IFR202 ifm Electronic Electronic Components
Part#:IFR202
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

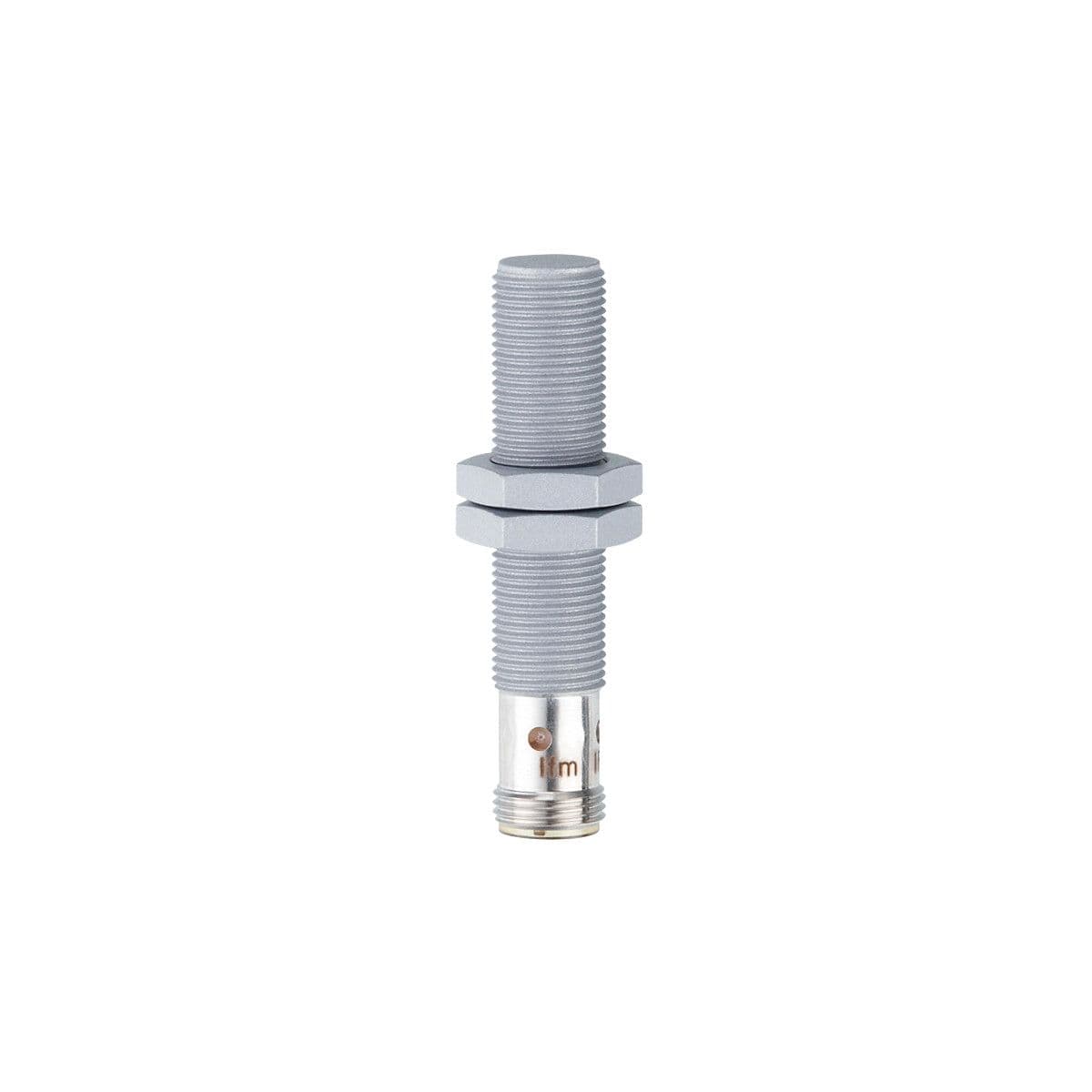

Inductive full-metal sensor, Magnetic-field immune for welding applications, Electrical design: NPN, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 60, System: gold-plated contacts; Increased
Product Details
- System gold-plated contacts; Increased sensing range; Full-metal housing; Magnetic-field immune; weld coated
- Short-circuit protection yes
- Application Sensors for welding applications
- Max. voltage drop switching output DC [V] 2.5
- Sensing range [mm] 4
- Reverse polarity protection yes
- Note on pressure rating sensing face
- Operating voltage [V] 10...30 DC
- Housing Threaded type
- Magnetic-field immune yes; (pulse duration of the welding current: < 200 ms)
- Output function normally open
- Permanent current rating of switching output DC [mA] 100
- Overload protection yes
- Dimensions [mm] M12 x 1 / L = 60
- Protection class III
- Type of short-circuit protection yes (non-latching)
- Pressure rating [bar] 100
- Switching frequency DC [Hz] 2
- Current consumption [mA] < 20
- Electrical design NPN
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
