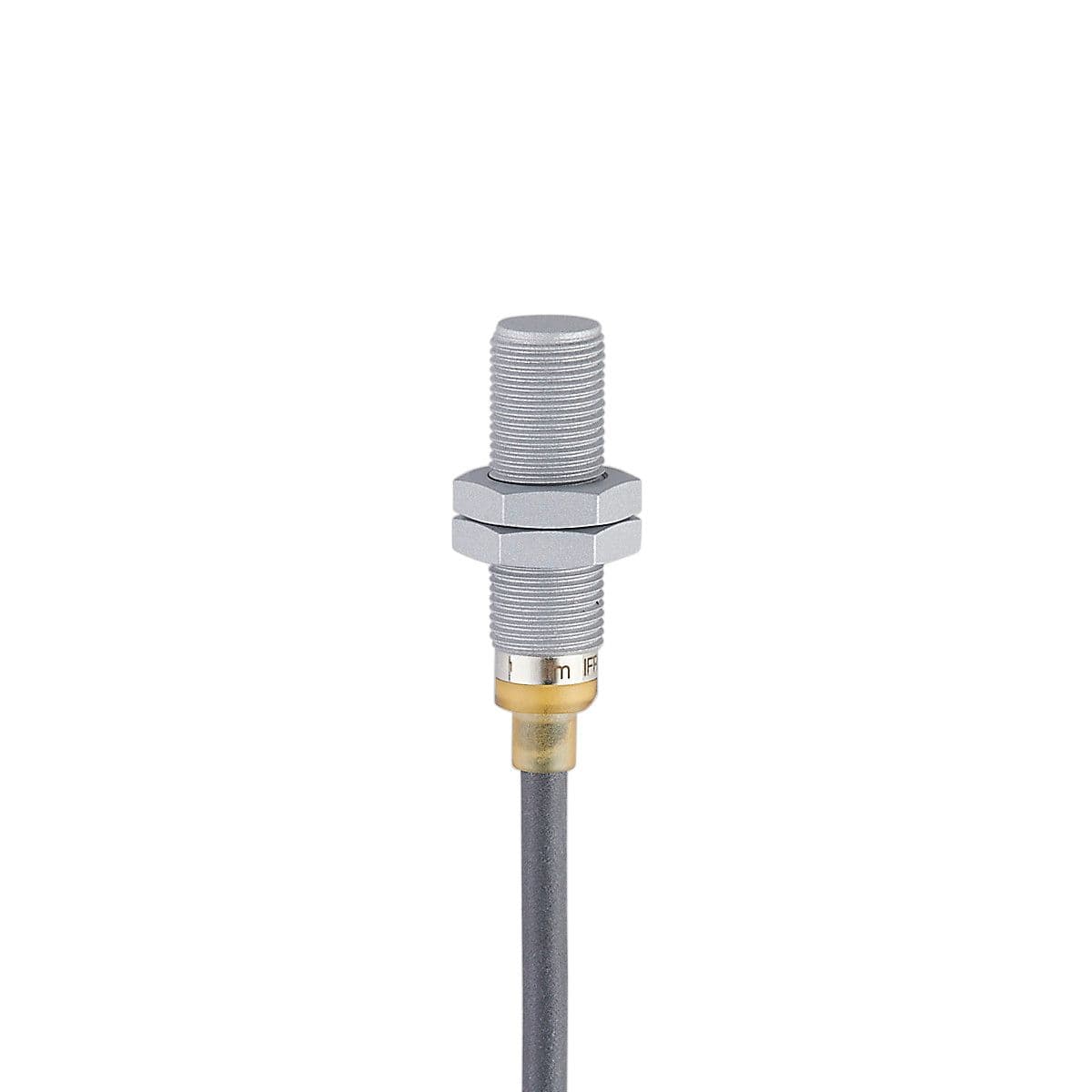

IFR212 ifm Electronic Electronic Components

Name: IFR212
Brand: ifm Electronic

Part#:IFR212

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

Inductive full-metal sensor, Weld slag resistant coating, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 40, System: Halogen-free; Drag chain suitability; Increased sen

Product Details

Note on pressure rating
sensing face
Output function
normally open
Max. voltage drop switching output DC [V]
2.5
System
Halogen-free; Drag chain suitability; Increased sensing range; Full-metal housing; Magnetic-field immune; weld coated
Short-circuit protection
yes
Application
Sensors for welding applications
Overload protection
yes
Magnetic-field immune
yes
Electrical design
PNP
Switching frequency DC [Hz]
2
Pressure rating [bar]
50
Permanent current rating of switching output DC [mA]
100
Sensing range [mm]
4
Reverse polarity protection
yes
Dimensions [mm]
M12 x 1 / L = 40
Current consumption [mA]
< 10
Housing
Threaded type
Operating voltage [V]
10...30 DC
Protection class
III

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IFR212 Related Documents

PDF data sheet-1631071502923.pdf CAD_DWG_100_0742.ZIP-1631071502919.zip CAD_STP_100_0742.ZIP-1631071502921.zip CAD_SAT_100_0742.ZIP-1631071502911.zip CAD_DXF_100_0742.ZIP-1631071502916.zip
