IFR207 ifm Electronic Electronic Components
Part#:IFR207
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

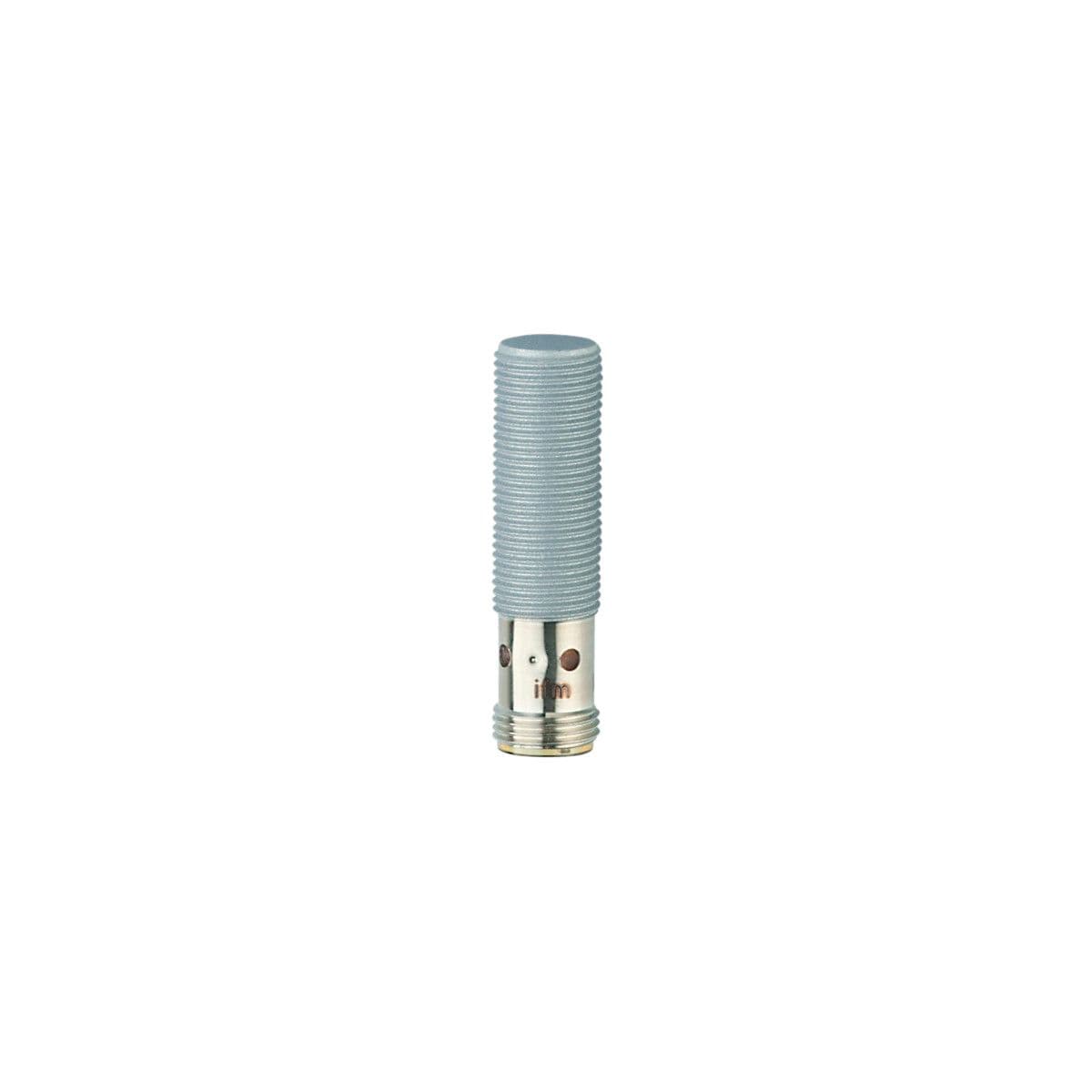

Inductive full-metal sensor, Weld slag resistant coating, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 45, System: gold-plated contacts; Increased sensing range; Full
Product Details
- System gold-plated contacts; Increased sensing range; Full-metal housing; Magnetic-field immune; weld coated
- Operating voltage [V] 10...30 DC
- Sensing range [mm] 4
- Max. electromagnetic field immunity [mT] 100
- Permanent current rating of switching output DC [mA] 100
- Pressure rating [bar] 100
- Current consumption [mA] < 10
- Short-circuit protection yes
- Dimensions [mm] M12 x 1 / L = 45
- Note on pressure rating sensing face
- Protection class III
- Electrical design PNP
- Application Sensors for welding applications
- Switching frequency DC [Hz] 2
- Housing Threaded type
- Reverse polarity protection yes
- Magnetic-field immune yes
- Max. voltage drop switching output DC [V] 2.5
- Output function normally open
- Overload protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IFR207 ifm Electronic
