IG0326 ifm Electronic Electronic Components

Name: IG0326
Brand: ifm Electronic

Part#:IG0326

Category:Electronic Components

Product Lifecycle:Active

Product description

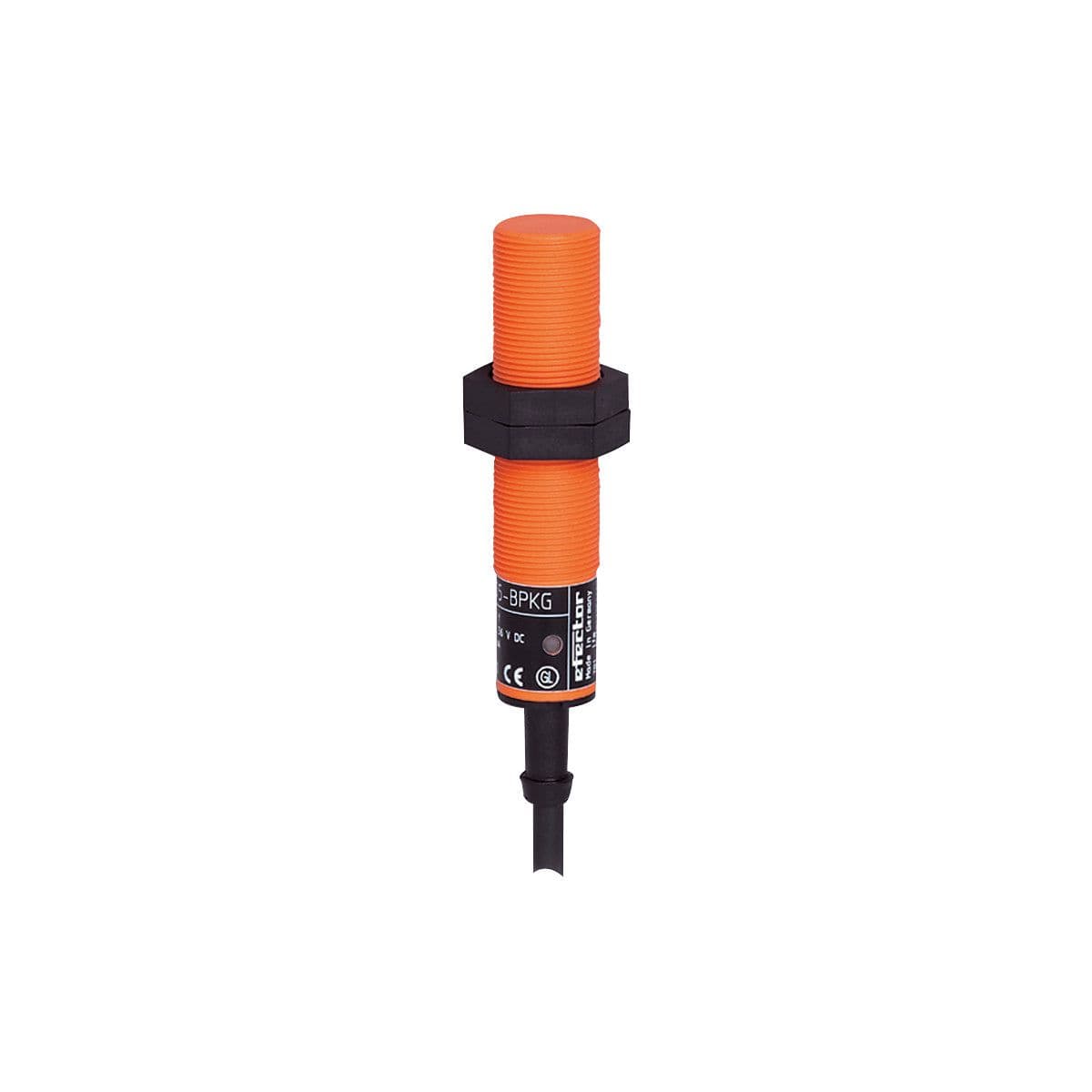

Inductive sensor, With combined AC/DC output stage, Output function: normally closed, Sensing range [mm]: 5, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 80

Product Details

Reverse polarity protection
no
Switching frequency DC [Hz]
50
Sensing range [mm]
5
Max. voltage drop switching output AC [V]
6.5
Short-circuit proof
no
Operating voltage [V]
20...250 AC/DC
Permanent current rating of switching output DC [mA]
100
Output function
normally closed
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Dimensions [mm]
M18 x 1 / L = 80
Minimum load current [mA]
5
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Protection class
II
Overload protection
no
Housing
Threaded type
Max. voltage drop switching output DC [V]
6
Switching frequency AC [Hz]
25

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
