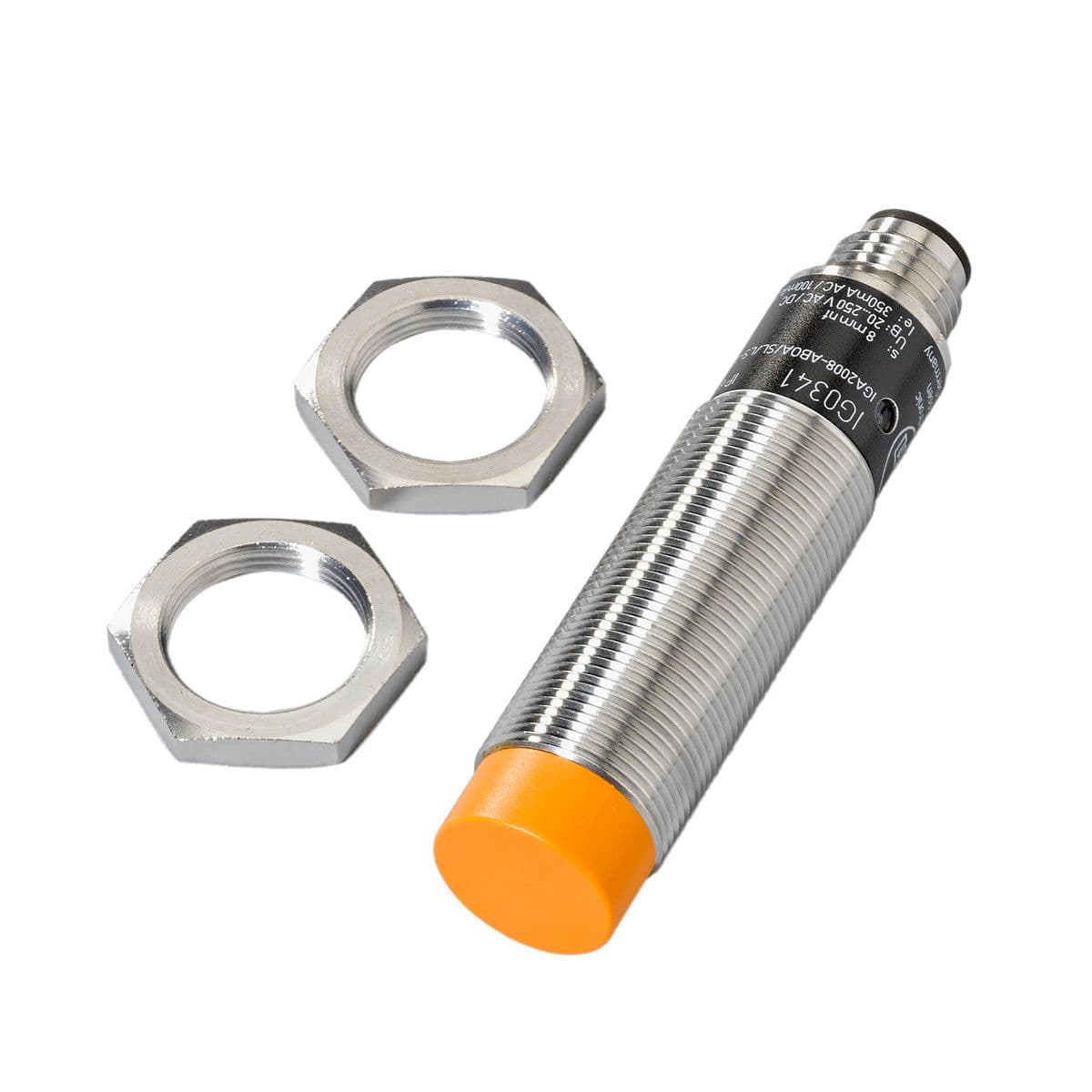

IG0341 ifm Electronic Electronic Components

Name: IG0341
Brand: ifm Electronic

Part#:IG0341

Category:Electronic Components

Product Lifecycle:Active

Product description

Inductive sensor, With combined AC/DC output stage, Output function: normally open, Sensing range [mm]: 8, Housing: Threaded type, Dimensions [mm]: M18 x 1

Product Details

Max. voltage drop switching output DC [V]
6
Minimum load current [mA]
5
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Dimensions [mm]
M18 x 1
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))
Reverse polarity protection
no
Housing
Threaded type
Switching frequency AC [Hz]
25
Protection class
I
Max. leakage current [mA]
2.5 (250 V AC) / 0.8 (24 V DC)
Operating voltage [V]
20...250 AC/DC
Max. voltage drop switching output AC [V]
6.5
Switching frequency DC [Hz]
100
Output function
normally open
Permanent current rating of switching output DC [mA]
100
Overload protection
no
Sensing range [mm]
8
Short-circuit proof
no

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
