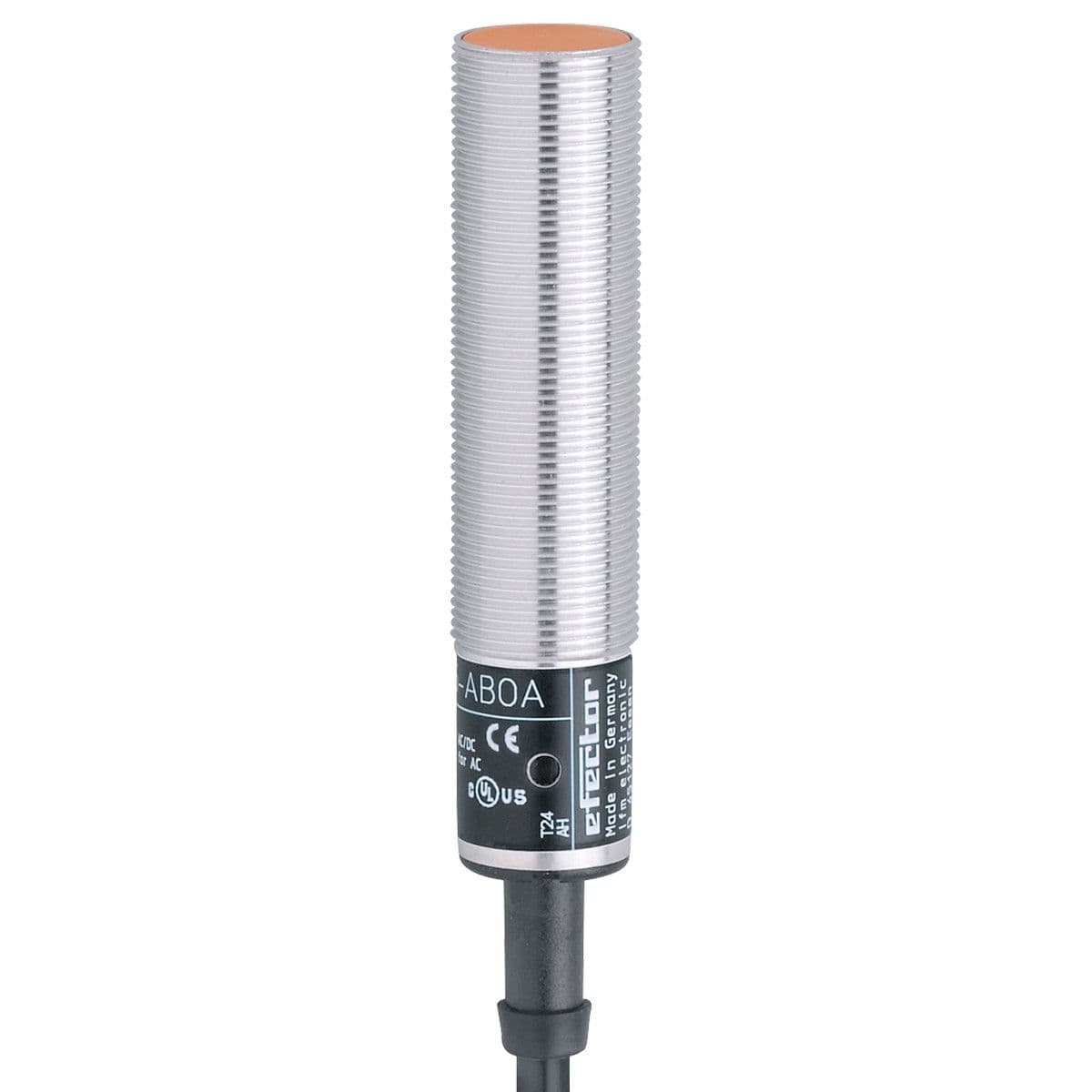

IG0360 ifm Electronic Electronic Components

Name: IG0360
Brand: ifm Electronic

Part#:IG0360

Category:Electronic Components

Product Lifecycle:Active

Product description

Inductive sensor, With combined AC/DC output and two-wire technology, Output function: normally open, Sensing range [mm]: 5, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 80

Product Details

Dimensions [mm]
M18 x 1 / L = 80
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Sensing range [mm]
5
Max. voltage drop switching output AC [V]
6.5
Switching frequency AC [Hz]
25
Operating voltage [V]
20...250 AC/DC
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))
Overload protection
no
Max. voltage drop switching output DC [V]
6
Short-circuit proof
no
Housing
Threaded type
Minimum load current [mA]
5
Output function
normally open
Protection class
II
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Reverse polarity protection
no
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
100

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IG0360 Related Documents

CAD_STP_100_0048.ZIP-1631071427491.zip CAD_SAT_100_0048.ZIP-1631071427489.zip CAD_DXF_100_0048.ZIP-1631071427493.zip PDF data sheet-1631071427485.pdf CAD_DWG_100_0048.ZIP-1631071427487.zip

Manufacturer warranty
