IG5526 ifm Electronic Electronic Components
Part#:IG5526
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

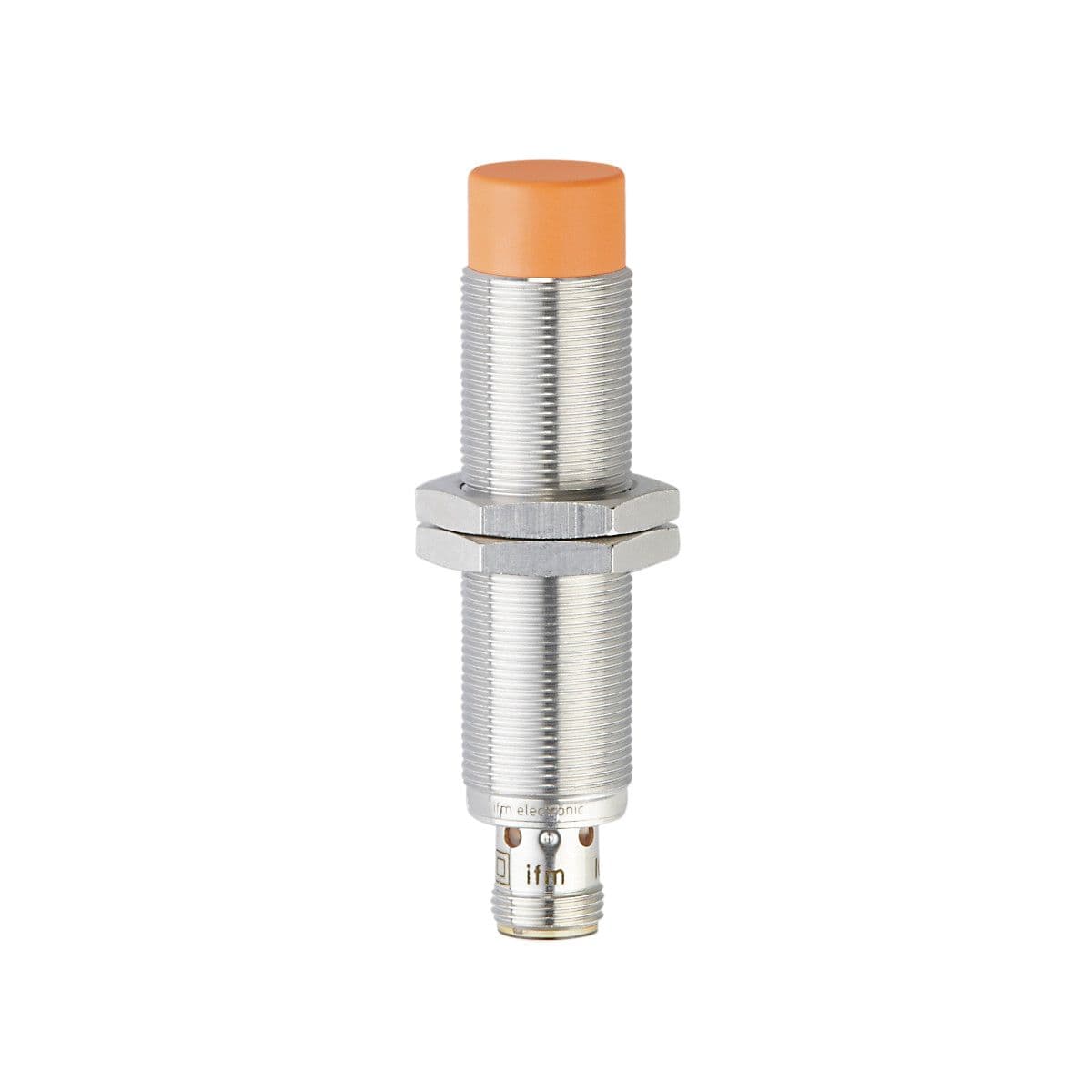

Inductive sensor, Robust metal housing for use in harsh industrial environments, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 8, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 80, System: gold-plated contacts
Product Details
- Sensing range [mm] 8
- Short-circuit protection yes
- Housing Threaded type
- Max. voltage drop switching output DC [V] 2.5
- Electrical design PNP
- Protection class II
- Reverse polarity protection yes
- Overload protection yes
- Dimensions [mm] M18 x 1 / L = 80
- Current consumption [mA] 10; (24 V)
- Operating voltage [V] 10...30 DC
- Switching frequency DC [Hz] 300
- Output function normally open
- System gold-plated contacts
- Permanent current rating of switching output DC [mA] 200
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IG5526 ifm Electronic
