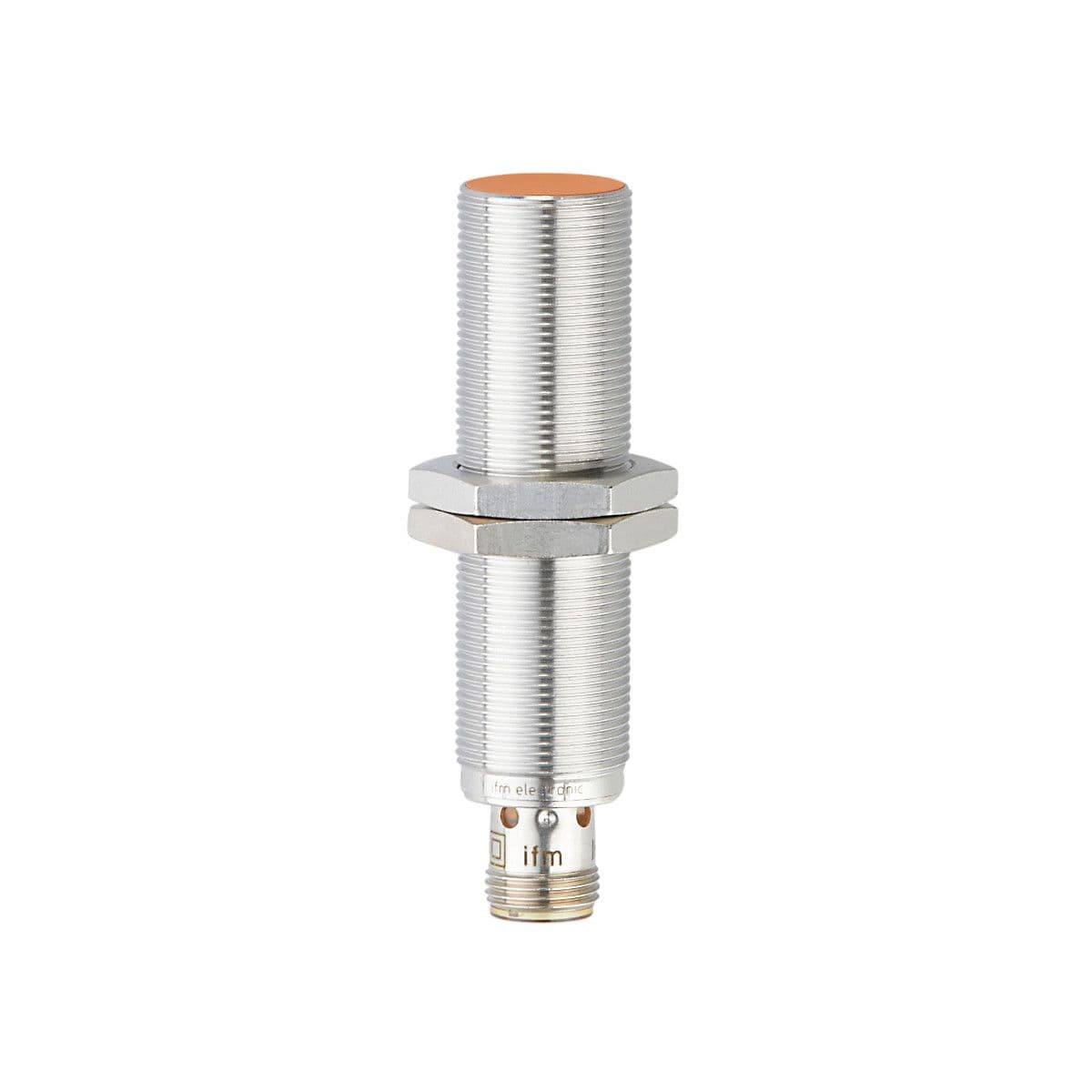

IG5568 ifm Electronic Electronic Components

Name: IG5568
Brand: ifm Electronic

Part#:IG5568

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

Inductive sensor, Robust metal housing for use in harsh industrial environments, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 5, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 75, System: gold-plated contacts

Product Details

Reverse polarity protection
yes
Electrical design
PNP
Housing
Threaded type
Operating voltage [V]
10...30 DC
Protection class
II
Switching frequency DC [Hz]
500
System
gold-plated contacts
Permanent current rating of switching output DC [mA]
200
Sensing range [mm]
5
Max. voltage drop switching output DC [V]
2.5
Output function
normally open
Overload protection
yes
Dimensions [mm]
M18 x 1 / L = 75
Current consumption [mA]
< 10
Short-circuit protection
yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
