IG5557 ifm Electronic Electronic Components
Part#:IG5557
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

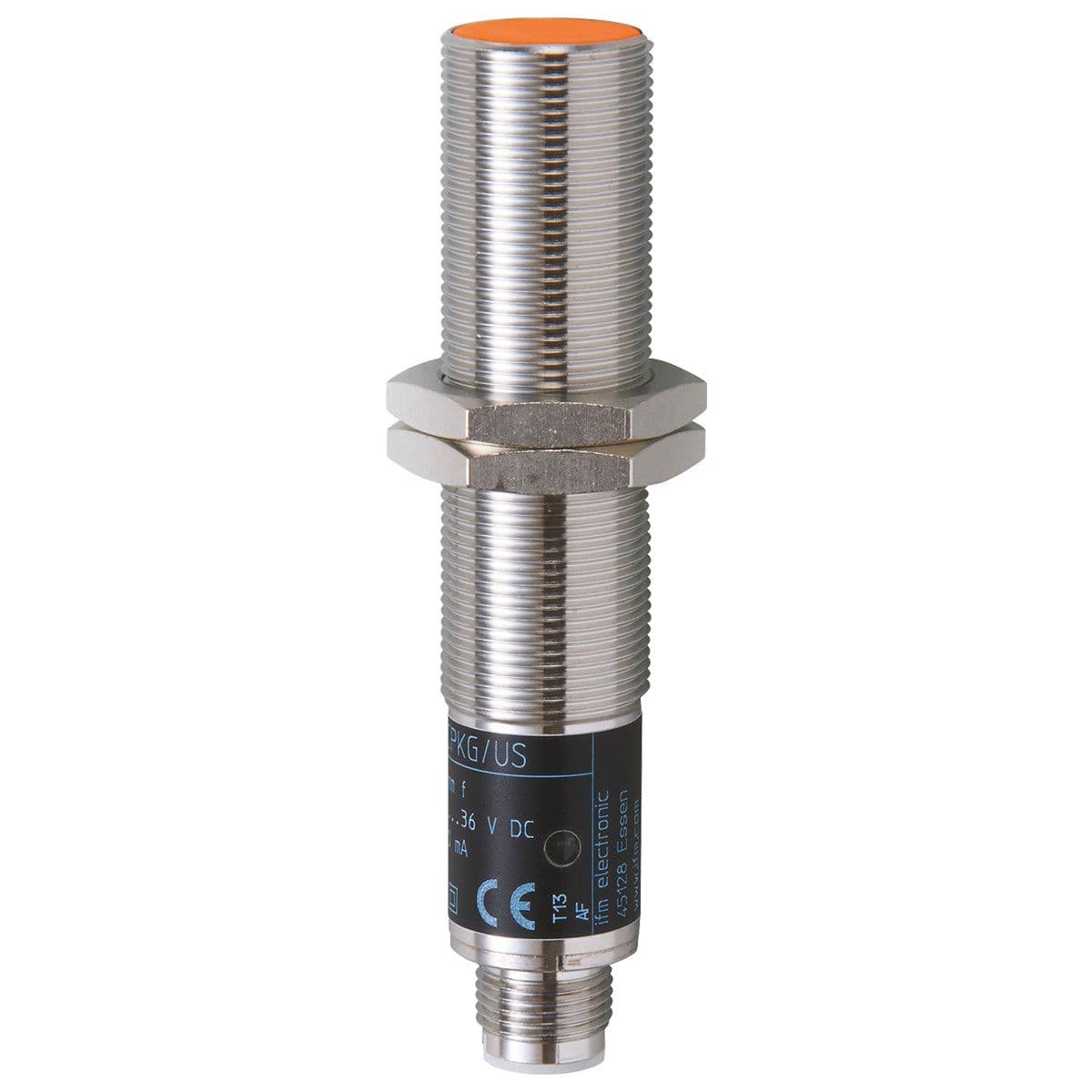

Inductive sensor, Robust metal housing for use in harsh industrial environments, Electrical design: NPN, Output function: normally closed, Sensing range [mm]: 5, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 89
Product Details
- Housing Threaded type
- Short-circuit protection yes
- Max. voltage drop switching output DC [V] 2.5
- Dimensions [mm] M18 x 1 / L = 89
- Operating voltage [V] 10...36 DC
- Permanent current rating of switching output DC [mA] 250
- Protection class II
- Type of short-circuit protection yes (non-latching)
- Overload protection yes
- Sensing range [mm] 5
- Output function normally closed
- Electrical design NPN
- Current consumption [mA] 15; (24 V)
- Switching frequency DC [Hz] 500
- Reverse polarity protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
