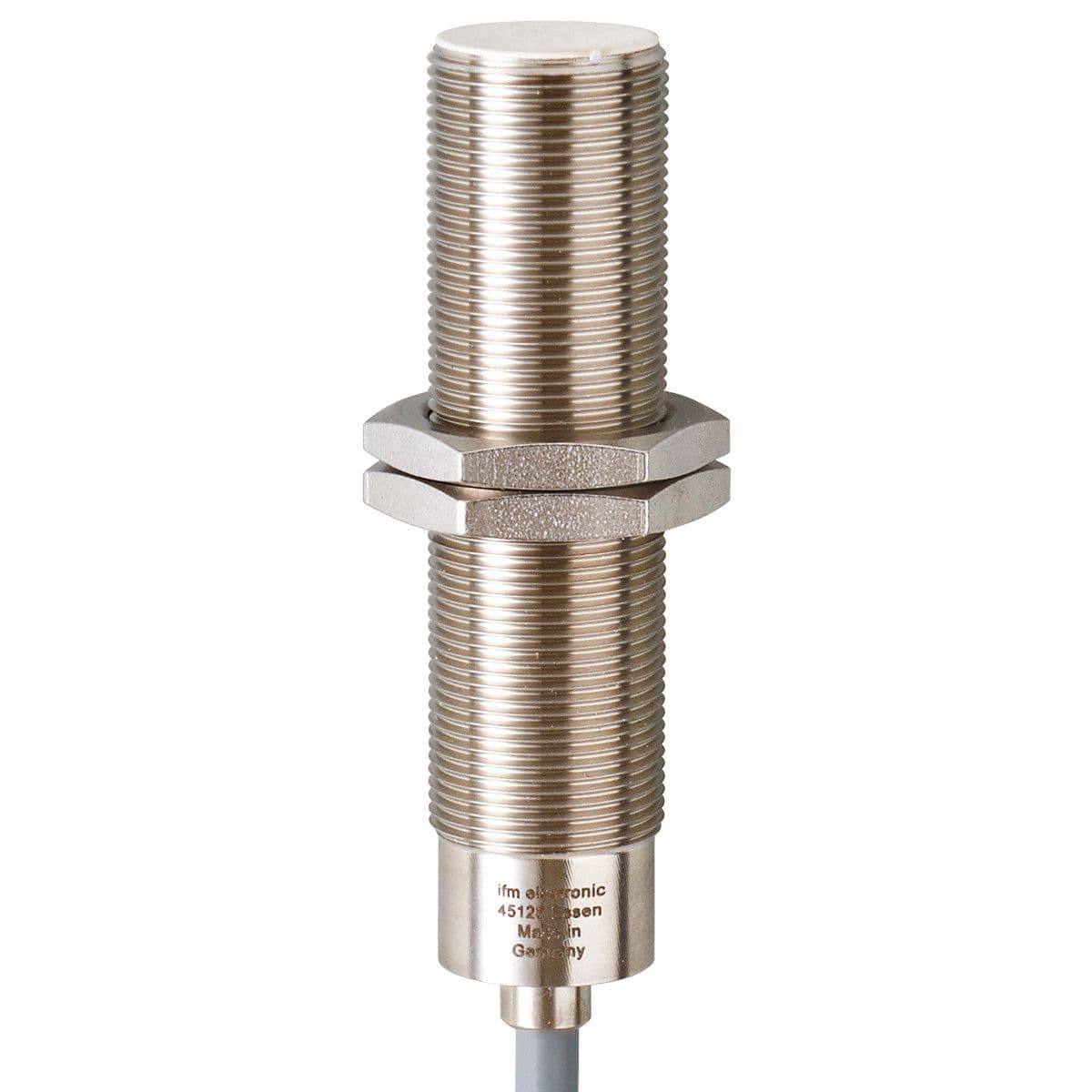

IG6614 ifm Electronic Electronic Components
Part#:IG6614
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Inductive high-temperature sensor, For use in temperatures up to 180 °C, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 5, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 70, Application: high-temperature applications
Product Details
- Housing Threaded type
- Short-circuit proof yes
- Current consumption [mA] < 15
- Max. leakage current [mA] 0.5
- Operating voltage [V] 10...35 DC
- Permanent current rating of switching output DC [mA] 150
- Dimensions [mm] M18 x 1 / L = 70
- Output function normally open
- Protection class III
- Overload protection yes
- Switching frequency DC [Hz] 400
- Application high-temperature applications
- Max. voltage drop switching output DC [V] 2
- Electrical design PNP
- Sensing range [mm] 5
- Reverse polarity protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
