IG6615 ifm Electronic Electronic Components
Part#:IG6615
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

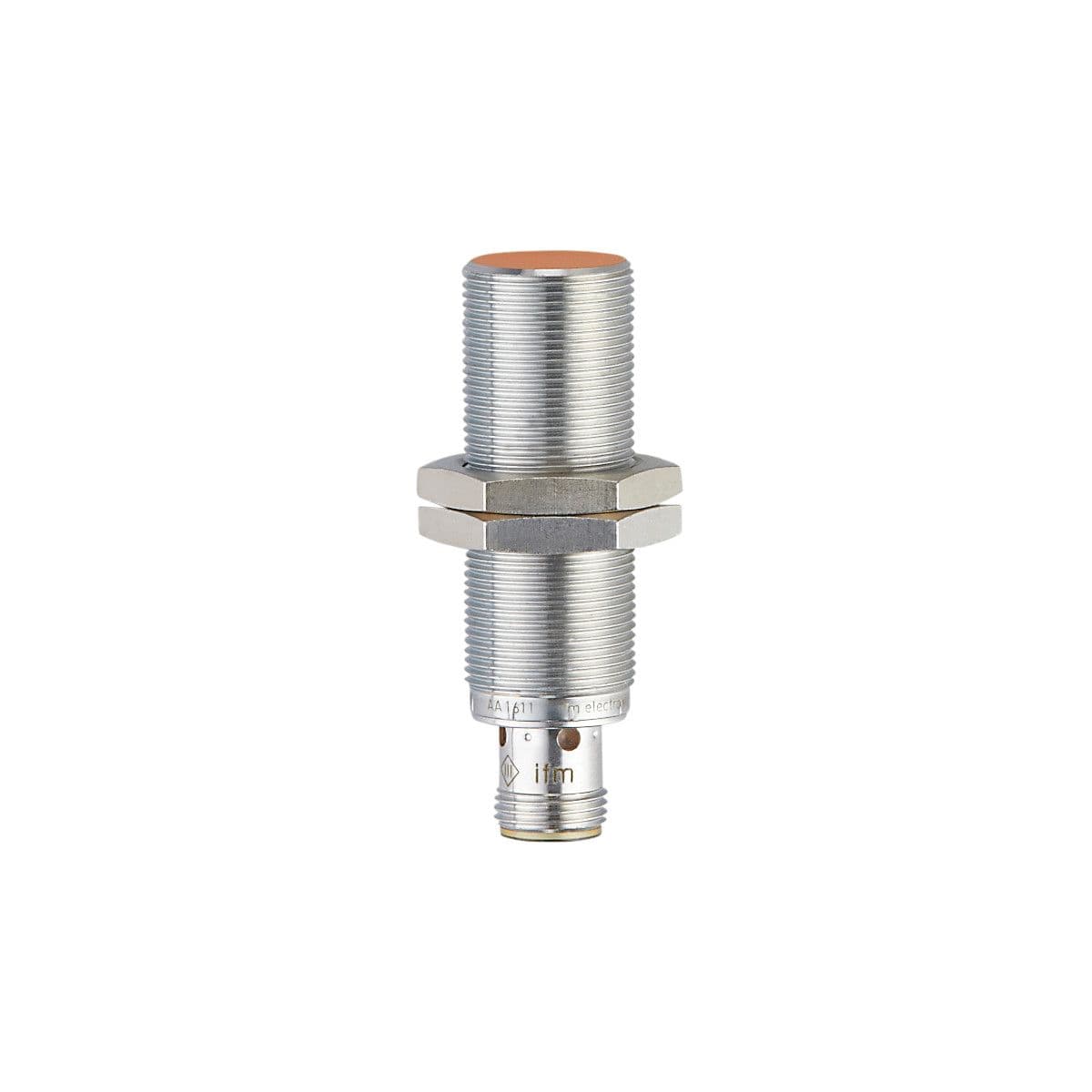

Inductive sensor with IO-Link, For a precise position monitoring on machines, Electrical design: PNP/NPN; (configurable), Output function: normally open / closed; (selectable), Communication interface: IO-Link, Housing: Threaded type, Dimensions [mm]: M18
Product Details
- Protection class III
- Max. voltage drop switching output DC [V] 2.5
- Reverse polarity protection yes
- Operating voltage [V] 10...30 DC
- Dimensions [mm] M18 x 1 / L = 60
- Output function normally open / closed; (selectable)
- Current consumption [mA] < 15
- Permanent current rating of switching output DC [mA] 100
- Overload protection yes
- Communication interface IO-Link
- Switching frequency DC [Hz] 300
- Housing Threaded type
- Electrical design PNP/NPN; (configurable)
- Short-circuit protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
