IGR202 ifm Electronic Electronic Components

Name: IGR202
Brand: ifm Electronic

Part#:IGR202

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

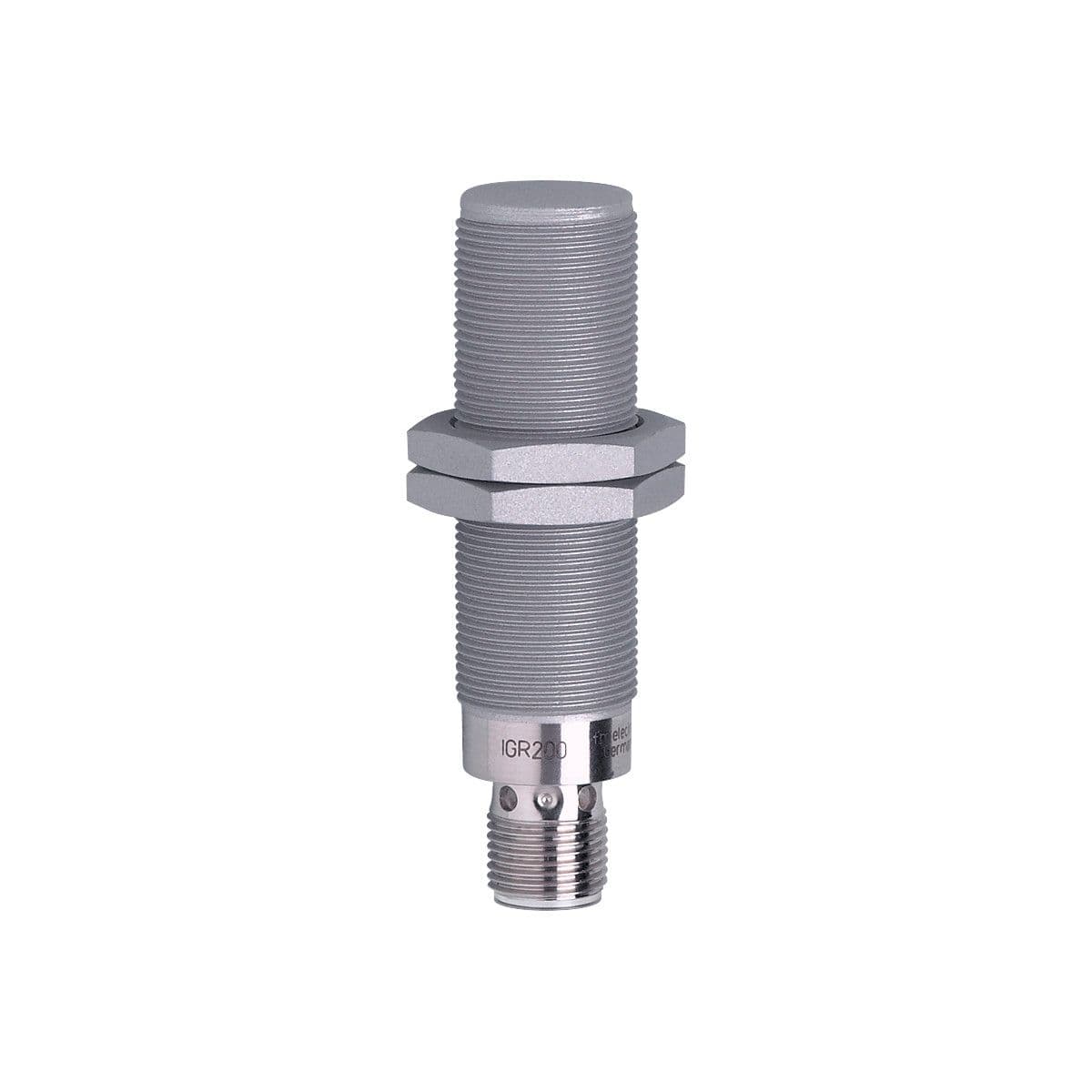

Inductive full-metal sensor, Magnetic-field immune for welding applications, Electrical design: NPN, Output function: normally open, Sensing range [mm]: 6, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 70, System: gold-plated contacts; Increased

Product Details

Housing
Threaded type
Current consumption [mA]
< 20
Switching frequency DC [Hz]
2
Sensing range [mm]
6
Output function
normally open
Reverse polarity protection
yes
Short-circuit protection
yes
Pressure rating [bar]
100
System
gold-plated contacts; Increased sensing range; Full-metal housing; Magnetic-field immune; weld coated
Magnetic-field immune
yes; (pulse duration of the welding current: < 200 ms)
Electrical design
NPN
Overload protection
yes
Application
Sensors for welding applications
Operating voltage [V]
10...36 DC
Note on pressure rating
sensing face
Max. voltage drop switching output DC [V]
2.5
Dimensions [mm]
M18 x 1 / L = 70
Permanent current rating of switching output DC [mA]
100
Protection class
III
Type of short-circuit protection
yes (non-latching)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IGR202 Related Documents

PDF data sheet-1631071406467.pdf

Manufacturer warranty
