IGR205 ifm Electronic Electronic Components

Name: IGR205
Brand: ifm Electronic

Part#:IGR205

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

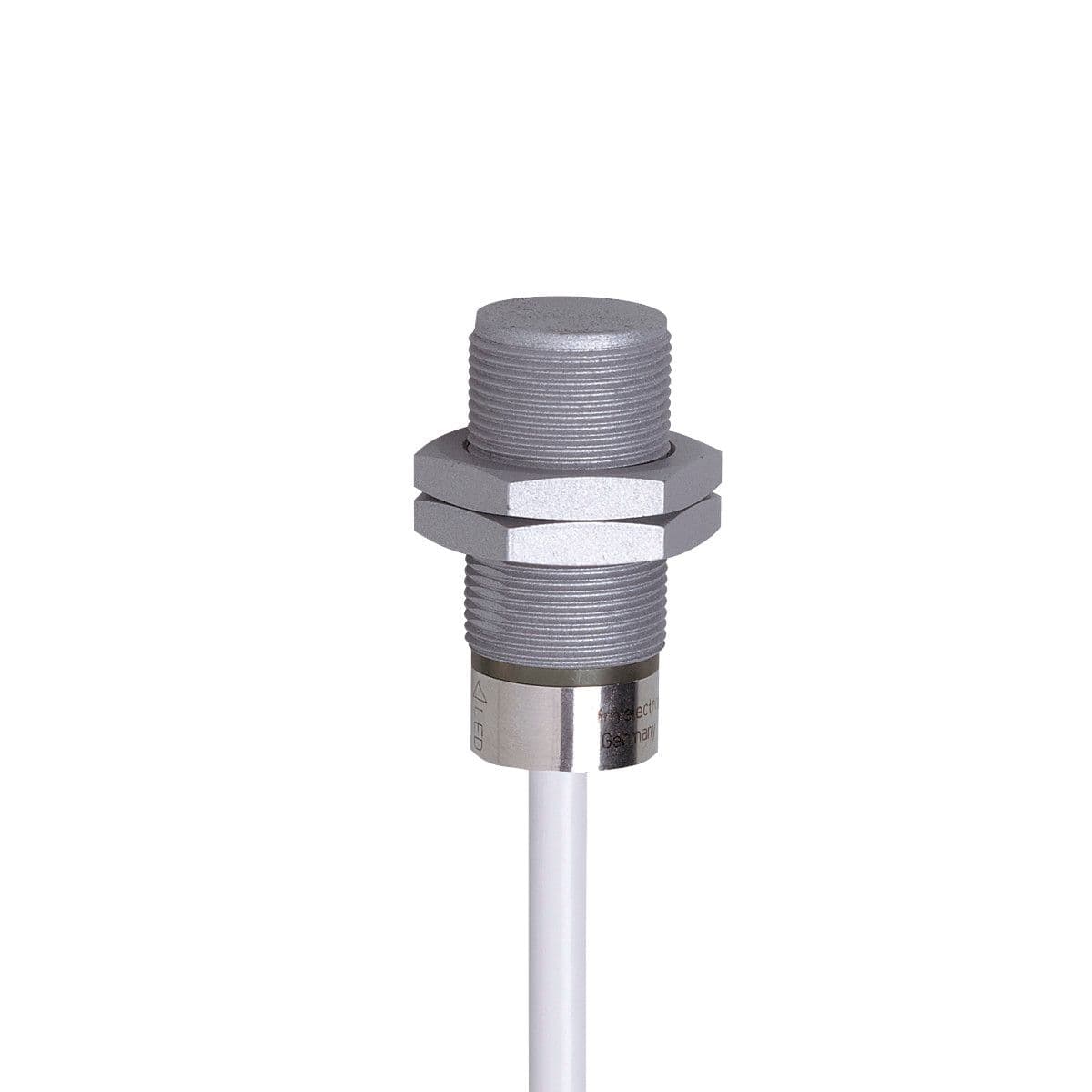

Inductive full-metal sensor, Weld slag resistant coating, Electrical design: PNP/NPN, Output function: normally open, Sensing range [mm]: 6, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 40, System: Increased sensing range; Full-metal housing; op

Product Details

Note on pressure rating
sensing face
Sensing range [mm]
6
Dimensions [mm]
M18 x 1 / L = 40
Overload protection
yes
Electrical design
PNP/NPN
Max. voltage drop switching output DC [V]
2.5
Switching frequency DC [Hz]
50
Housing
Threaded type
Output function
normally open
Short-circuit protection
yes
Application
Sensors for welding applications
Reverse polarity protection
yes
Minimum load current [mA]
2
System
Increased sensing range; Full-metal housing; optical setting aid; weld coated
Protection class
III
Type of short-circuit protection
yes (non-latching)
Max. leakage current [mA]
0.6
Operating voltage [V]
10...36 DC
Pressure rating [bar]
20
Permanent current rating of switching output DC [mA]
100

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IGR205 Related Documents

PDF data sheet-1631071497568.pdf
