IGR204 ifm Electronic Electronic Components
Part#:IGR204
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

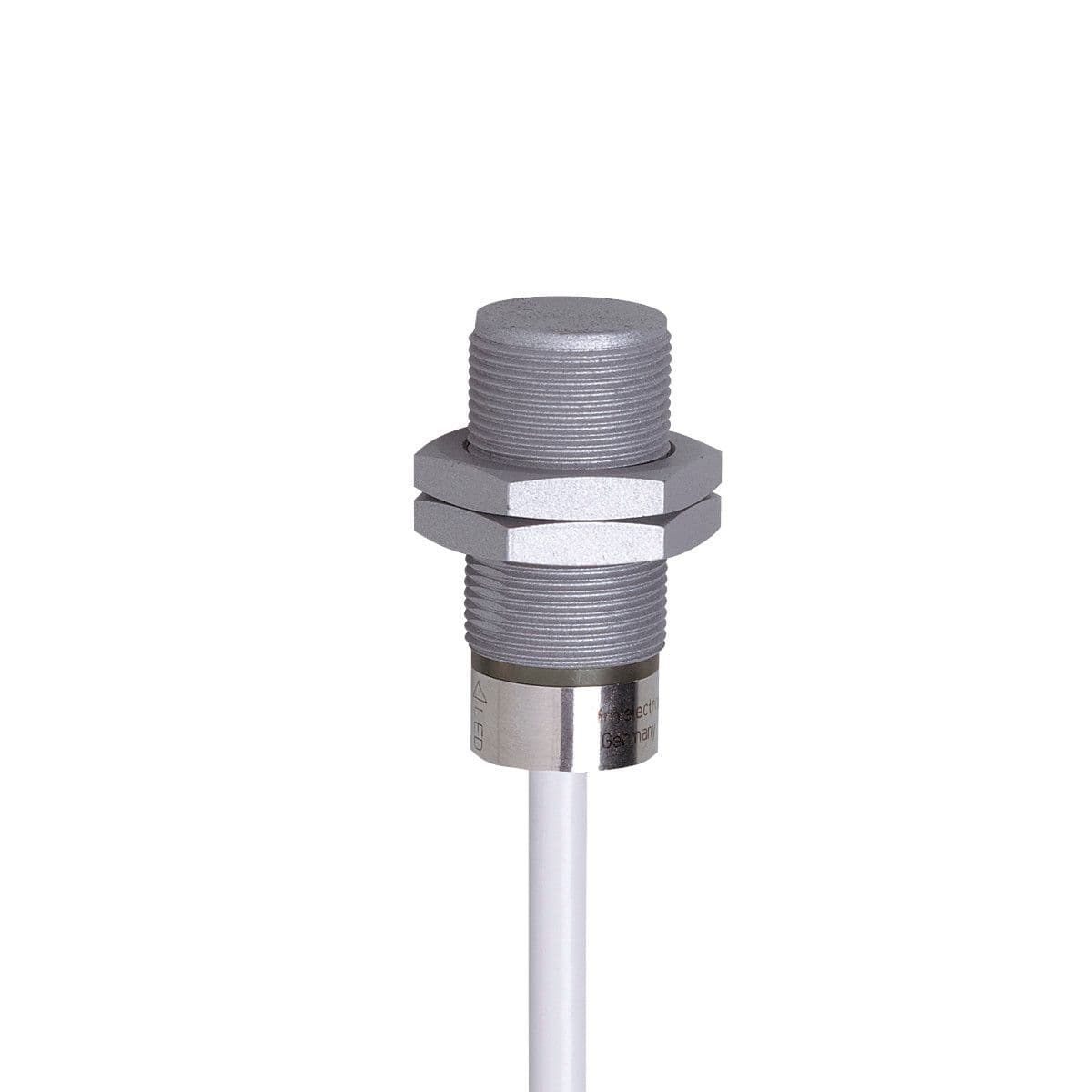

Inductive full-metal sensor, Weld slag resistant coating, Electrical design: PNP/NPN, Output function: normally open, Sensing range [mm]: 6, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 40, System: Increased sensing range; Full-metal housing; op
Product Details
- System Increased sensing range; Full-metal housing; optical setting aid; weld coated
- Max. leakage current [mA] 0.6
- Application Sensors for welding applications
- Minimum load current [mA] 2
- Housing Threaded type
- Max. voltage drop switching output DC [V] 2.5
- Operating voltage [V] 10...36 DC
- Switching frequency DC [Hz] 50
- Reverse polarity protection yes
- Short-circuit protection yes
- Sensing range [mm] 6
- Dimensions [mm] M18 x 1 / L = 40
- Output function normally open
- Overload protection yes
- Note on pressure rating sensing face
- Pressure rating [bar] 20
- Permanent current rating of switching output DC [mA] 100
- Electrical design PNP/NPN
- Type of short-circuit protection yes (non-latching)
- Protection class III
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
