IGT203 ifm Electronic Electronic Components
Part#:IGT203
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

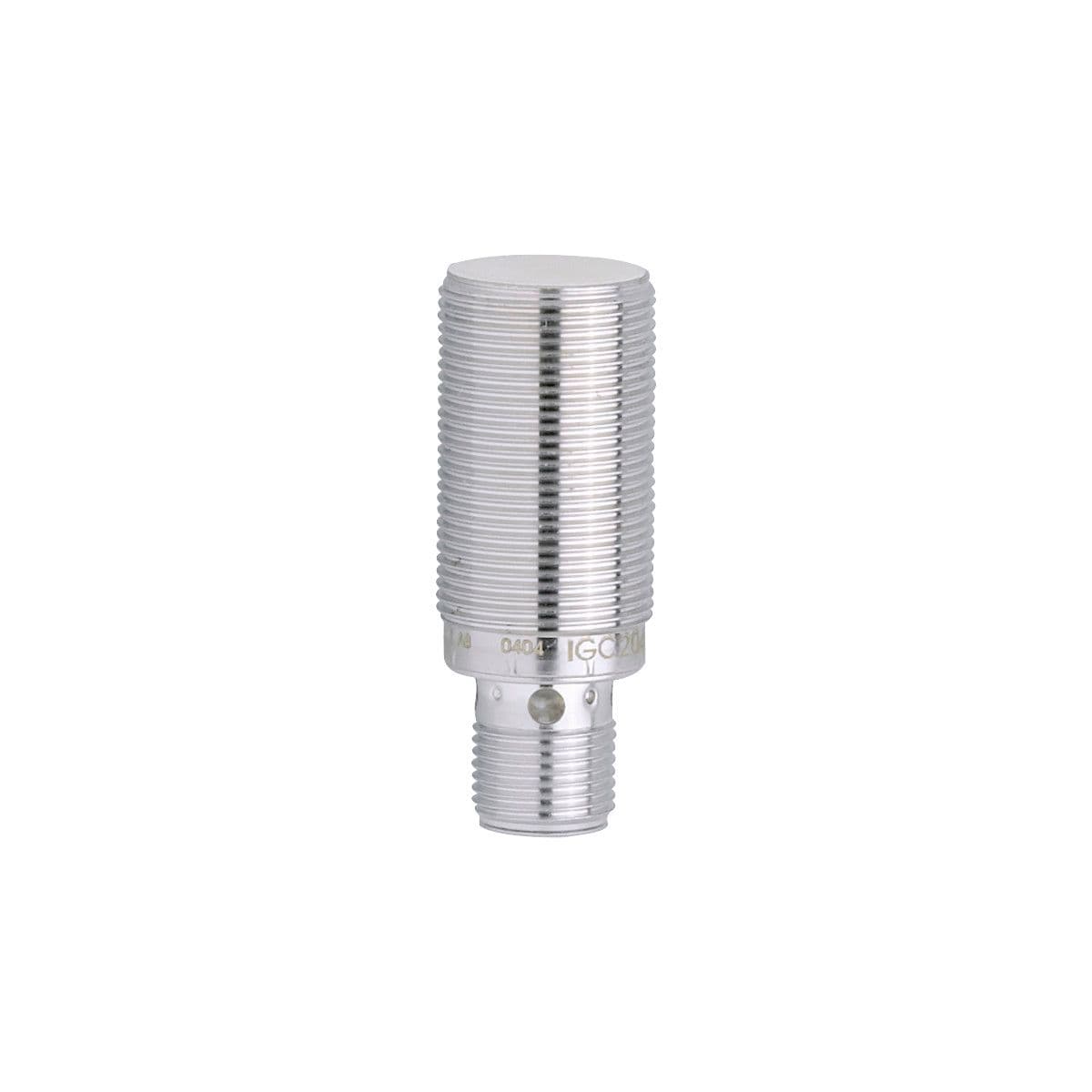

Inductive sensor, Wide operating temperature range, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 8, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 46, System: gold-plated contacts; Increased sensing range, Applicatio
Product Details
- Output function normally open
- Max. voltage drop switching output DC [V] 2.5
- Sensing range [mm] 8
- Permanent current rating of switching output DC [mA] 100
- Dimensions [mm] M18 x 1 / L = 46
- Application regular cleaning processes
- Overload protection yes
- Operating voltage [V] 10...36 DC
- Type of short-circuit protection yes (non-latching)
- Current consumption [mA] 10; (24 V)
- Switching frequency DC [Hz] 600
- Protection class II
- System gold-plated contacts; Increased sensing range
- Electrical design PNP
- Short-circuit protection yes
- Housing Threaded type
- Reverse polarity protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IGT203 ifm Electronic
