IGT249 ifm Electronic Electronic Components

Name: IGT249
Brand: ifm Electronic

Part#:IGT249

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

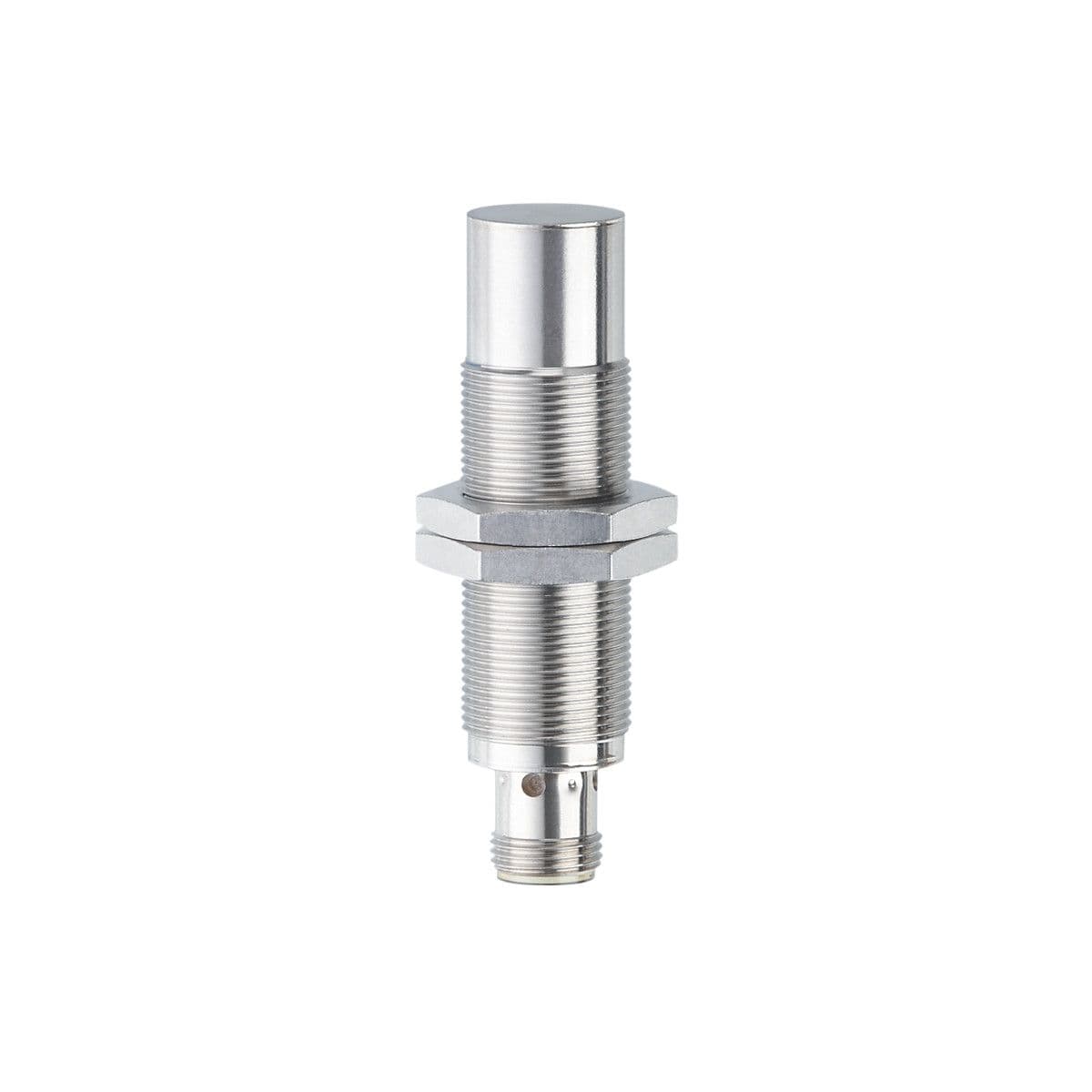

Inductive full-metal sensor, Robust full-metal stainless steel housing for use in the food and beverage industry, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 12, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 70, Sy

Product Details

Dimensions [mm]
M18 x 1 / L = 70
Sensing range [mm]
12
Short-circuit protection
yes
System
gold-plated contacts; Increased sensing range; Full-metal housing
Current consumption [mA]
< 25
Application
constant cleaning with aggressive cleaning agents; regular cleaning processes
Max. voltage drop switching output DC [V]
2.5
Note on pressure rating
sensing face
Pressure rating [bar]
100
Reverse polarity protection
yes
Switching frequency DC [Hz]
250
Housing
Threaded type
Permanent current rating of switching output DC [mA]
100
Protection class
III
Operating voltage [V]
10...30 DC
Type of short-circuit protection
yes (non-latching)
Output function
normally open
Overload protection
yes
Electrical design
PNP

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IGT249 Related Documents

PDF data sheet-1631071254113.pdf
