II0054 ifm Electronic Electronic Components

Name: II0054
Brand: ifm Electronic

Part#:II0054

Category:Electronic Components

Product Lifecycle:Active

Product description

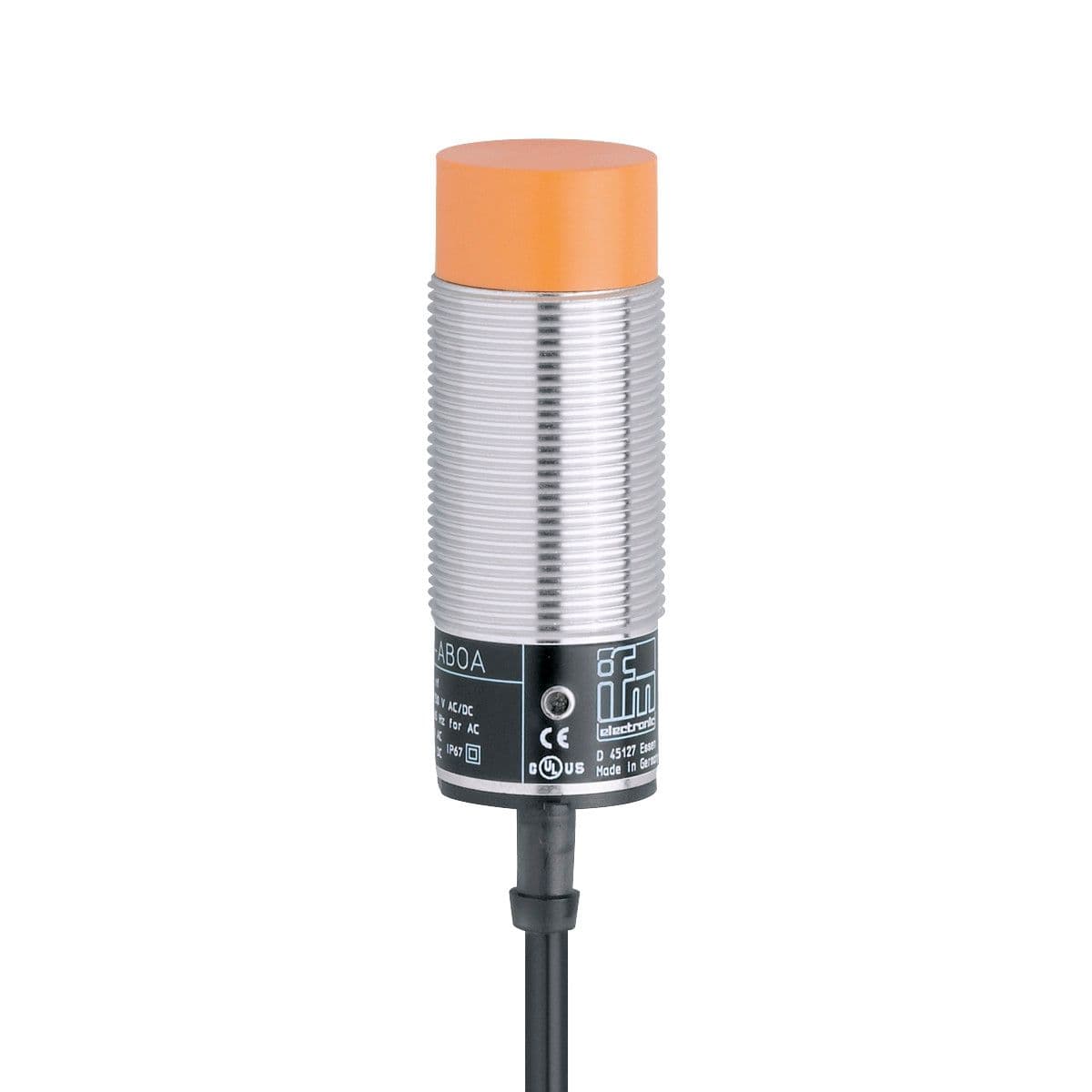

Inductive sensor, With combined AC/DC output stage, Output function: normally open, Sensing range [mm]: 15, Housing: Threaded type, Dimensions [mm]: M30 x 1.5 / L = 81

Product Details

Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Minimum load current [mA]
5
Switching frequency DC [Hz]
50
Max. voltage drop switching output AC [V]
6.5
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))
Reverse polarity protection
no
Output function
normally open
Sensing range [mm]
15
Max. voltage drop switching output DC [V]
6
Dimensions [mm]
M30 x 1.5 / L = 81
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Operating voltage [V]
20...250 AC/DC
Switching frequency AC [Hz]
25
Housing
Threaded type
Short-circuit proof
no
Overload protection
no
Protection class
II
Permanent current rating of switching output DC [mA]
100

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

II0054 Related Documents

PDF data sheet-1631071563597.pdf CAD_DWG_100_0081.ZIP-1631071563604.zip CAD_DXF_100_0081.ZIP-1631071563615.zip CAD_STP_100_0081.ZIP-1631071563610.zip CAD_SAT_100_0081.ZIP-1631071563612.zip
