II0094 ifm Electronic Electronic Components
Part#:II0094
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

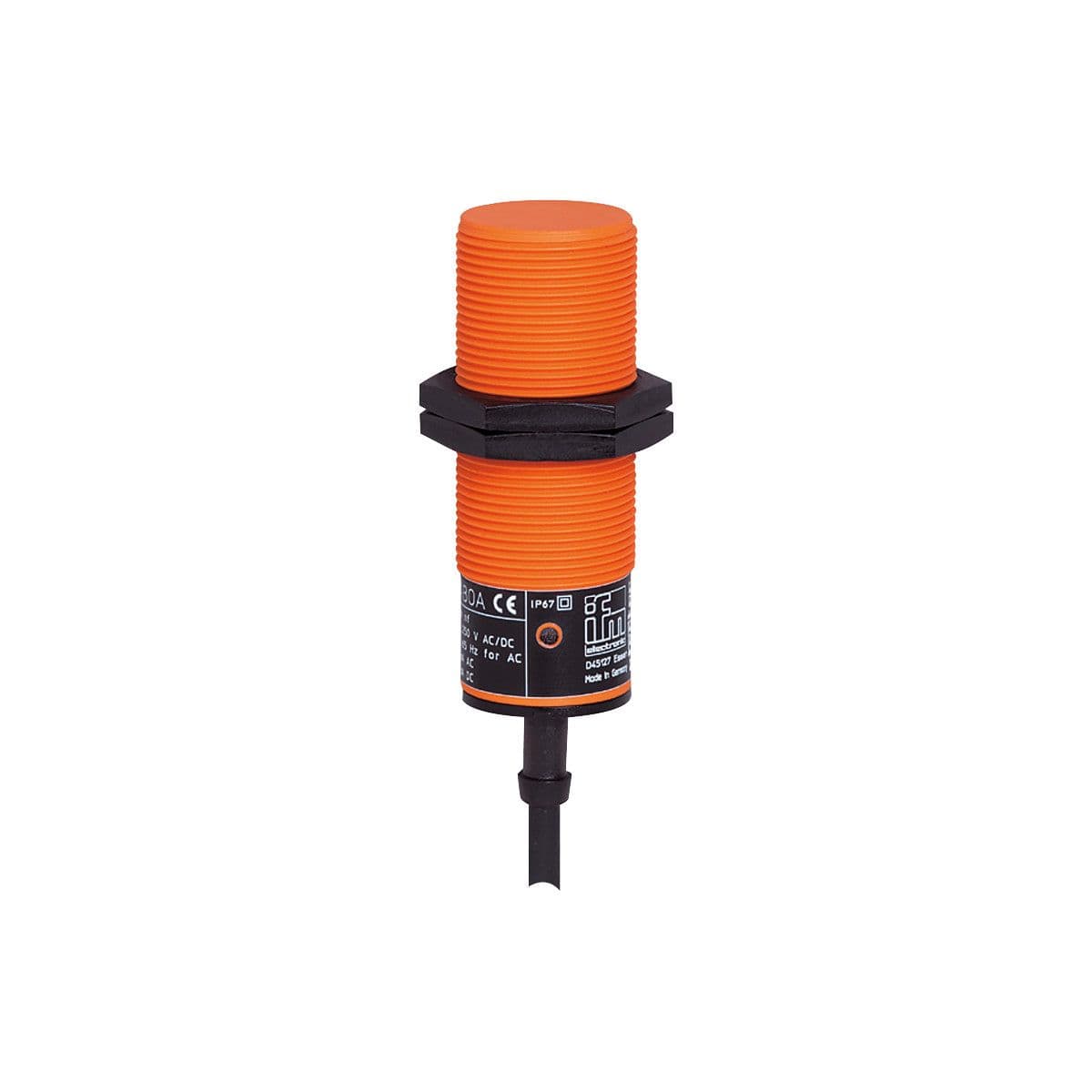

Inductive sensor, With combined AC/DC output stage, Output function: normally closed, Sensing range [mm]: 10, Housing: Threaded type, Dimensions [mm]: M30 x 1.5 / L = 81
Product Details
- Operating voltage [V] 20...250 AC/DC
- Permanent current rating of switching output AC [mA] 250; (350 (...50 °C))
- Reverse polarity protection no
- Switching frequency AC [Hz] 25
- Housing Threaded type
- Dimensions [mm] M30 x 1.5 / L = 81
- Max. voltage drop switching output AC [V] 6.5
- Overload protection no
- Output function normally closed
- Minimum load current [mA] 5
- Switching frequency DC [Hz] 50
- Max. voltage drop switching output DC [V] 6
- Max. leakage current [mA] 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
- Sensing range [mm] 10
- Short-circuit proof no
- Protection class II
- Short-time current rating of switching output [mA] 2200; (20 ms / 0,5 Hz)
- Permanent current rating of switching output DC [mA] 100
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
