IIC207 ifm Electronic Electronic Components

Name: IIC207
Brand: ifm Electronic

Part#:IIC207

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

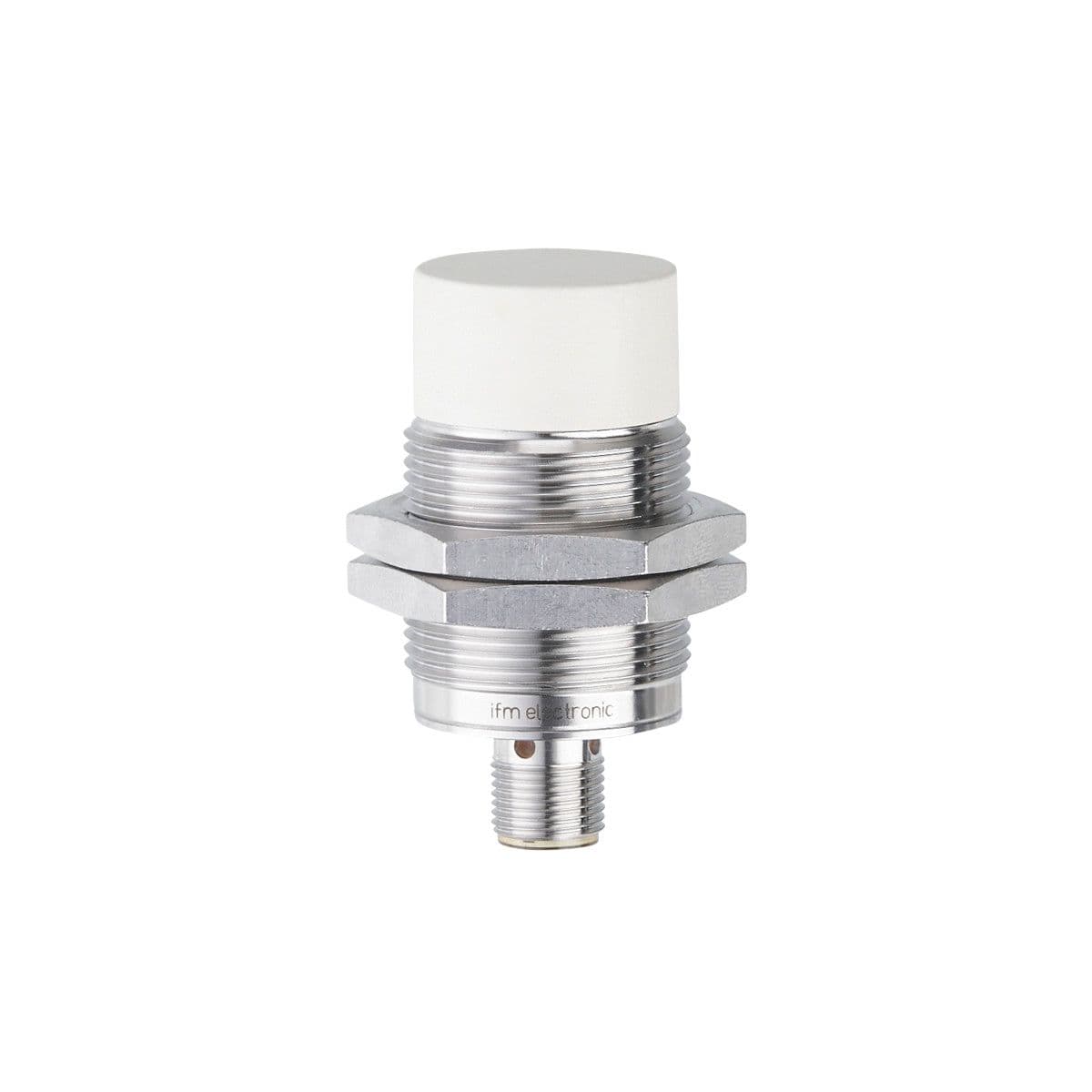

Inductive sensor, For use in machine tools and metalworking, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 22, Housing: Threaded type, Dimensions [mm]: M30 x 1.5 / L = 60, System: gold-plated contacts; Increased sensing range

Product Details

Current consumption [mA]
10; (24 V)
Overload protection
yes
Sensing range [mm]
22
Housing
Threaded type
System
gold-plated contacts; Increased sensing range
Short-circuit protection
yes
Electrical design
PNP
Dimensions [mm]
M30 x 1.5 / L = 60
Application
Oils and coolants
Reverse polarity protection
yes
Operating voltage [V]
10...36 DC
Protection class
II
Max. voltage drop switching output DC [V]
2.5
Output function
normally open
Type of short-circuit protection
yes (non-latching)
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
100

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IIC207 Related Documents

CAD_SAT_100_0248.ZIP-1631071560859.zip PDF data sheet-1631071560863.pdf CAD_STP_100_0248.ZIP-1631071560861.zip CAD_DXF_100_0248.ZIP-1631071560869.zip CAD_DWG_100_0248.ZIP-1631071560865.zip

Manufacturer warranty
