IIC210 ifm Electronic Electronic Components
Part#:IIC210
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

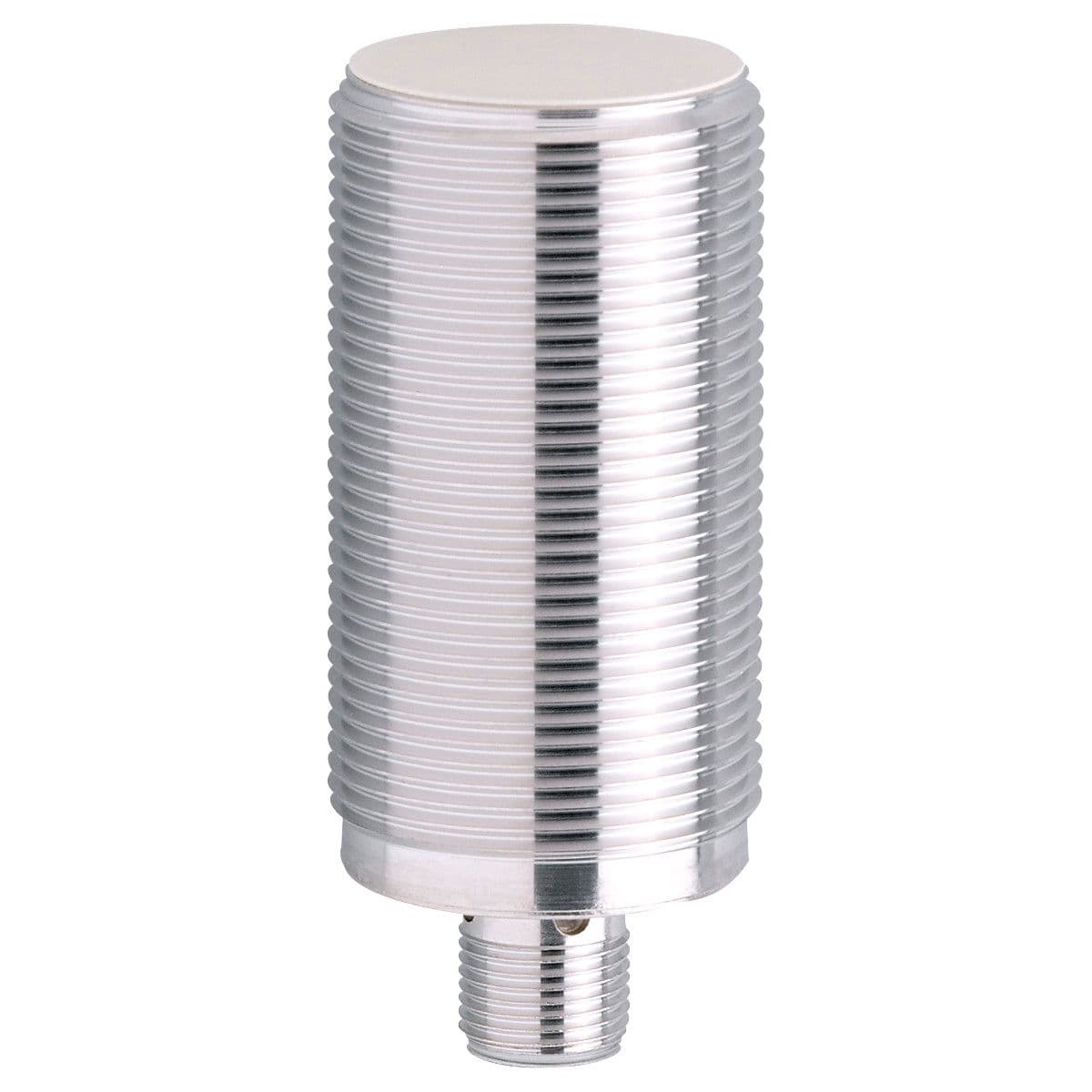

Inductive sensor, For use in machine tools and metalworking, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 15, Housing: Threaded type, Dimensions [mm]: M30 x 1.5 / L = 70, System: gold-plated contacts; Increased sensing range
Product Details
- Dimensions [mm] M30 x 1.5 / L = 70
- Protection class II
- Housing Threaded type
- Reverse polarity protection yes
- Permanent current rating of switching output DC [mA] 100
- Sensing range [mm] 15
- Type of short-circuit protection yes (non-latching)
- Switching frequency DC [Hz] 100
- Short-circuit protection yes
- Application Oils and coolants
- Electrical design PNP
- Current consumption [mA] < 10
- System gold-plated contacts; Increased sensing range
- Operating voltage [V] 10...36 DC
- Max. voltage drop switching output DC [V] 2.5
- Output function normally open
- Overload protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
