IIC228 ifm Electronic Electronic Components

Name: IIC228
Brand: ifm Electronic

Part#:IIC228

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

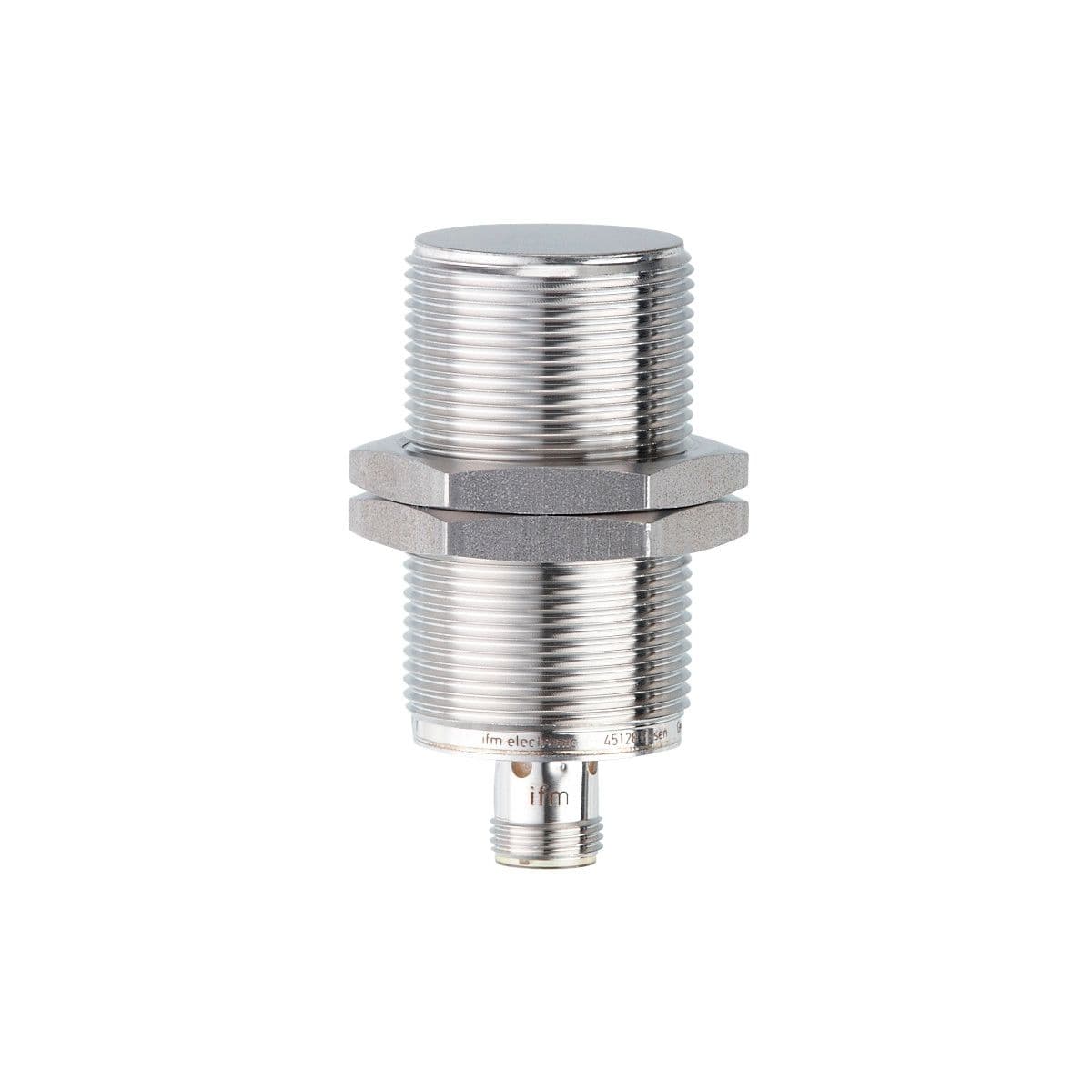

Inductive full-metal sensor, For use in machine tools and metalworking, Electrical design: PNP, Output function: normally closed, Sensing range [mm]: 10, Housing: Threaded type, Dimensions [mm]: M30 x 1.5 / L = 65, System: gold-plated contacts; Full-metal

Product Details

Permanent current rating of switching output DC [mA]
100
Housing
Threaded type
Note on pressure rating
sensing face
Current consumption [mA]
< 20
Application
Oils and coolants
Switching frequency DC [Hz]
50
Output function
normally closed
Sensing range [mm]
10
Short-circuit protection
yes
Dimensions [mm]
M30 x 1.5 / L = 65
Operating voltage [V]
10...30 DC
Type of short-circuit protection
yes (non-latching)
Electrical design
PNP
Max. voltage drop switching output DC [V]
2.5
Pressure rating [bar]
100
Protection class
III
System
gold-plated contacts; Full-metal housing
Reverse polarity protection
yes
Overload protection
yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IIC228 Related Documents

CAD_STP_100_0819.ZIP-1631071362255.zip CAD_DWG_100_0819.ZIP-1631071362272.zip PDF data sheet-1631071362267.pdf CAD_DXF_100_0819.ZIP-1631071362257.zip CAD_SAT_100_0819.ZIP-1631071362270.zip
