IL5004 ifm Electronic Electronic Components
Part#:IL5004
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

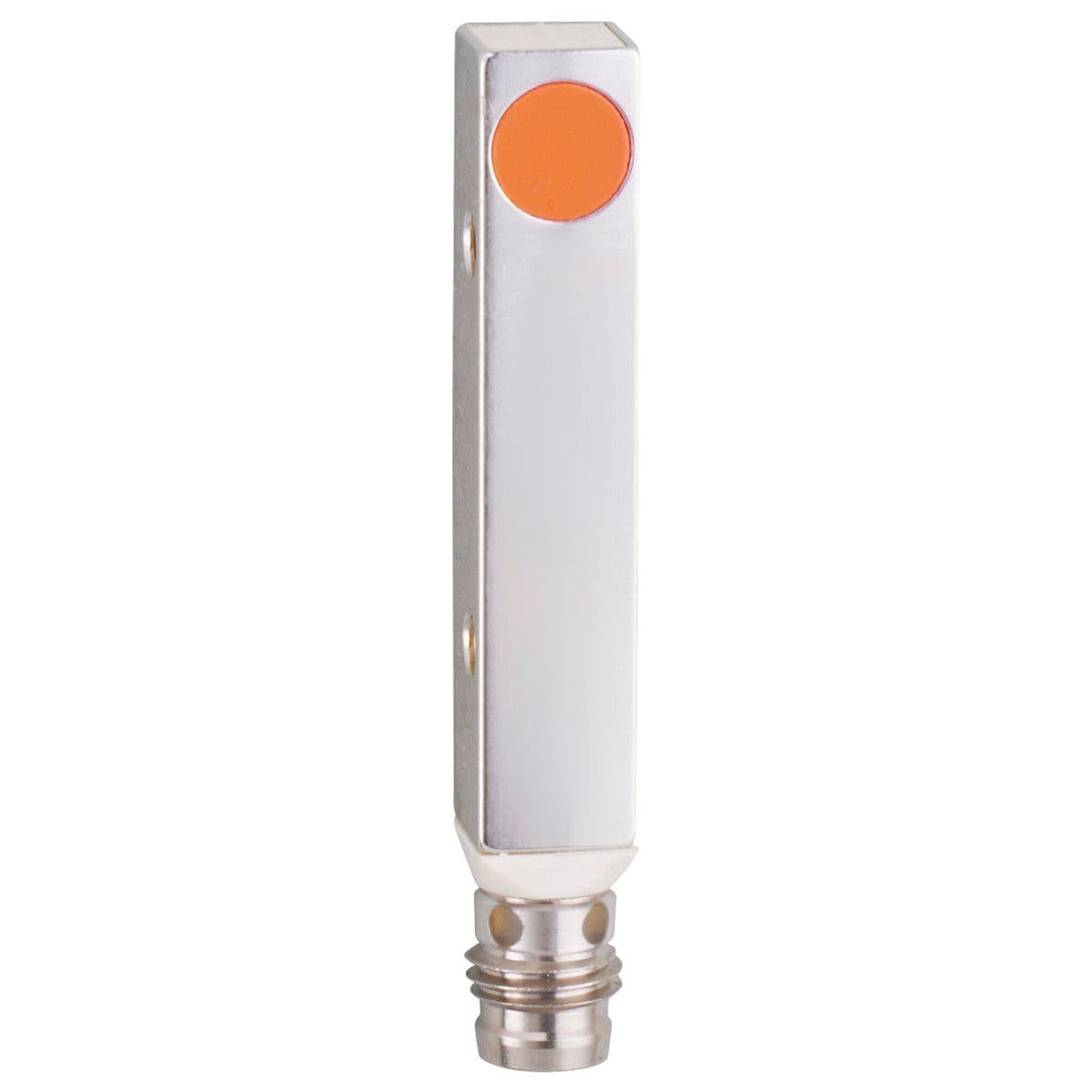

Inductive sensor, Particularly compact rectangular design, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2, Housing: rectangular, Dimensions [mm]: 40 x 8 x 8
Product Details
- Electrical design PNP
- Switching frequency DC [Hz] 2000
- Dimensions [mm] 40 x 8 x 8
- Type of short-circuit protection yes (non-latching)
- Housing rectangular
- Overload protection yes
- Reverse polarity protection yes
- Permanent current rating of switching output DC [mA] 250
- Operating voltage [V] 10...36 DC
- Max. voltage drop switching output DC [V] 1.6
- Sensing range [mm] 2
- Short-circuit protection yes
- Current consumption [mA] 15; (24 V)
- Output function normally open
- Protection class III
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IL5004 ifm Electronic
