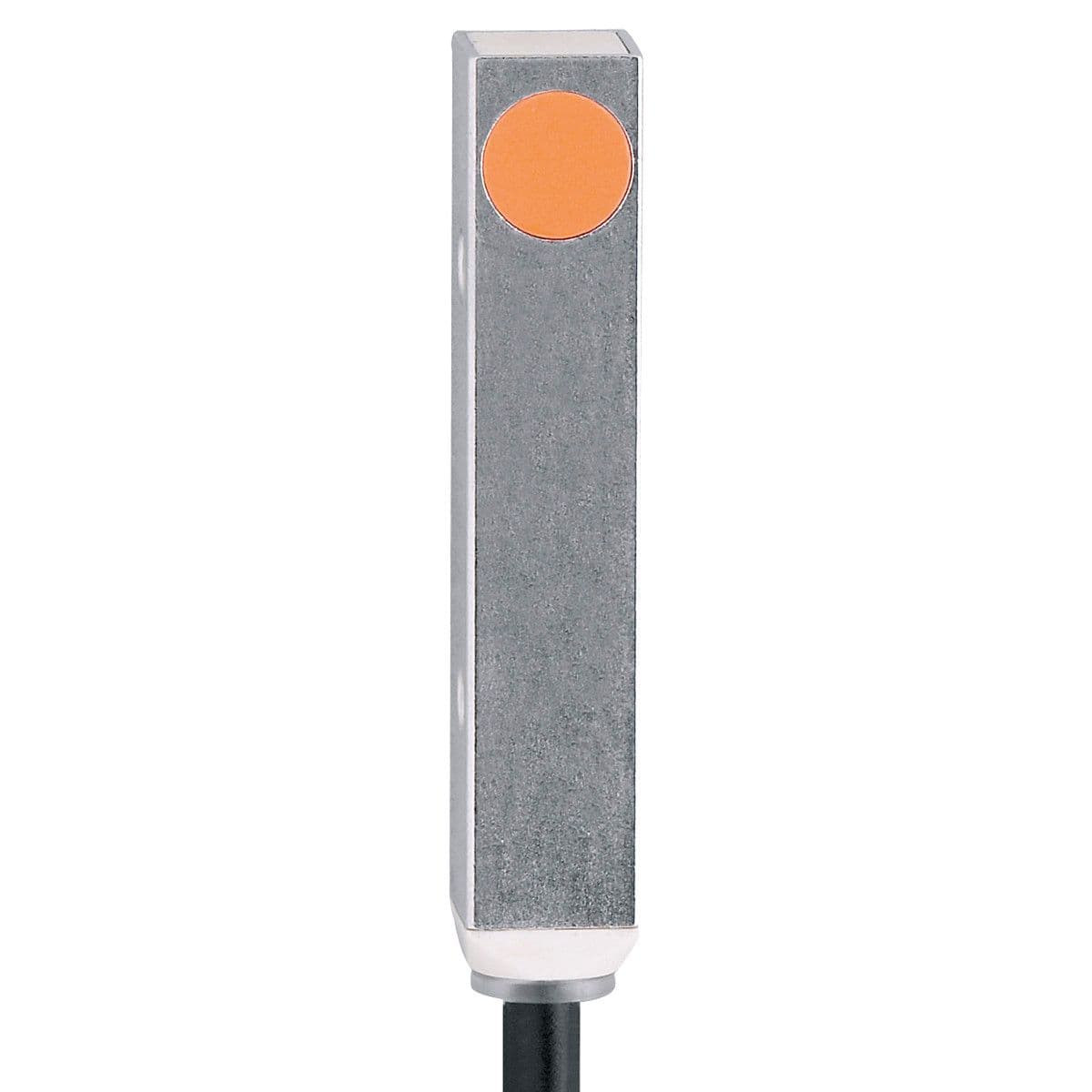

IL5020 ifm Electronic Electronic Components
Part#:IL5020
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Inductive sensor, Particularly compact rectangular design, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2.5, Housing: rectangular, Dimensions [mm]: 40 x 8 x 8
Product Details
- Dimensions [mm] 40 x 8 x 8
- Overload protection yes
- Sensing range [mm] 2.5
- Permanent current rating of switching output DC [mA] 250
- Protection class III
- Output function normally open
- Switching frequency DC [Hz] 2000
- Current consumption [mA] 15; (24 V)
- Short-circuit protection yes
- Operating voltage [V] 10...36 DC; (limited voltage requirements to UL 508: electrically isolated operating voltage protected by an overcurrent device)
- Housing rectangular
- Type of short-circuit protection yes (non-latching)
- Reverse polarity protection yes
- Electrical design PNP
- Max. voltage drop switching output DC [V] 2.5
