IQ2001 ifm Electronic Electronic Components
Part#:IQ2001
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

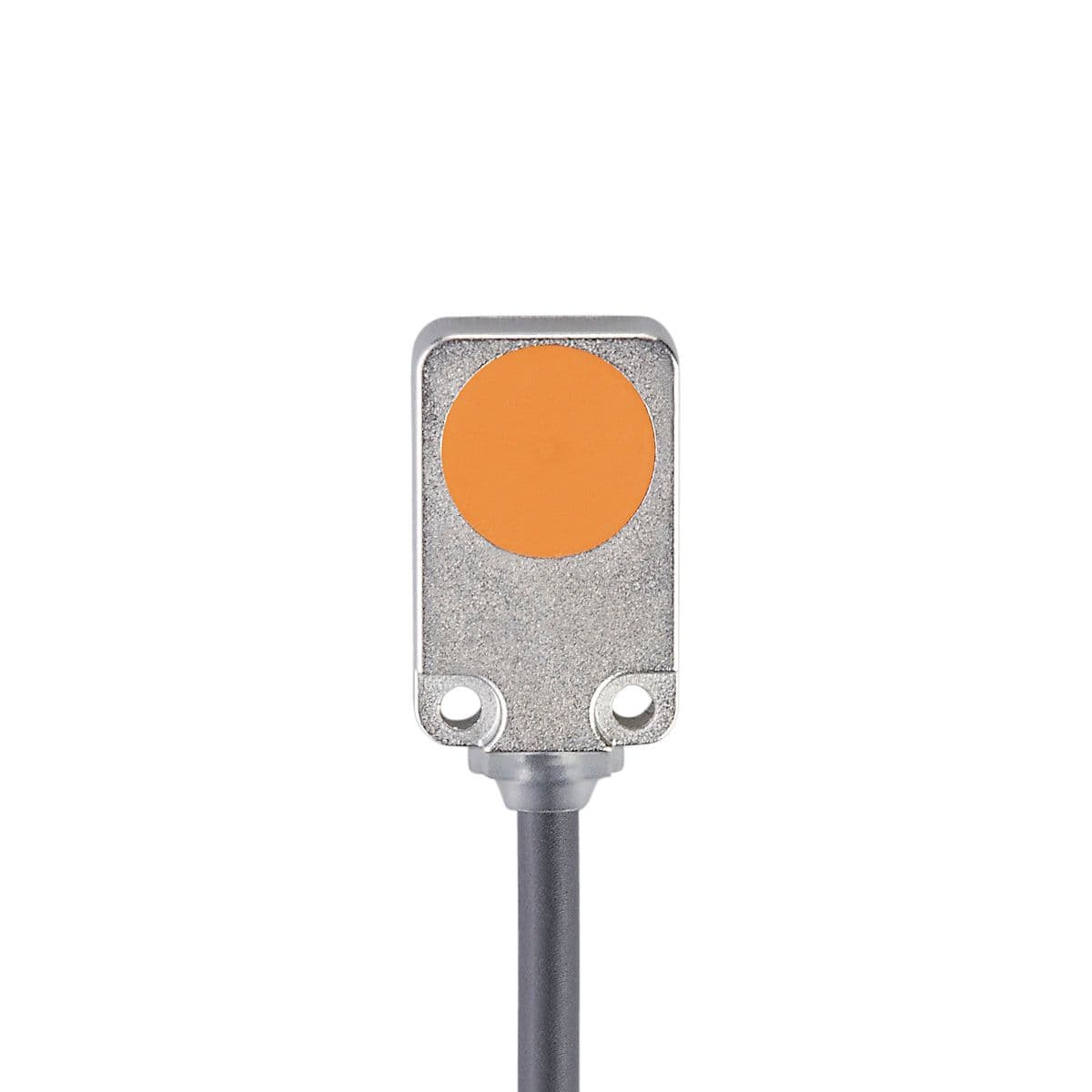

Inductive sensor, Flush mounting and high temperature range improves sensor life and robustness, Electrical design: PNP, Output function: normally closed, Sensing range [mm]: 8, Housing: rectangular, Dimensions [mm]: 20 x 8 x 32, System: Drag chain suitab
Product Details
- Protection class III
- Output function normally closed
- Sensing range [mm] 8
- Permanent current rating of switching output DC [mA] 100
- Current consumption [mA] < 10
- Housing rectangular
- Max. voltage drop switching output DC [V] 2.5
- Operating voltage [V] 10...30 DC
- Reverse polarity protection yes
- Dimensions [mm] 20 x 8 x 32
- Switching frequency DC [Hz] 400
- System Drag chain suitability; Increased sensing range
- Short-circuit protection yes
- Electrical design PNP
- Overload protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IQ2001 ifm Electronic
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare IQ2001 with other Electronic Components products
Protection class
Output function
Sensing range [mm]
Permanent current rating ...
Current consumption [mA]
Housing
Max. voltage drop switchi...
Operating voltage [V]
Reverse polarity protecti...
Dimensions [mm]
Selected product
IQ2001
ifm Electronic
Inductive sensor, Flush mounting and high temperature range improves sensor life and robustness, Ele...
Protection classIII
Output functionnormally closed
Sensing range [mm]8
Permanent current rating of switching output DC [mA]100
Current consumption [mA]< 10
Housingrectangular
Max. voltage drop switching output DC [V]2.5
Operating voltage [V]10...30 DC
Reverse polarity protectionyes
Dimensions [mm]20 x 8 x 32
1020510000
Weidmuller
Feed-through terminal, Screw connection, 35 mm², 1000 V, 125 A, black, WDU 35 SW
Protection class-
Output function-
Sensing range [mm]-
Permanent current rating of switching output DC [mA]-
Current consumption [mA]-
Housing-
Max. voltage drop switching output DC [V]-
Operating voltage [V]-
Reverse polarity protection-
Dimensions [mm]-
Protection class-
Output function-
Sensing range [mm]-
Permanent current rating of switching output DC [mA]-
Current consumption [mA]-
Housing-
Max. voltage drop switching output DC [V]-
Operating voltage [V]-
Reverse polarity protection-
Dimensions [mm]-
About the manufacturer
Advantage Electric Supply is an authorized ifm Electronic distributor, bringing you innovative industrial automation solutions from a trusted manufacturer. ifm Electronic specializes in developing cutting-edge sensors and control systems that are vital for optimizing industrial processes across a wide spectrum of industries, including automotive, food and beverage, chemical, and more. Their compre...
