IQ2002 ifm Electronic Electronic Components
Part#:IQ2002
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

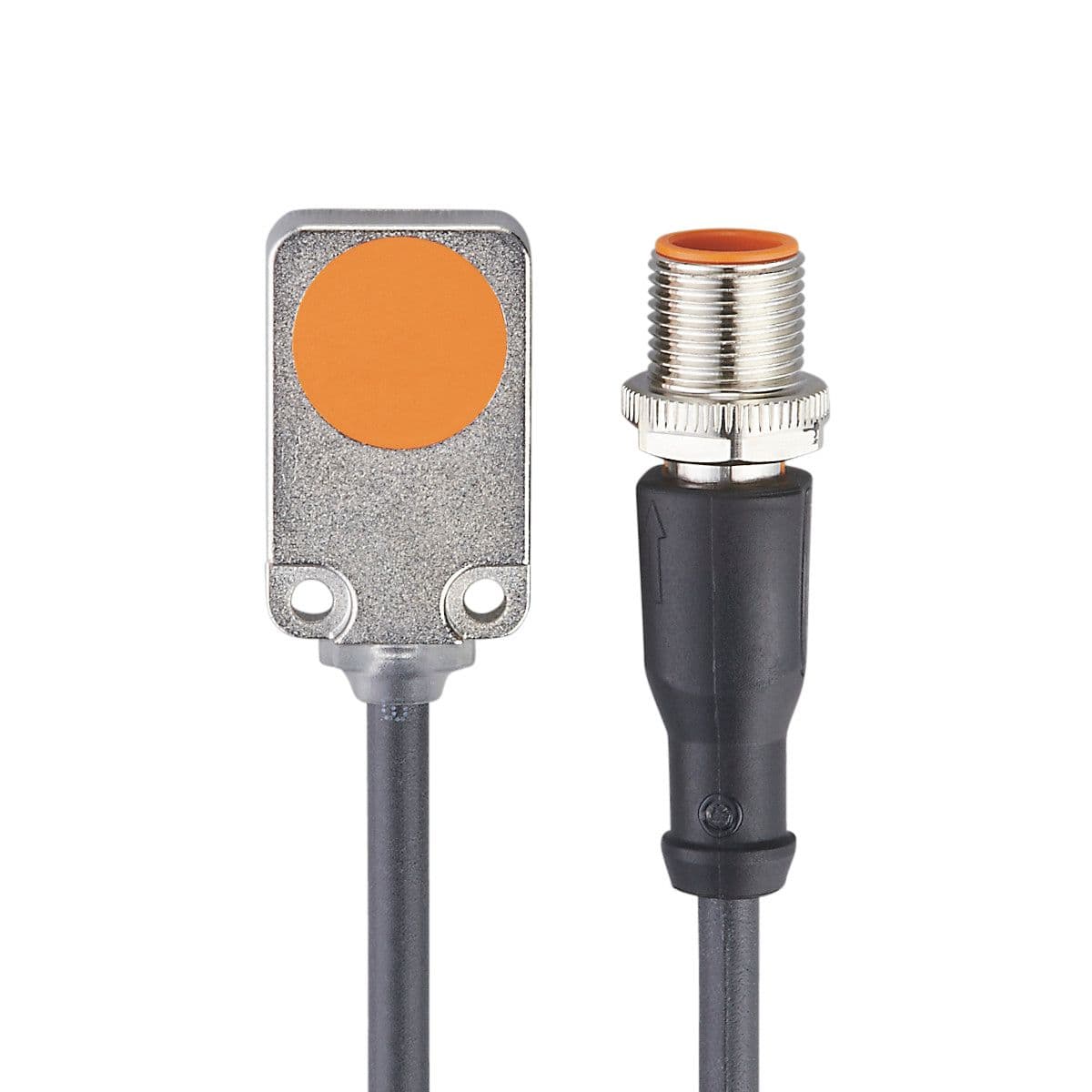

Inductive sensor, Flush mounting and high temperature range improves sensor life and robustness, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 8, Housing: rectangular, Dimensions [mm]: 20 x 8 x 32, System: Increased sensing r
Product Details
- Current consumption [mA] < 10
- Switching frequency DC [Hz] 400
- Housing rectangular
- Electrical design PNP
- System Increased sensing range
- Max. voltage drop switching output DC [V] 2.5
- Operating voltage [V] 10...30 DC
- Dimensions [mm] 20 x 8 x 32
- Sensing range [mm] 8
- Short-circuit protection yes
- Permanent current rating of switching output DC [mA] 100
- Reverse polarity protection yes
- Protection class III
- Output function normally open
- Overload protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
