IT5021 ifm Electronic Electronic Components
Part#:IT5021
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

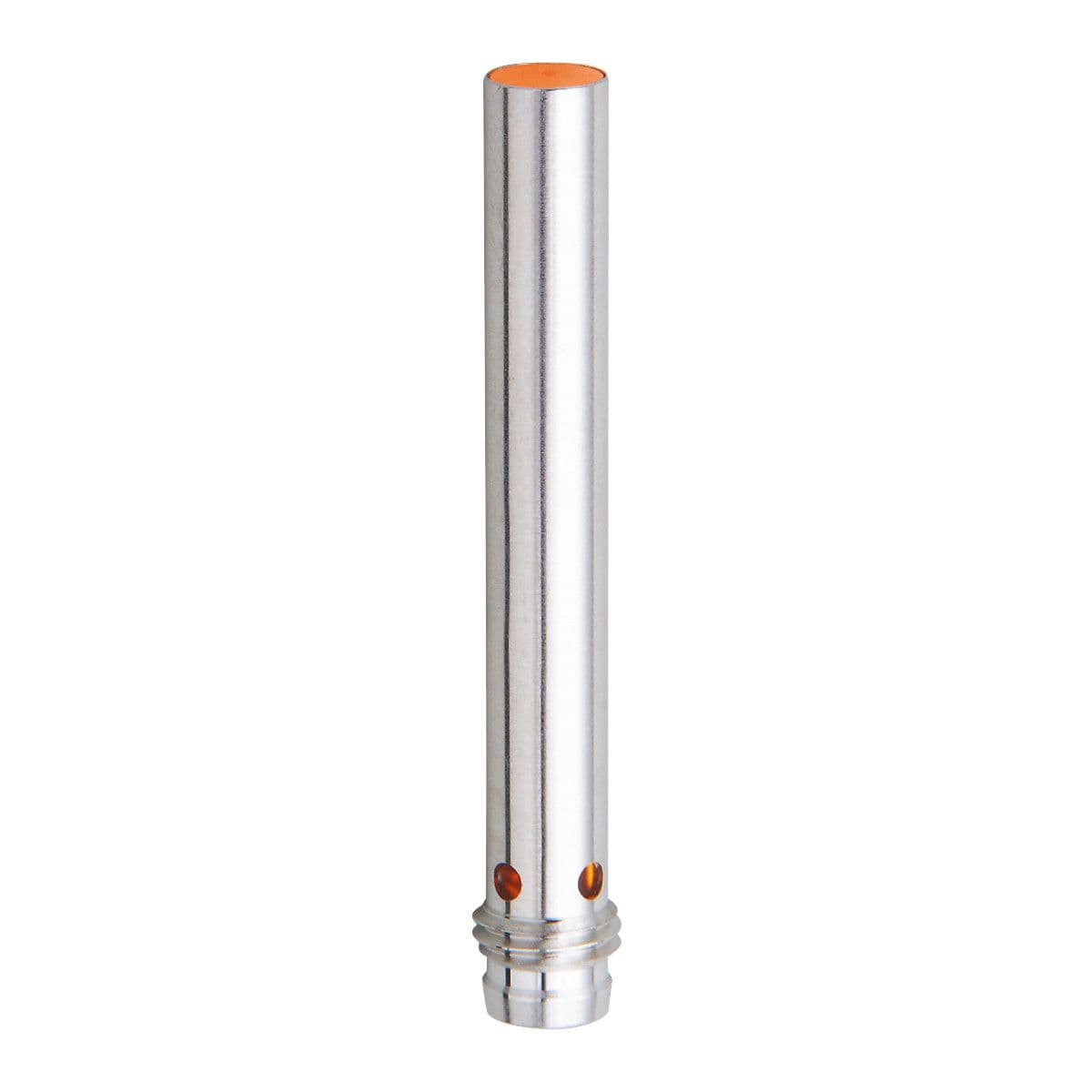

Inductive sensor, For use where space is restricted, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 1, Housing: tubular, Dimensions [mm]: Ø 6.5 / L = 50
Product Details
- Operating voltage [V] 10...36 DC
- Permanent current rating of switching output DC [mA] 200
- Max. voltage drop switching output DC [V] 2.5
- Output function normally open
- Short-circuit protection yes
- Dimensions [mm] Ø 6.5 / L = 50
- Electrical design PNP
- Switching frequency DC [Hz] 2000
- Sensing range [mm] 1
- Housing tubular
- Current consumption [mA] 15; (24 V)
- Overload protection yes
- Reverse polarity protection yes
- Type of short-circuit protection yes (non-latching)
- Protection class III
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
