IT5042 ifm Electronic Electronic Components
Part#:IT5042
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

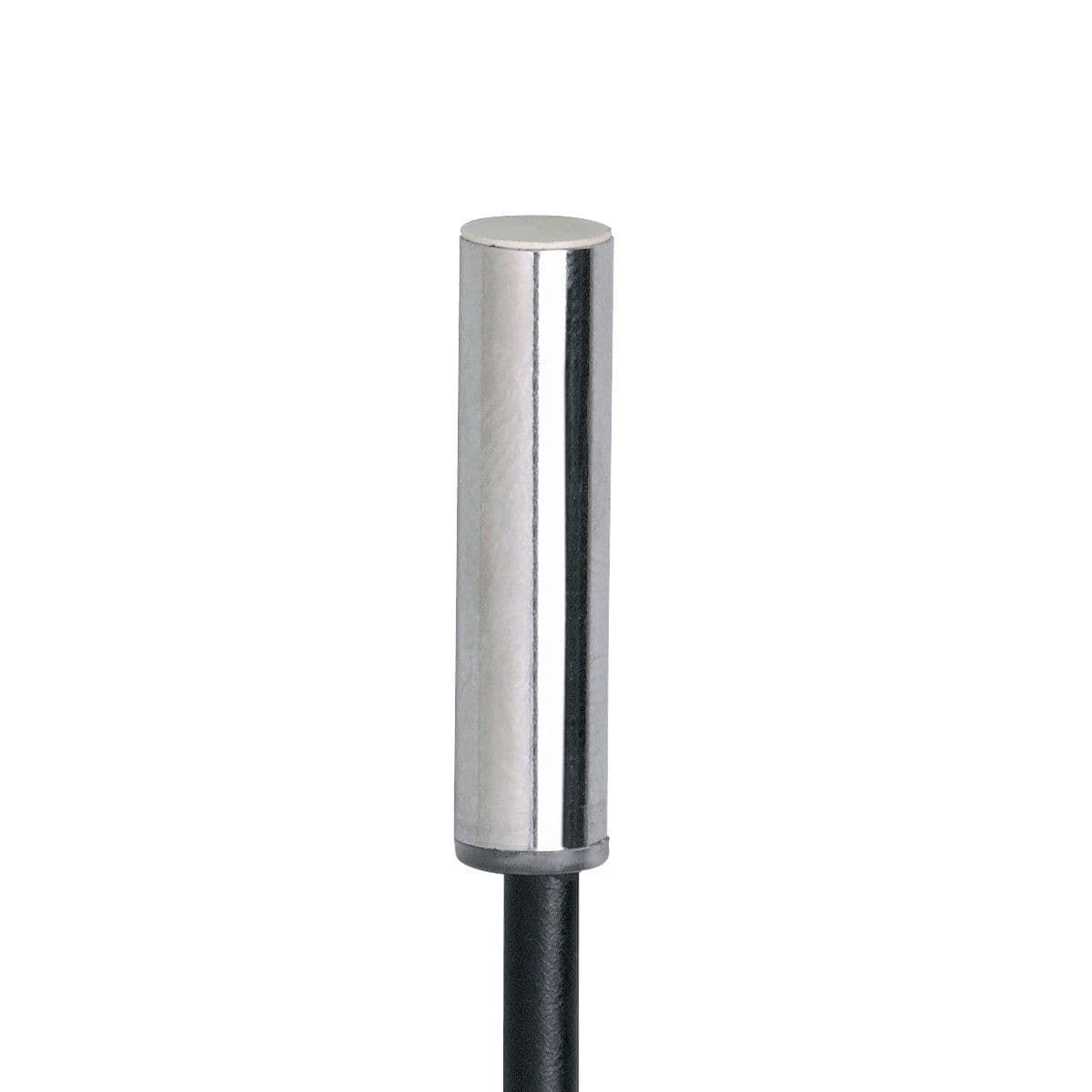

Inductive sensor, Particularly short housing, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2, Housing: tubular, Dimensions [mm]: Ø 6.5 / L = 27
Product Details
- Max. voltage drop switching output DC [V] 2.5
- Protection class III
- Type of short-circuit protection yes (non-latching)
- Dimensions [mm] Ø 6.5 / L = 27
- Electrical design PNP
- Output function normally open
- Operating voltage [V] 10...30 DC
- Switching frequency DC [Hz] 1500
- Sensing range [mm] 2
- Current consumption [mA] < 15
- Overload protection yes
- Reverse polarity protection yes
- Short-circuit protection yes
- Housing tubular
- Permanent current rating of switching output DC [mA] 100
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
