PK6521 ifm Electronic Electronic Components

Name: PK6521
Brand: ifm Electronic

Part#:PK6521

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

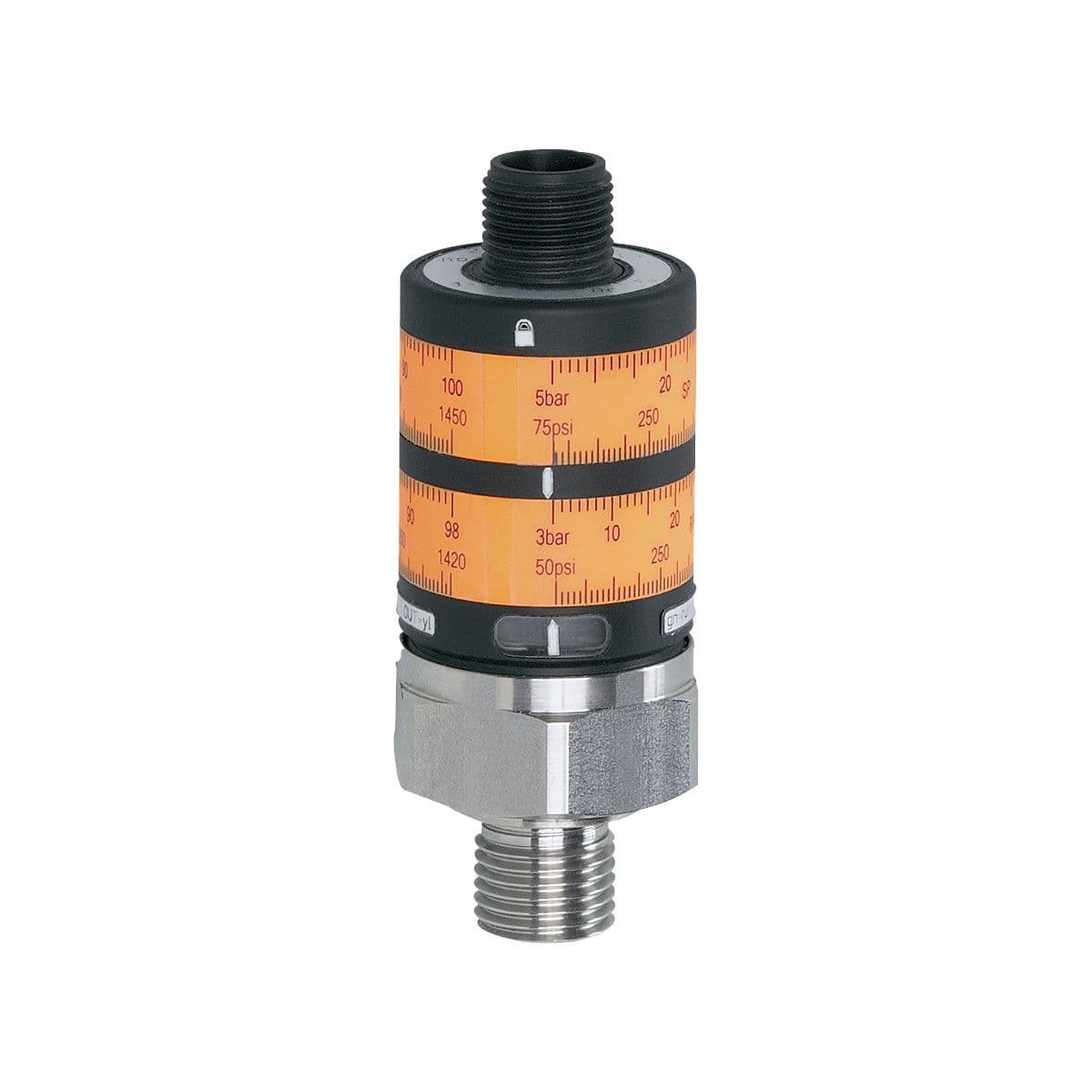

Pressure switch with intuitive switch point setting, Simple switch point setting by means of two setting rings allowing optimum reading, Output signal: switching signal, Measuring range: 0...250 bar 0...3625 psi, Process connection: threaded connection G

Product Details

Number of digital outputs
2
Switching frequency DC [Hz]
100
Max. voltage drop switching output DC [V]
2
Output function
complementary
Overload protection
yes
Type of short-circuit protection
yes (non-latching)
Short-circuit protection
yes
Permanent current rating of switching output DC [mA]
500
Electrical design
PNP
Reverse polarity protection
yes
Protection class
III
Number of inputs and outputs
Number of digital outputs: 2
Total number of outputs
2
Operating voltage [V]
9.6...32 DC
Min. insulation resistance [MΩ]
100; (500 V DC)
Current consumption [mA]
< 25
Medium temperature [°C]
-25...80
Pressure rating
400 bar 5800 psi
Type of pressure
relative pressure
Application
for industrial applications

Min. bursting pressure

1000 bar 14500 psi

Media

liquids and gases

Process connection

threaded connection G 1/4 external thread Internal thread:M5

Output signal

switching signal

Measuring range

0...250 bar 0...3625 psi

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
