PK6524 ifm Electronic Electronic Components

Name: PK6524
Brand: ifm Electronic

Part#:PK6524

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

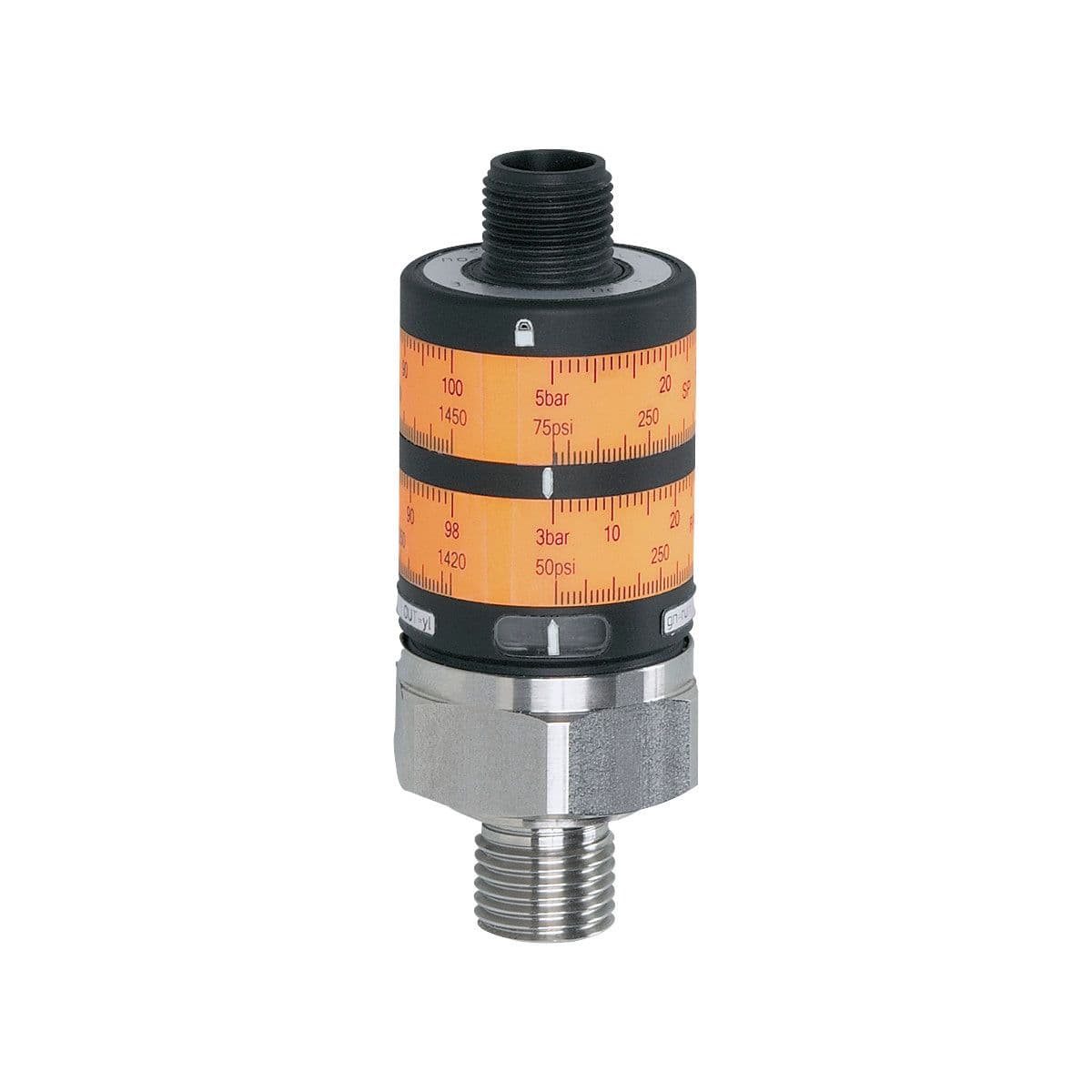

Pressure switch with intuitive switch point setting, Simple switch point setting by means of two setting rings allowing optimum reading, Output signal: switching signal, Measuring range: 0...10 bar 0...145 psi, Process connection: threaded connection G 1/

Product Details

Operating voltage [V]
9.6...32 DC
Permanent current rating of switching output DC [mA]
500
Measuring range
0...10 bar 0...145 psi
Current consumption [mA]
< 25
Short-circuit protection
yes
Process connection
threaded connection G 1/4 external thread Internal thread:M5
Medium temperature [°C]
-25...80
Protection class
III
Overload protection
yes
MAWP (for applications according to CRN)
25 bar 362 psi
Output signal
switching signal
Switching frequency DC [Hz]
100
Media
liquids and gases
Min. insulation resistance [MΩ]
100; (500 V DC)
Max. voltage drop switching output DC [V]
2
Application
for industrial applications
Number of inputs and outputs
Number of digital outputs: 2
Output function
complementary
Min. bursting pressure
300 bar 4350 psi
Electrical design
PNP

Type of short-circuit protection

yes (non-latching)

Type of pressure

relative pressure

Total number of outputs

Number of digital outputs

Pressure rating

25 bar 362 psi

Reverse polarity protection

yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PK6524 Related Documents

CAD_SAT_500_0021.ZIP-1631072448429.zip CAD_STP_500_0021.ZIP-1631072448434.zip PDF data sheet-1631072448426.pdf CAD_DWG_500_0021.ZIP-1631072448424.zip CAD_DXF_500_0021.ZIP-1631072448430.zip

Manufacturer warranty
