PK6530 ifm Electronic Electronic Components
Part#:PK6530
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

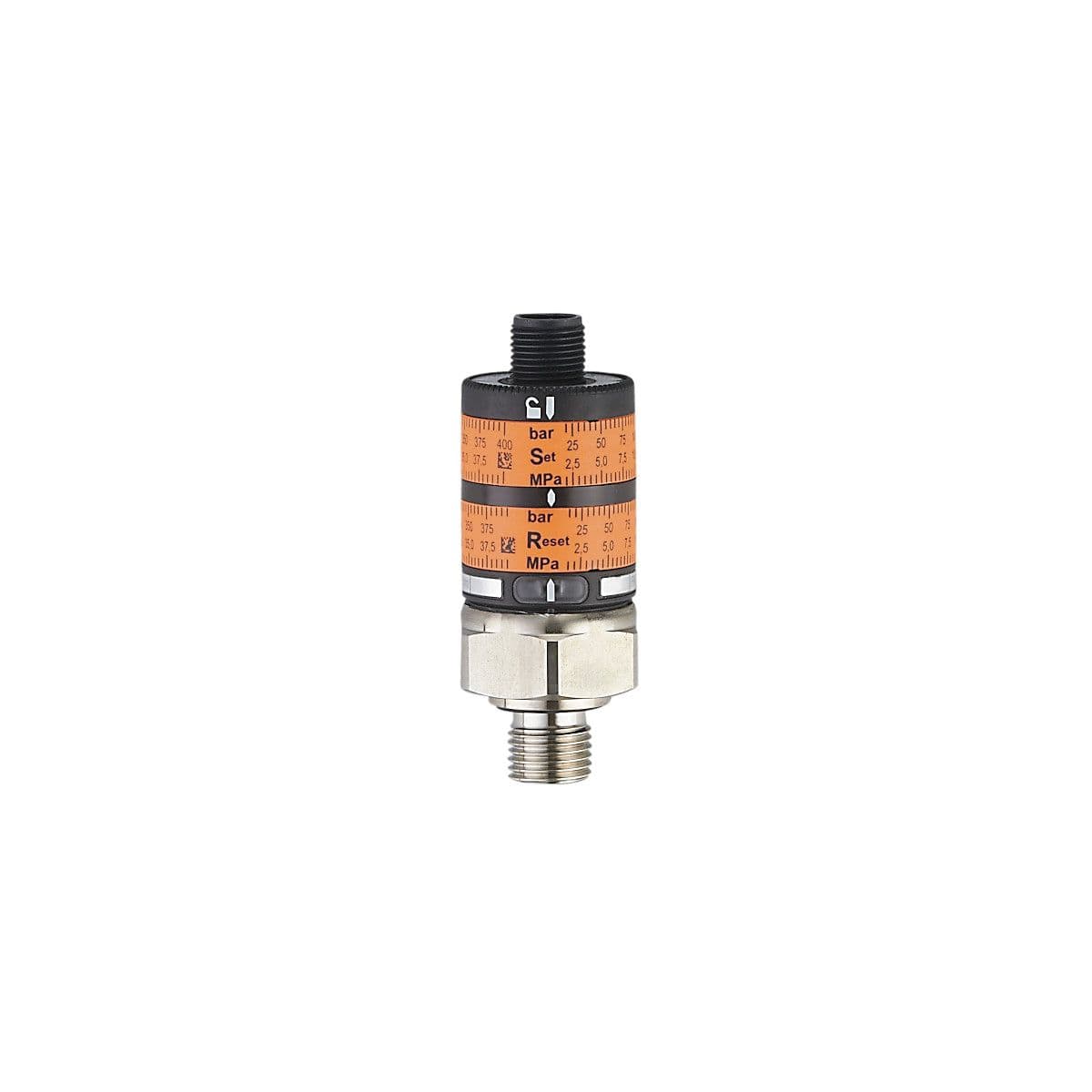

Pressure switch with intuitive switch point setting, Simple switch point setting by means of two setting rings allowing optimum reading, Output signal: switching signal, Measuring range: 0...400 bar 0...40 MPa, Process connection: threaded connection G 1/
Product Details
- Number of digital outputs 2
- Current consumption [mA] < 25
- Measuring range 0...400 bar 0...40 MPa
- Switching frequency DC [Hz] 100
- Overload protection yes
- Max. voltage drop switching output DC [V] 2
- Permanent current rating of switching output DC [mA] 500
- Short-circuit protection yes
- Type of short-circuit protection yes (non-latching)
- Output function complementary
- Electrical design PNP
- Total number of outputs 2
- Number of inputs and outputs Number of digital outputs: 2
- Protection class III
- Reverse polarity protection yes
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Medium temperature [°C] -25...80
- Operating voltage [V] 9.6...32 DC
- Type of pressure relative pressure
- Application for industrial applications
- Process connection threaded connection G 1/4 external thread Internal thread:M5
- Pressure rating 600 bar 60 Mpa
- Output signal switching signal
- Min. bursting pressure 1600 bar 160 MPa
- Media liquids and gases
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
