PM1706 ifm Electronic Electronic Components
Part#:PM1706
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

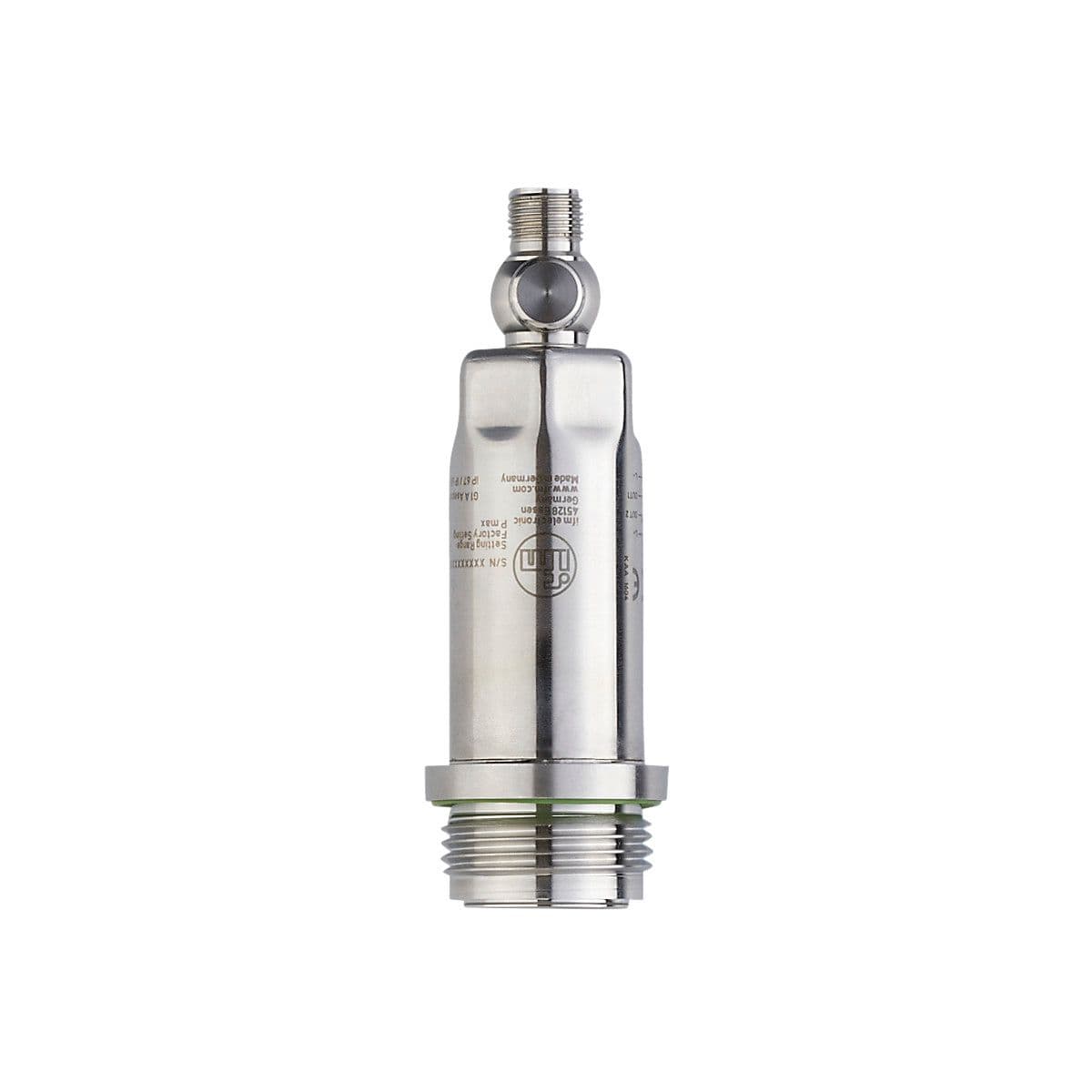

Electronic pressure sensor, Robust stainless steel housing for use in the food and beverage industry, Output signal: analog signal; IO-Link; (configurable), Measuring range: -0.125...2.5 bar -125...2500 mbar -1.82...36.26 psi -12.5...250 kPa, Process conn
Product Details
- Number of analog outputs 1
- Process connection threaded connection G 1 external thread Aseptoflex Vario
- Power-on delay time [s] 0.5
- Short-circuit proof yes
- Application flush mountable for the food and beverage industry
- MAWP (for applications according to CRN) [bar] 20
- Protection class III
- Medium temperature [°C] -25...125; (150 max. 1h)
- Reverse polarity protection yes
- Number of inputs and outputs Number of analog outputs: 1
- Temperature monitoring no
- Operating voltage [V] 18...30 DC
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Media viscous media and liquids with suspended particles; liquids and gases
- No dead space yes
- Integrated watchdog yes
- Measuring element ceramic-capacitive pressure measuring cell
- Type of pressure relative pressure
- Total number of outputs 2
- Output signal analog signal; IO-Link; (configurable)
- Current consumption [mA] < 45
- Max. load [Ω] 700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
- Min. bursting pressure 50000 mbar 725 psi 5000 kPa
- Measuring range -0.125...2.5 bar -125...2500 mbar -1.82...36.26 psi -12.5...250 kPa
- Vacuum resistance [mbar] -1000
- Overload protection yes
- Analog current output [mA] 4...20; (scalable)
- System gold-plated contacts
- Pressure rating 20000 mbar 290 psi 2000 kPa
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
