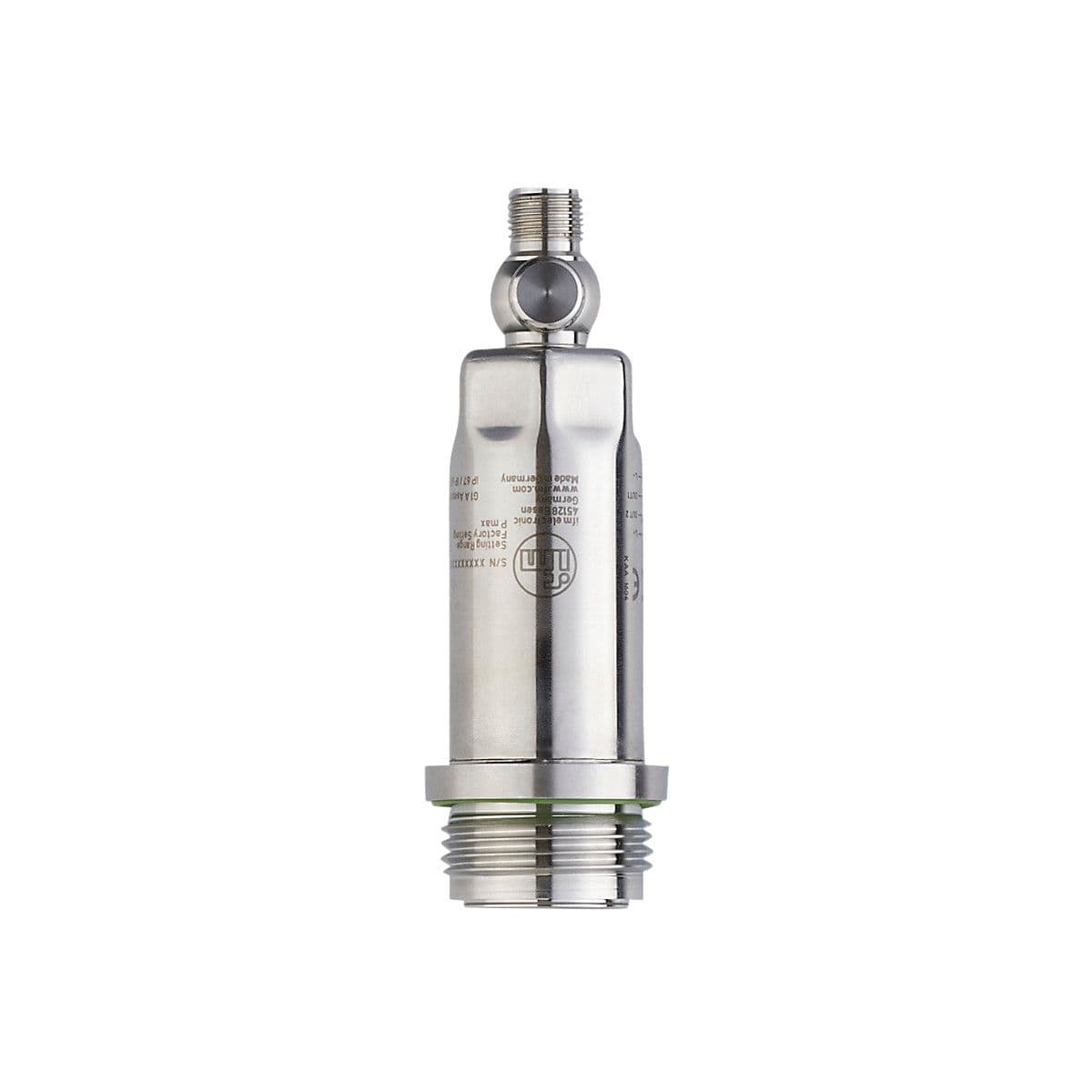

PM1707 ifm Electronic Electronic Components

Product Details

• Media
  viscous media and liquids with suspended particles; liquids and gases
• Operating voltage [V]
  18...30 DC
• Number of inputs and outputs
  Number of analog outputs: 1
• Process connection
  threaded connection G 1 external thread Aseptoflex Vario
• Vacuum resistance [mbar]
  -1000
• Type of pressure
  relative pressure
• Total number of outputs
  2
• Temperature monitoring
  no
• Application
  flush mountable for the food and beverage industry
• Min. bursting pressure
  30000 mbar 435 psi 3000 kPa
• MAWP (for applications according to CRN) [bar]
  10
• Short-circuit proof
  yes
• Output signal
  analog signal; IO-Link; (configurable)
• Number of analog outputs
  1
• Pressure rating
  10000 mbar 145 psi 1000 kPa
• Integrated watchdog
  yes
• Measuring range
  -0.05...1 bar -50...1000 mbar -0.73...14.5 psi -5...100 kPa
• Protection class
  III
• Power-on delay time [s]
  0.5
• No dead space
  yes
Overload protection
yes
Medium temperature [°C]
-25...125; (150 max. 1h)
System
gold-plated contacts
Current consumption [mA]
3.5...21.5
Analog current output [mA]
4...20; (scalable)
Measuring element
ceramic-capacitive pressure measuring cell
Min. insulation resistance [MΩ]
100; (500 V DC)
Reverse polarity protection
yes
Max. load [Ω]
700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
